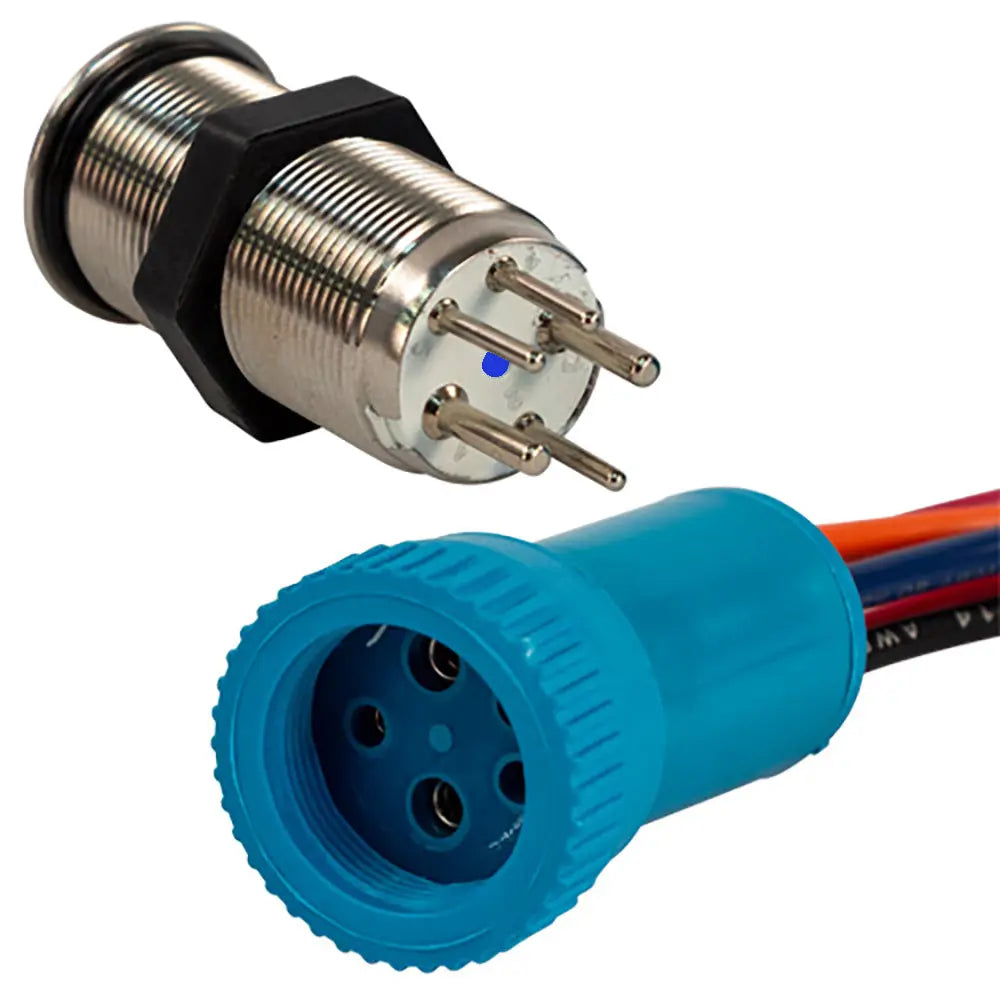

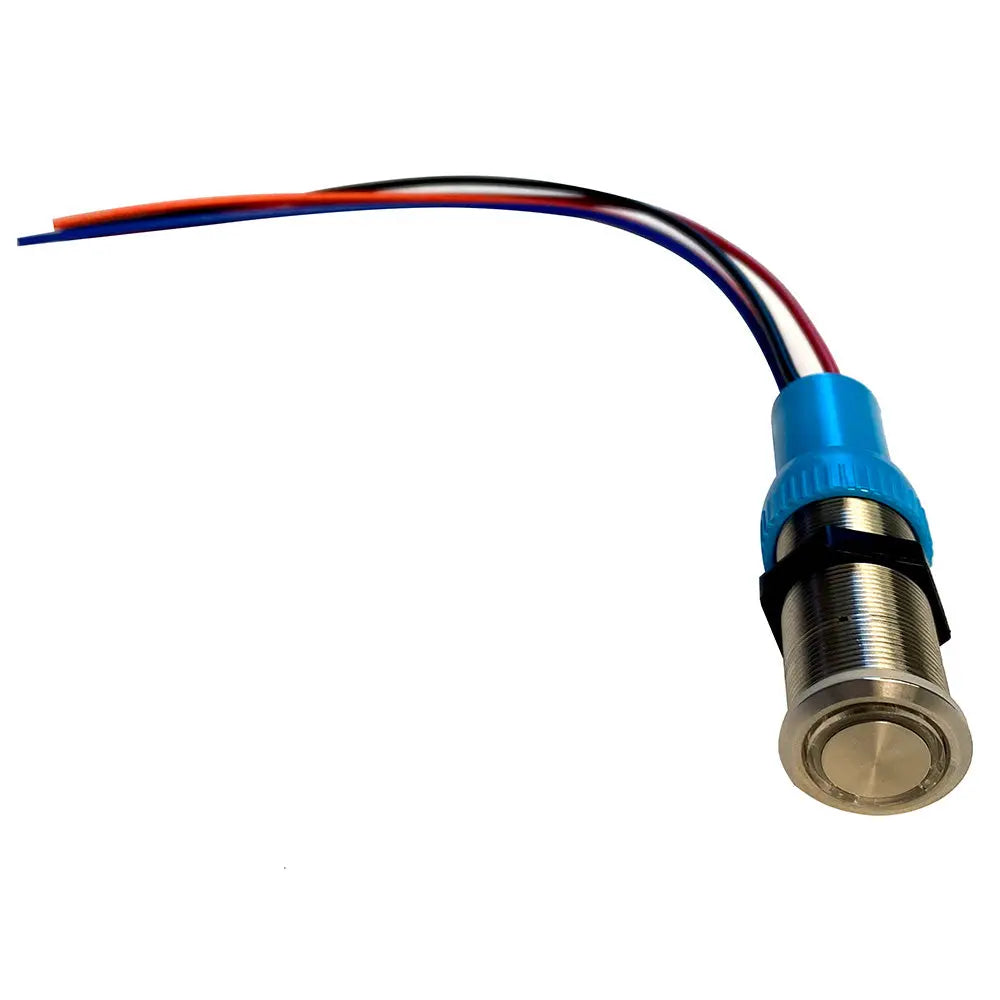

Bluewater 19mm Push Button Switch with Blue/Green/Red LEDs - Off/On/On Contact - Waterproof and Durable

19mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 4' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/On/On" standard contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-On-On (standard contact)
• Off/On: Blue/green
• 2nd On: Red
• Rear Mark Page: Blue dot
• Switch Rating: 15A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or equipment dashboard with the Bluewater 19mm Push Button Switch, part number 9057-3113-4. Crafted from stainless steel, this switch combines durability with modern aesthetics, featuring a sleek, stainless-steel plated body that enhances the overall look of any control panel. Its robust construction ensures reliable operation even in harsh environments, supported by an IP69K waterproof rating achieved through a carefully designed body and gasket seal. This makes it suitable for demanding applications where water, dust, or debris exposure is a concern. The switch has a standard Off/On/On contact configuration, allowing for versatile control options, whether for auxiliary systems, lighting, or other electronic functions. At night or in low-light conditions, the integrated backlit LEDs provide excellent visibility. The blue LED indicates a default or standby state, while the red LED clearly signals active or engaged status, ensuring users can quickly and easily identify the switch's current position. The switch features a 4-foot lead for flexible installation and wiring, simplifying setup processes. The rated electrical capacity of 15A at 12VDC or 24VDC makes it suitable for a wide range of automotive, marine, or industrial applications. With a mechanical life expectancy of 50,000 cycles and an electrical life of 10,000 cycles, this switch is built for long-term use and consistent performance. Installation requires drilling a 19mm hole into panels up to 6mm thick, connecting the color-coded contacts for the switch function, and wiring the LEDs accordingly. Whether for custom vehicle builds or machinery control panels, the Bluewater 19mm Push Button Switch offers a combination of style, reliability, and ease of use that enhances any control interface.

Features:

• Stainless steel body for durability and corrosion resistance

• Waterproof IP69K rated design with gasket sealing

• Backlit LEDs with blue and red illumination for high visibility

• Standard Off/On/On contact configuration for versatile control

• Includes 4-foot wiring lead for flexible installation

• Rated for 15A at 12VDC or 24VDC, suitable for various applications

• Long mechanical and electrical life for reliable operation

• Easy installation through a 19mm mounting hole in panels up to 6mm thick
