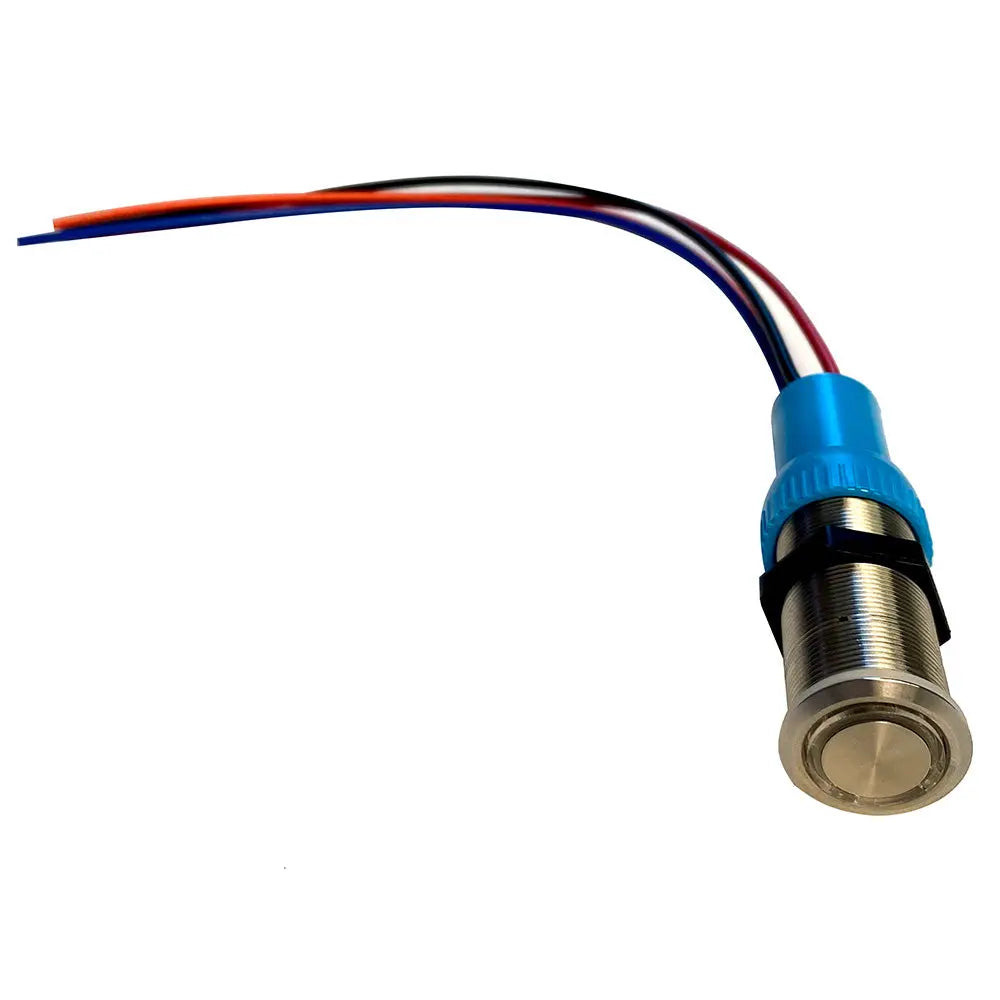

Bluewater 19mm Push Button Switch with Blue/Red LED and Waterproof IP69K Rating

19mm Push Button Switch - Off/On Contact - Blue/Red LED - 4' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a standard "Off/On" contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-On (standard contact)
• Off/On: Blue/red
• Rear Mark Page: Red dot
• Switch Rating: 15A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

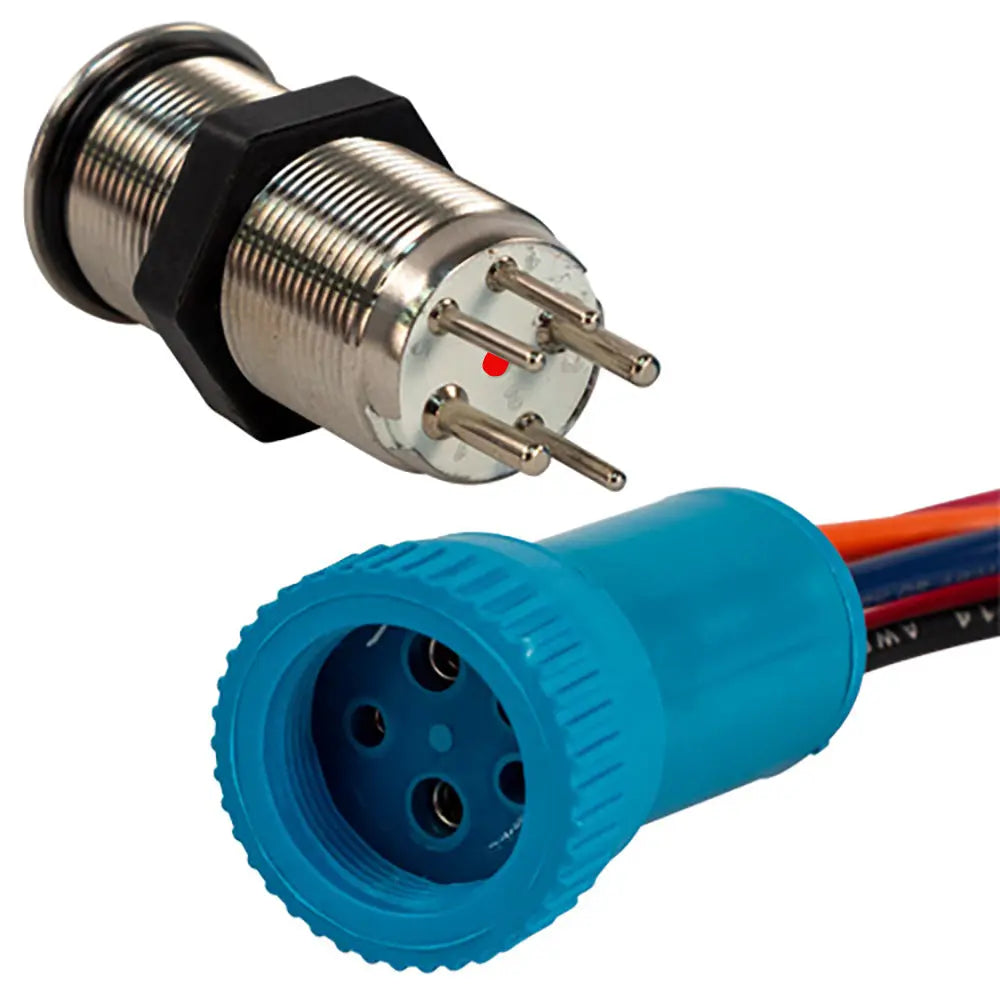

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or equipment dashboard with the Bluewater 19mm push button switch, featuring a sleek stainless-steel body and modern design. This switch offers a standard Off/On contact configuration, making it suitable for a wide range of applications where reliable control is essential. The durable stainless steel construction ensures longevity and resistance to harsh environments, while the included gasket provides an IP69K waterproof rating, ideal for demanding conditions involving water, dust, or dirt exposure. At night, the switch is backlit with vibrant blue LED illumination, which switches to red when activated to clearly indicate the on state for user convenience and safety. The dual-color LED enhances visibility and provides instant visual feedback, ensuring users always know whether the circuit is active or not.

Features:

• 4-foot lead for flexible wiring options

• Off-On contact function for straightforward operation

• Blue and red LED backlighting for clear visibility at night

• Waterproof design with IP69K rating thanks to body and gasket construction

• Stainless steel material for durability and corrosion resistance

• Switch rated for 15A at 12VDC and 24VDC, suitable for various electrical loads

• High mechanical lifespan of 50,000 cycles and electrical lifespan of 10,000 cycles

• Easy installation with a simple 19mm hole cutout in panels up to 0.24 inches thick

• Color-coded contacts for safe and efficient wiring connections
