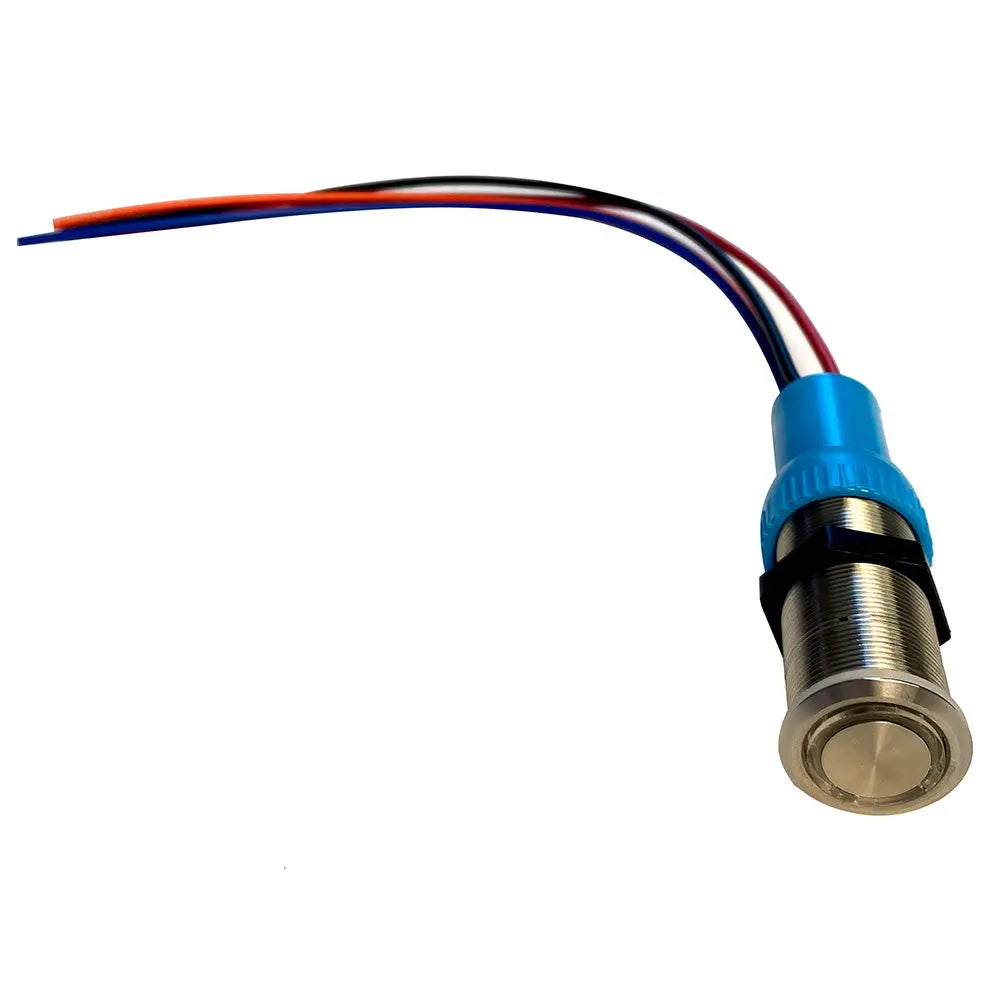

Bluewater 19mm Push Button Switch with Blue/Red LED Backlighting and Waterproof IP69K Rating

19mm Push Button Switch - Off/On Contact - Blue/Red LED - 1' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a standard "Off/On" contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-On (standard contact)
• Off/On: Blue/red
• Rear Mark Page: Red dot
• Switch Rating: 15A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

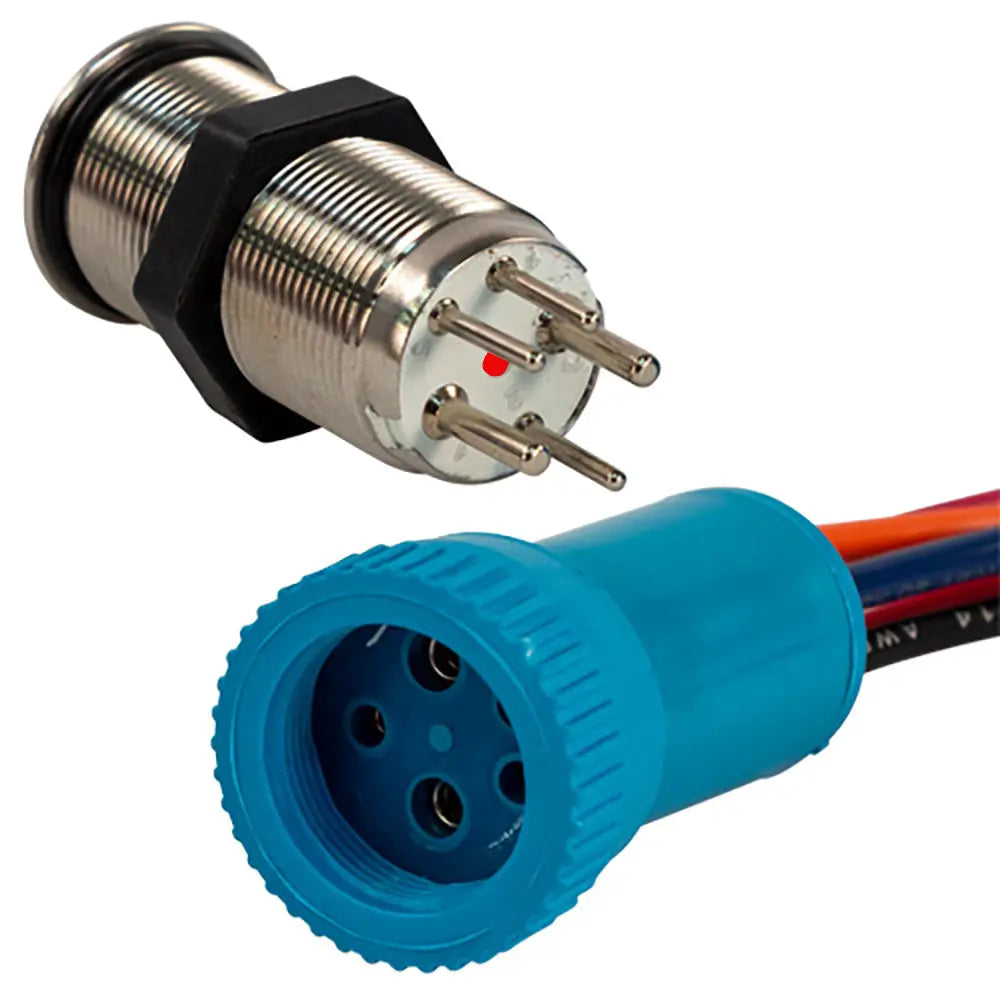

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or equipment dashboard with the Bluewater 19mm Push Button Switch, part number 9057-1113-1. Crafted from stainless steel, this durable switch features a sleek, modern design that enhances any control panel. Its waterproof rating of IP69K ensures reliable operation even in harsh environments, thanks to the integrated gasket and robust body construction. The switch's off/on function provides straightforward control, with a backlit blue LED indicating the off state and a red LED signaling when the device is on, ensuring clear visibility during nighttime or low-light conditions. The LED illumination not only improves usability but also adds a stylish accent to your dashboard setup. The switch is engineered for longevity, with a mechanical life expectancy of 50,000 cycles and an electrical life of 10,000 cycles, making it suitable for demanding applications. Installation is simple; drill a 19mm hole in materials up to ¼ inch thick, connect the three contacts according to the color-coded wiring instructions, and link the two LED contacts to complete the setup. The switch's standard off/on contact configuration and rated 15A at 12VDC or 24VDC make it versatile for various electrical systems. Whether for automotive, marine, or industrial uses, this push button switch offers durability, clear indicators, and an eye-catching design that enhances any control interface.

Features:

• Stainless steel body for durability and corrosion resistance

• Waterproof IP69K rating with gasket for reliable sealing in harsh conditions

• Backlit LED with blue and red illumination for enhanced visibility

• Off/On contact function with standard electrical configuration

• Rated for 15A at 12VDC or 24VDC for versatile electrical compatibility

• Simple installation through 19mm hole with included wiring instructions

• Long mechanical lifespan of 50,000 cycles ensures durability
