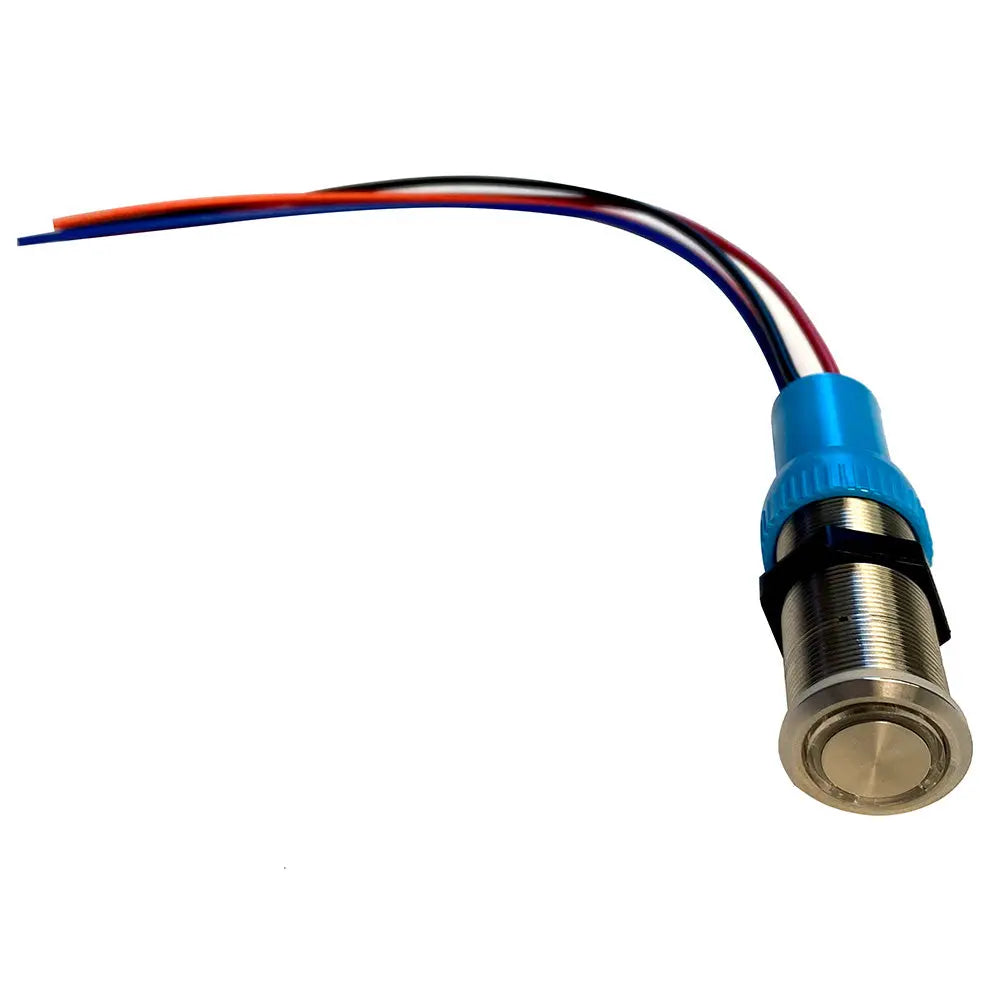

Bluewater 19mm Push Button Switch with Blue/Red LED - Off/(On) Momentary Contact, Waterproof, 4ft Lead

19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 4' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On)" momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4ft. lead

Specifications:

• Function: Off-(On) (momentary contact)
• Off/On: Blue/red
• Rear Mark Page: Green dot
• Switch Rating: 15A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

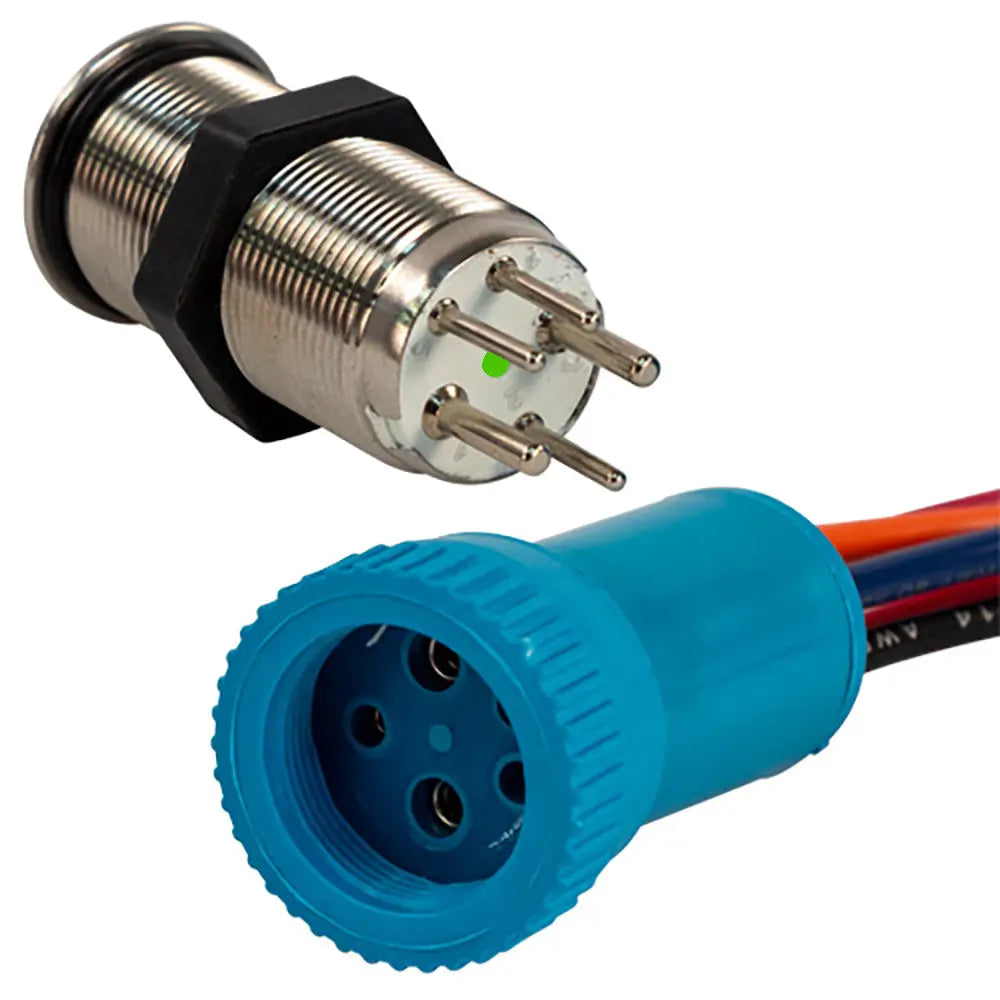

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your control panel with the Bluewater 19mm push button switch, designed to provide reliable performance and modern aesthetics. Crafted from stainless steel, this switch features a sleek, durable body that adds a professional touch to any dashboard or control interface. Its waterproof rating of IP69K ensures protection against dust, water, and high-pressure wash-downs, making it suitable for demanding environments such as industrial, automotive, or marine applications. The switch's body is complemented by an included gasket, securing a tight seal that maintains its waterproof integrity even in harsh conditions. The switch operates with a momentary contact function, meaning it only activates while pressed, which is ideal for functions requiring temporary engagement. When illuminated, the switch backlights with a vivid blue LED, providing excellent visibility in low-light conditions. Once activated, the LED changes to red, offering a clear visual indicator of its status. This color-coding helps prevent operational errors and enhances safety during nighttime or low-light use. The switch features a 4-foot lead, allowing flexible installation options without the need for extensive wiring. Easy to install, it requires drilling a 19mm hole in materials up to ¼ inch thick, connecting the three color-coded contacts for power, ground, and activation, alongside the two LED contacts. Rated at 15 amps at 12-24V DC, it delivers robust performance suitable for various control functions. Its mechanical life spans approximately 50,000 cycles, with an electrical life of 10,000 cycles, ensuring long-lasting operation in frequent-use applications. Whether used for auxiliary controls, emergency shutoffs, or custom dashboard setups, the Bluewater 19mm push button switch provides a reliable, visually appealing, and weatherproof solution that enhances both functionality and aesthetics of your control system.

Features:

• Material: Stainless steel construction for durability and corrosion resistance

• Waterproof Rating: IP69K for protection against dust, water, and high-pressure wash-downs

• Illumination: Blue LED backlight with red indicator when active for enhanced visibility

• Operation: Off/(On) momentary contact for temporary activation

• Lead Length: 4-foot wiring harness for flexible installation

• Rated Current: 15A at 12-24V DC, suitable for various control applications

• Mechanical Life: Approximately 50,000 activation cycles for long-term reliability

• Electrical Life: Up to 10,000 cycles ensuring consistent performance over time

• Installation: Requires drilling a 19mm hole in materials up to ¼ inch thick, with color-coded contacts for safe wiring
