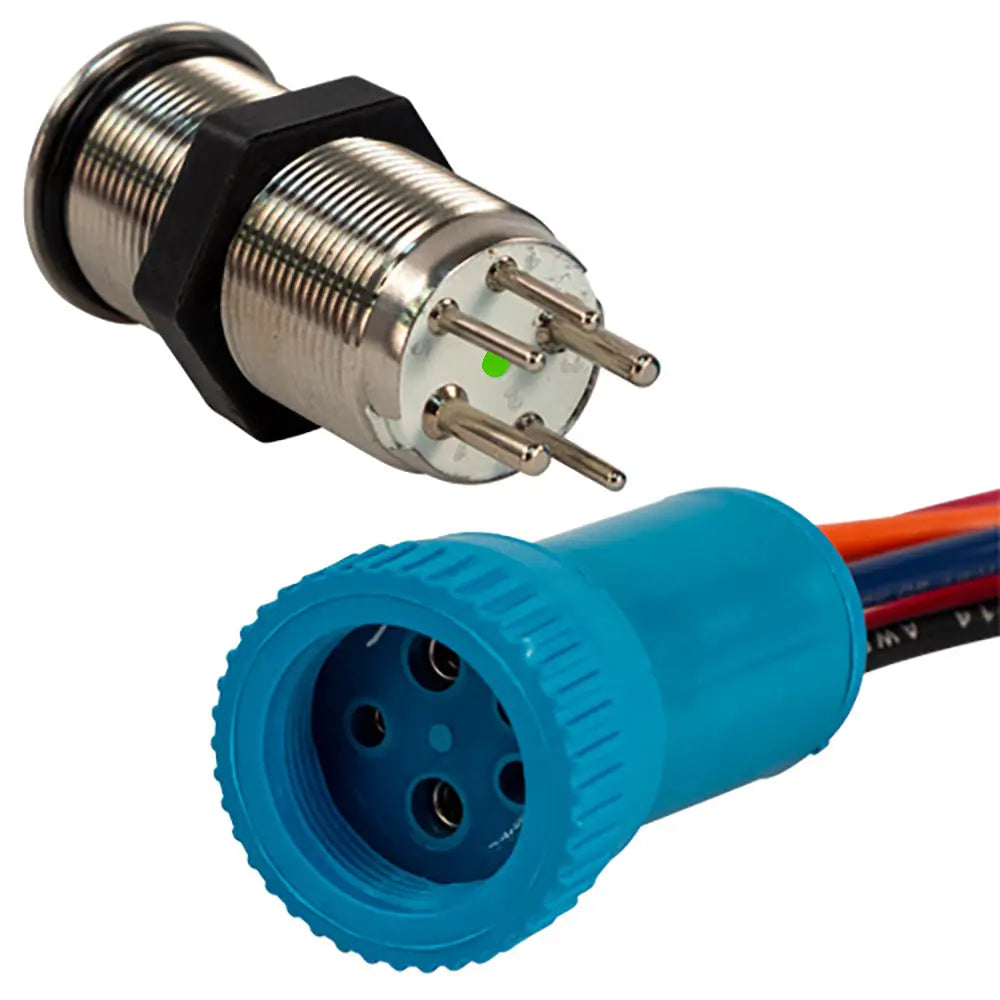

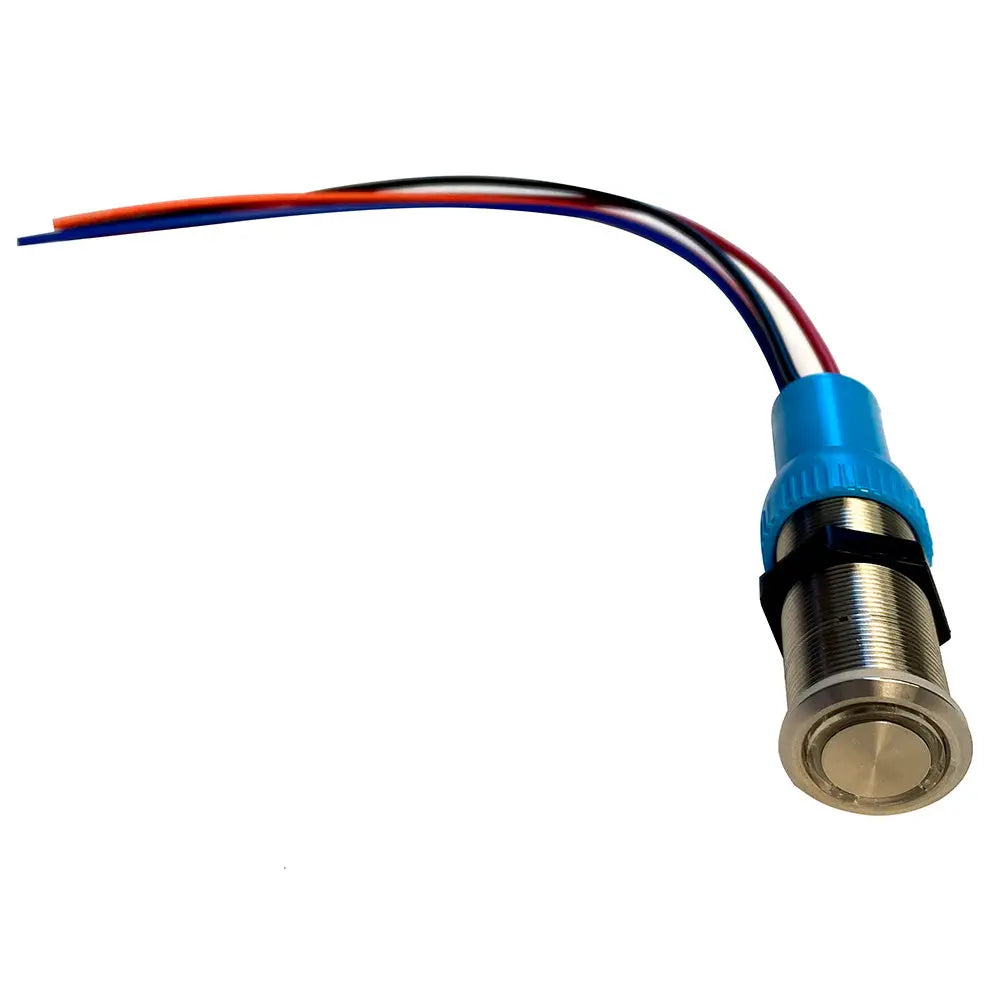

Bluewater 19mm Push Button Switch with Blue/Red LED - Off/(On) Momentary Contact, Waterproof IP69K Rated

19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On)" momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-(On) (momentary contact)
• Off/On: Blue/red
• Rear Mark Page: Green dot
• Switch Rating: 15A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

The Bluewater 19mm Push Button Switch is designed to enhance any dashboard with a sleek stainless-steel finish and modern appeal. Featuring a durable construction, this switch offers a waterproof rating of IP69K, making it suitable for demanding environments where moisture and dust resistance are essential. The switch's body design, combined with an included gasket, ensures a secure and sealed installation, providing reliable operation in diverse conditions. At night, the switch is backlit with a vivid blue LED that illuminates the switch for easy visibility. When activated, the LED changes to red, signaling that the function is engaged, thus reducing operational uncertainty. This visual feedback system helps improve safety and usability in low-light conditions, making it ideal for automotive, marine, and industrial applications.

Features:

• 1 foot lead for flexible wiring options

• Waterproof IP69K rating for high durability in harsh environments

• Backlit blue LED with red illumination for clear status indication

• Off/(On) momentary contact function for reliable switching

• Stainless steel body for corrosion resistance and longevity

• Mechanical life of 50,000 cycles and electrical life of 10,000 cycles for extended durability

• Easy installation through a 19mm hole in materials up to 1/4 inch thick

• Color-coded contacts for safe and straightforward wiring
