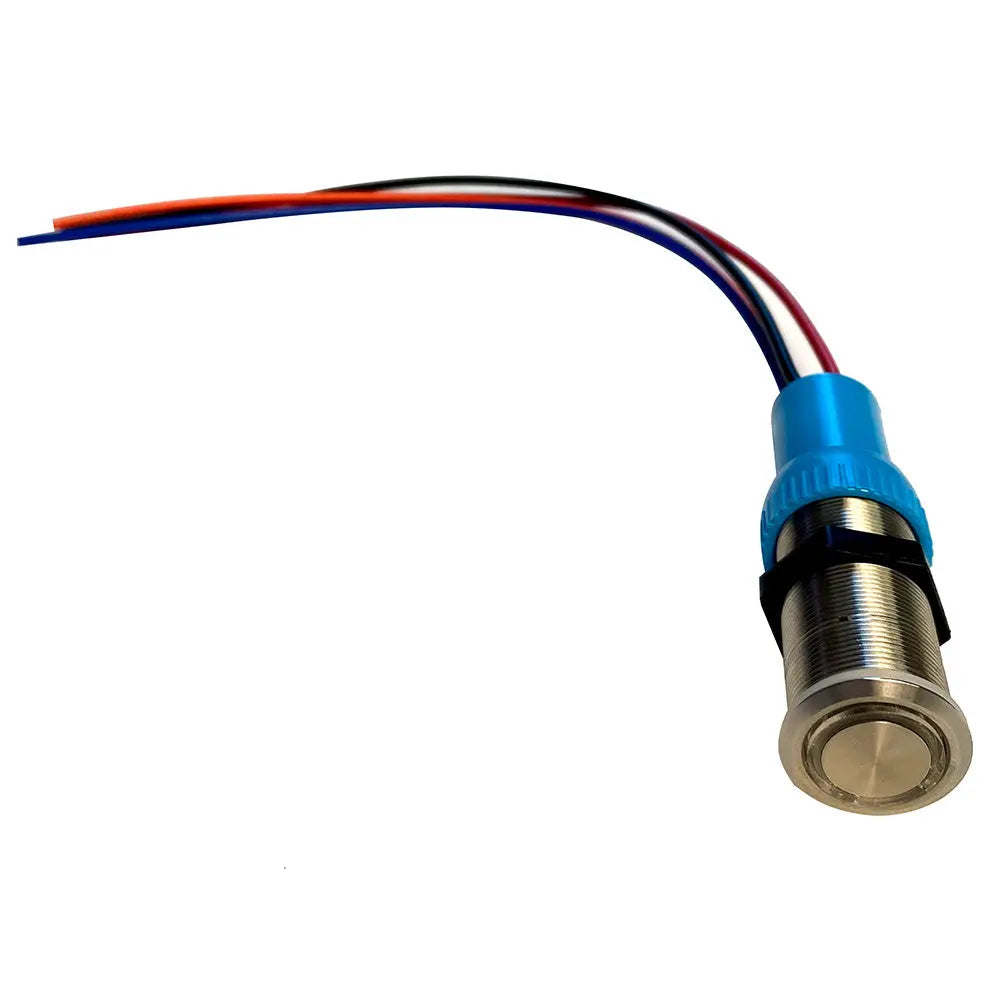

Bluewater 19mm Push Button Switch with Double Momentary Contact and LED Backlighting

19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 4' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On)/(On)" double momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-(On)-(On) (double momentary contact)
• Off/On: Blue/green
• 2nd On: Red
• Rear Mark Page: Green dot with a line
• Switch Rating: 15A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation

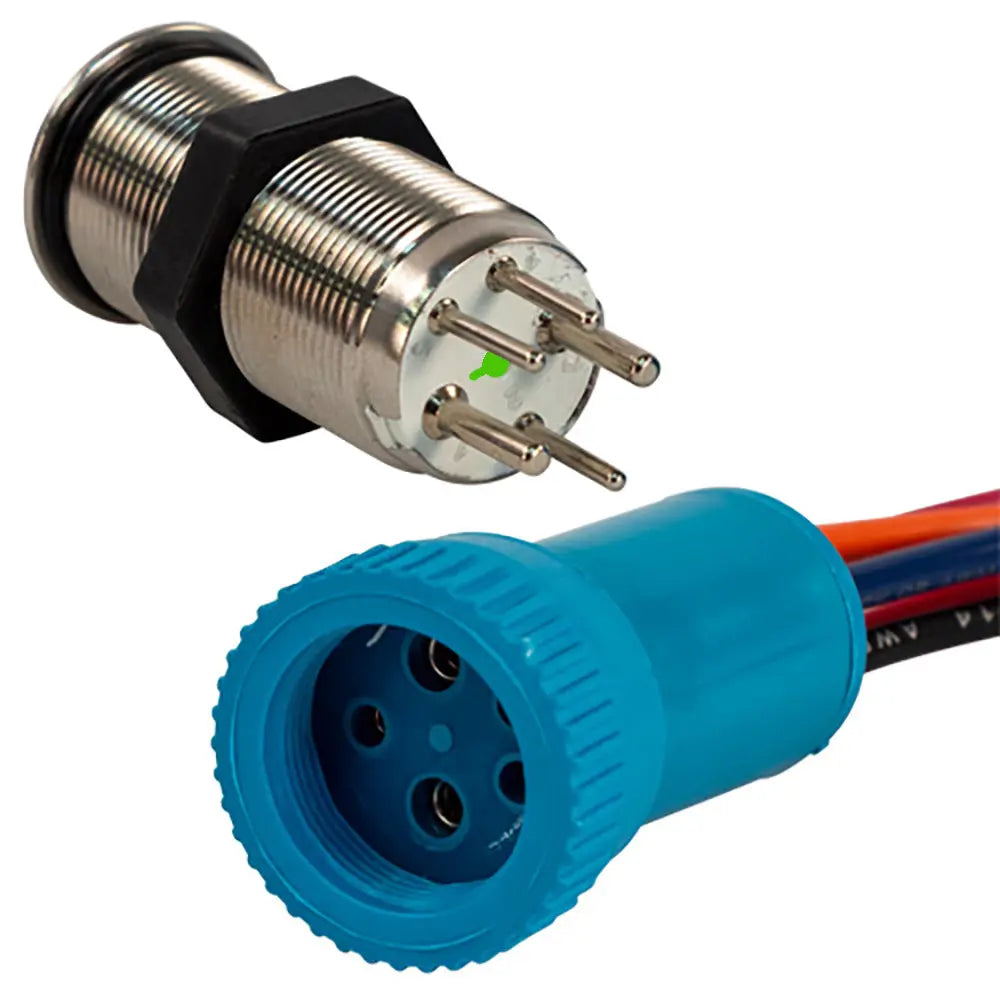

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or equipment dashboard with the Bluewater Part Number 9057-2123-4 19mm push button switch, designed for durability and modern aesthetics. Crafted with stainless steel, this switch offers a sleek, corrosion-resistant exterior that enhances the overall look while providing reliable performance in demanding environments. Its compact 19mm diameter makes it suitable for a variety of installation applications, easily fitting into standard panels or control panels up to 6mm thick. The included gasket ensures a waterproof rating of IP69K, making it ideal for use in harsh conditions where moisture resistance is critical. The switch features a triple-position Off/(On)/(On) configuration with double momentary contact, allowing for versatile control functions, including toggling between different states or activating multiple circuits with a single switch. The 4-foot lead provides flexible wiring options, simplifying installation and integration into existing systems. When illuminated, the switch backlights with a vivid blue LED during the off and first on position, changing to red when the second on position is active, providing clear visual status indicators that improve operational safety and awareness. The LED illumination enhances visibility in low-light conditions, ensuring users can easily identify switch states at a glance. This switch is rated for 15 amps at 12 or 24 volts DC, supporting a wide range of electrical loads. Its mechanical life span exceeds 50,000 cycles, with an electrical lifespan of approximately 10,000 cycles, ensuring long-lasting performance for demanding applications. Easy to install, simply drill a 19mm hole into your panel, connect the color-coded contacts, and secure the switch with the included gasket for a waterproof seal. Whether for automotive, marine, or industrial projects, this Bluewater push button switch provides a reliable, stylish control solution that meets high standards of durability and functionality.

Features:

• Stainless steel body construction for durability and corrosion resistance

• IP69K waterproof rating with gasket seal for harsh environments

• Triple-position Off/(On)/(On) switch with double momentary contact

• Blue, green, and red LED backlighting for clear status indication

• 4-foot wiring lead for flexible installation and wiring options

• Rated for 15A at 12V/24V DC for versatile electrical compatibility

• Mechanical lifespan exceeds 50,000 cycles, electrical lifespan around 10,000 cycles

• Easy installation with a 19mm hole, suitable for panels up to 6mm thick
