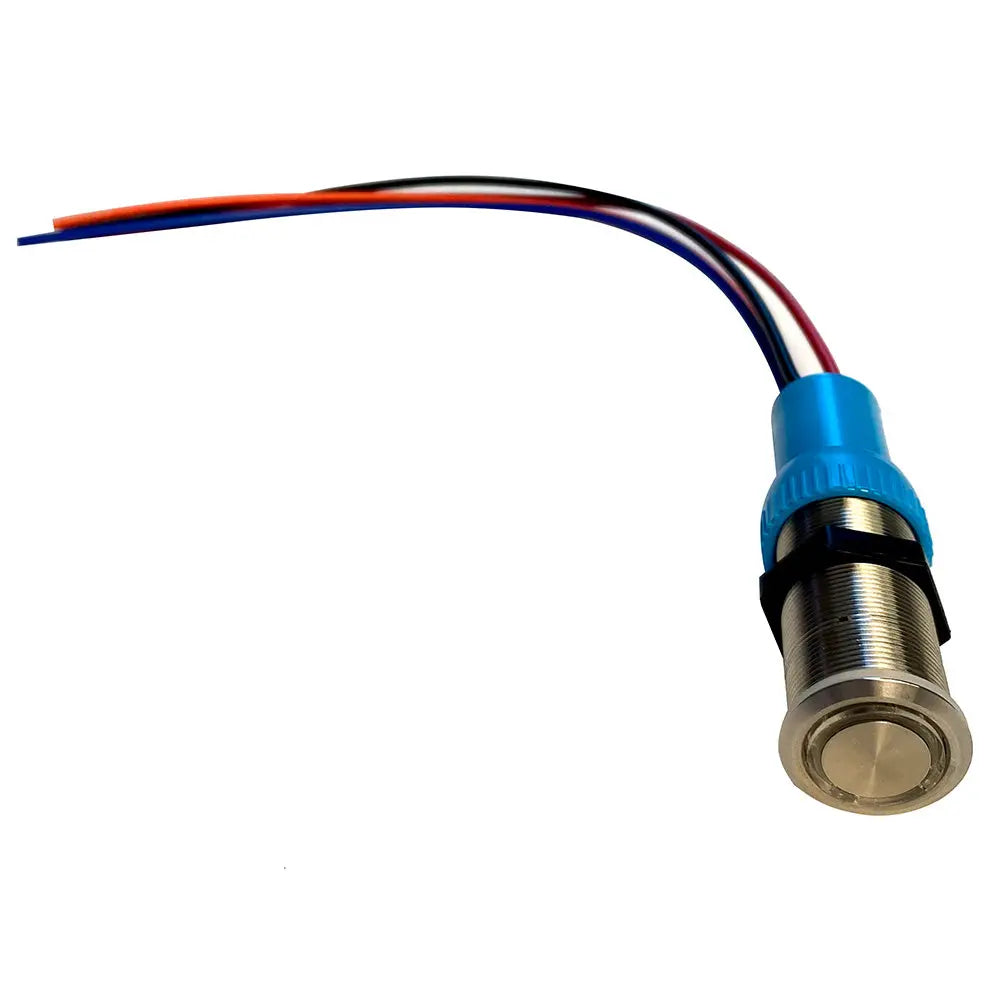

Bluewater 19mm Push Button Switch with Dual Momentary Contact and RGB LED Indicators

19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 1' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On)/(On)" double momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-(On)-(On) (double momentary contact)
• Off/On: Blue/green
• 2nd On: Red
• Rear Mark Page: Green dot with a line
• Switch Rating: 15A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

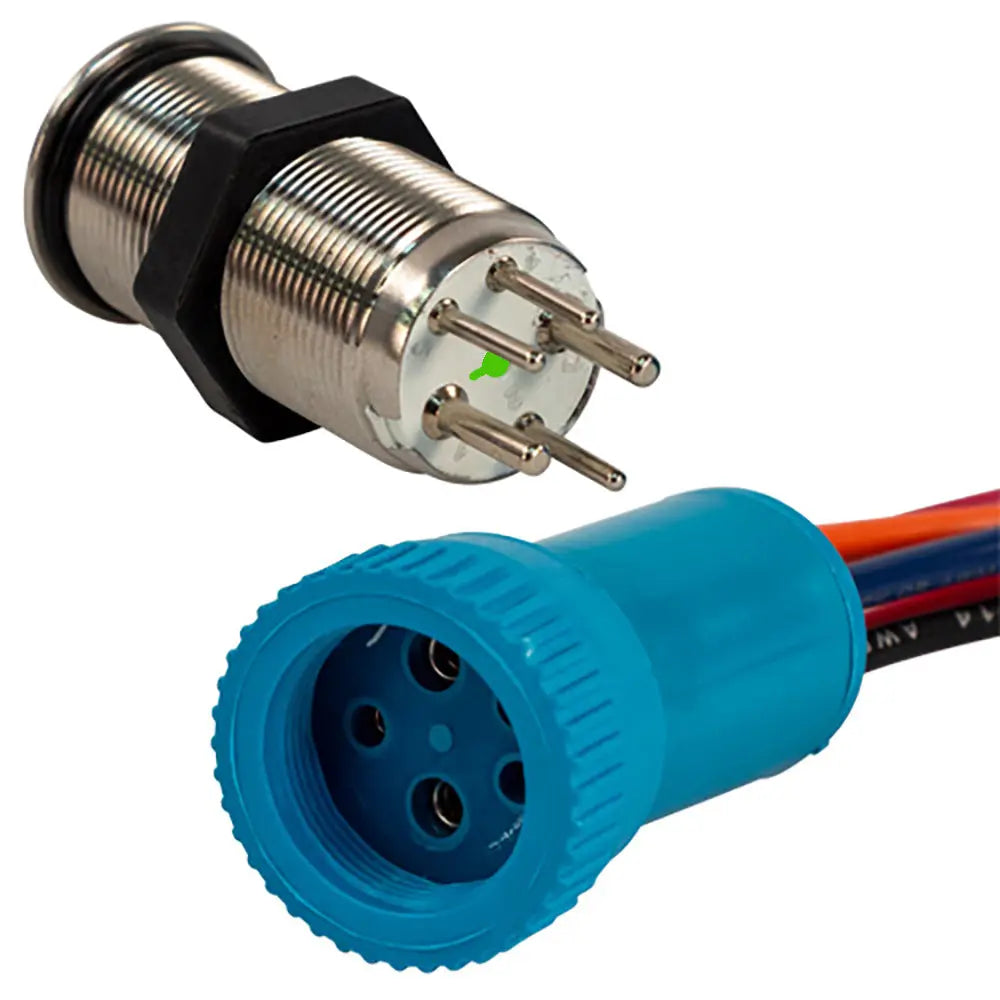

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

The Bluewater Part Number 9057-2123-1 is a versatile and durable push button switch designed to enhance the control panel of any vehicle or machinery. Crafted with a stainless steel body, this switch offers a sleek, modern appearance while providing robust performance in demanding environments. Its waterproof IP69K rating ensures reliable operation even in harsh conditions, thanks to the integrated gasket and high-quality construction. The switch features a 19mm diameter mounting hole, making installation straightforward in panels up to 6mm thick. Its illuminated RGB LEDs—blue for off, green for on, and red for active states—offer clear visual feedback, enhancing operational safety and convenience during nighttime use. The switch’s backlit LEDs are powered through two dedicated contacts, providing bright and consistent illumination, which improves visibility and user awareness in low-light settings. The switch's rated capacity of 15A at 12/24V DC makes it suitable for controlling a variety of electrical loads, from auxiliary devices to critical system functions. Designed for durability, it boasts a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, ensuring long-term reliability with minimal maintenance. Installation involves drilling a 19mm hole and connecting the three switch contacts, color-coded for safety, along with the two LED contacts. Whether upgrading an existing dashboard or installing in a new setup, this switch provides a seamless combination of style, function, and durability for demanding applications.

Features:

• 19mm mounting diameter for easy installation in panels up to 6mm thick

• Double momentary contact function: Off-(On)-(On) for versatile control options

• RGB LED backlighting with blue (Off), green (On), and red (Active) indicators for clear status visibility

• Waterproof rating of IP69K ensures reliable performance in harsh environments

• Stainless steel body offers corrosion resistance and a modern aesthetic

• Rated for 15A at 12V/24V DC, suitable for controlling various electrical loads

• Mechanical lifespan of 50,000 cycles and electrical lifespan of 10,000 cycles for durability

• Includes a 1-foot lead for straightforward wiring and installation
