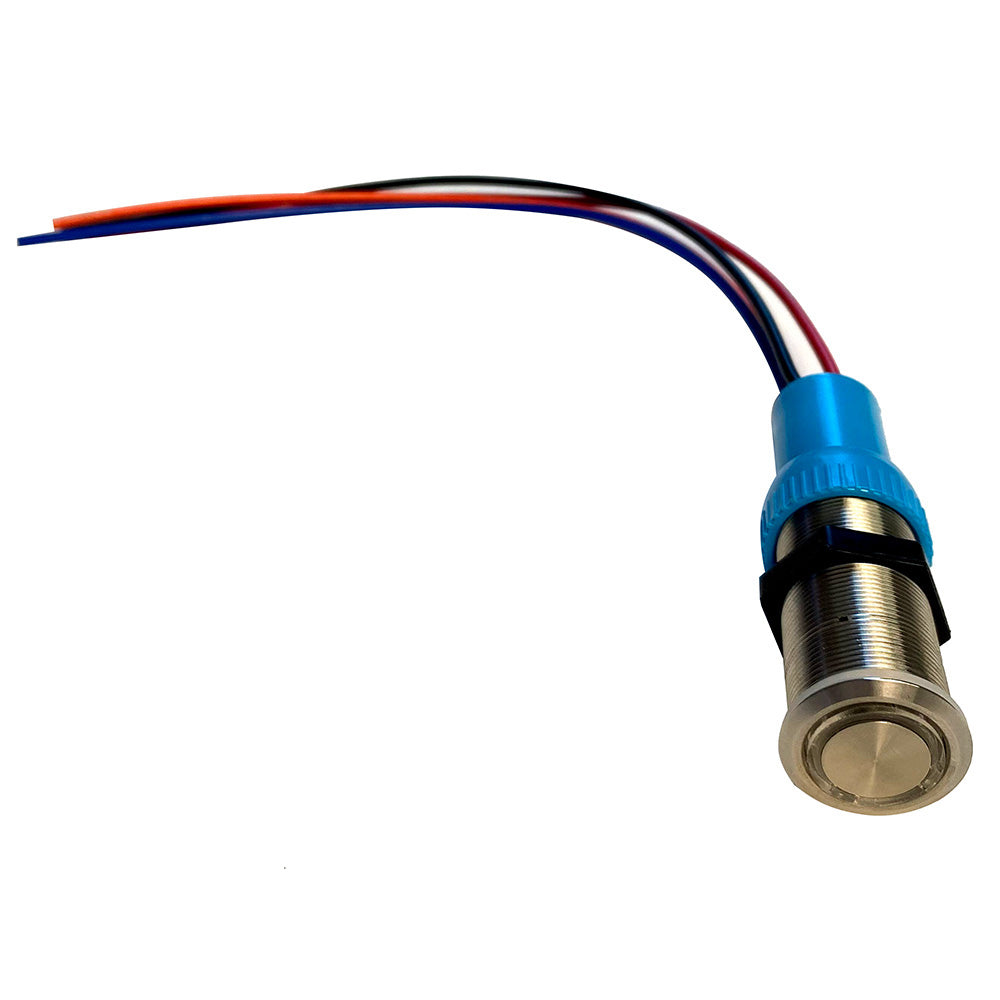

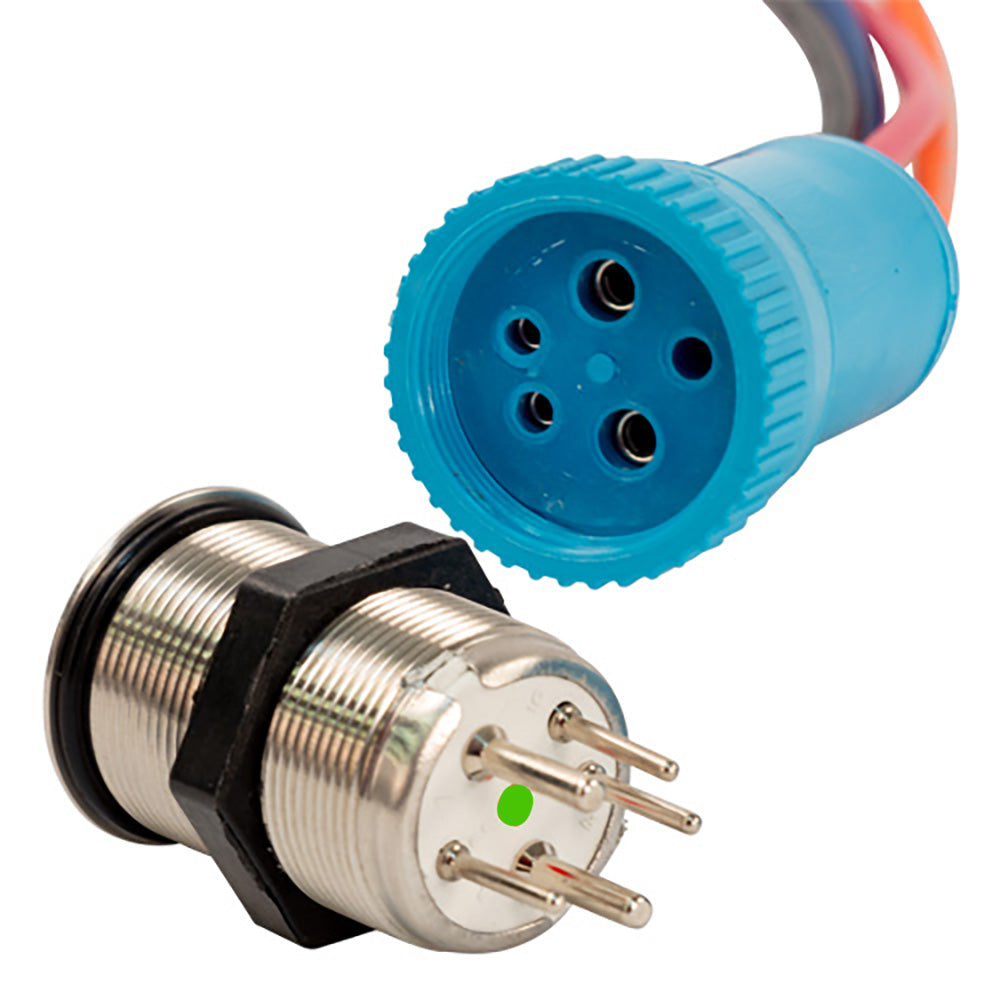

Bluewater 22mm Inrush Dimmer Switch - 20 Amp Control with Blue LED Backlighting

22mm Inrush Dimmer Switch

Easy to See Control

• Blue LED backlighting for night visibility
• LED shifts to bright red when activeinstant confirmation of pump or device status
• Fully detachable actuator for customization of style and function

Reliable Power Handling

• Rated for 20 amps on a single channel
• Rated for 10 amps per channel in dual-channel use
• Impact-resistant and designed for long-lasting performance

Features:

• Switch Rating: 20A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Material: Nickel Plated Brass/ Stainless Steel
• LED Color: Blue/Green/Red
• Dimmer: OFF Blue, 1st On Red, Rear Mark Page Green Dot

The Bluewater 22mm Inrush Dimmer Switch (Part Number 9059-3116) offers reliable power handling combined with user-friendly features for controlling pumps and devices. Designed for easy visibility and instant status confirmation, this switch features a blue LED backlight that illuminates in low-light conditions. When activated, the LED shifts to bright red, providing immediate visual confirmation of the device's operational status. The fully detachable actuator allows for customization, enabling users to select styles and functions that best suit their application. Constructed with durable nickel-plated brass and stainless steel, this switch is built for long-lasting performance and impact resistance. It is rated for 20 amps on a single channel and 10 amps per channel in dual-channel configurations, making it suitable for a variety of demanding applications. The switch contacts include options for single or dual configurations, with mechanical life expectancy of 50,000 cycles and electrical longevity of approximately 10,000 cycles. The Bluewater 22mm Inrush Dimmer Switch also features a clear LED color scheme—blue for off, red for on, and green for a rear mark page—ensuring straightforward operation. Its compact size and robust construction make it an ideal choice for controlling lighting, pumps, and other electrical devices in both marine and industrial environments.

Features:

• Switch Rating: 20A/12-24VDC for reliable power control

• Switch Contacts: Options include 1 NO, 1 NC or 2 NO, 2 NC for flexible wiring

• Mechanical Life: 50,000 cycles for durability

• Electrical Life: 10,000 cycles ensuring long-term use

• Material: Nickel Plated Brass and Stainless Steel for corrosion resistance

• LED Color: Blue, Green, Red for clear operational status indication

• Dimmer Indicators: Blue for Off, Red for On, Green Dot for rear mark page
