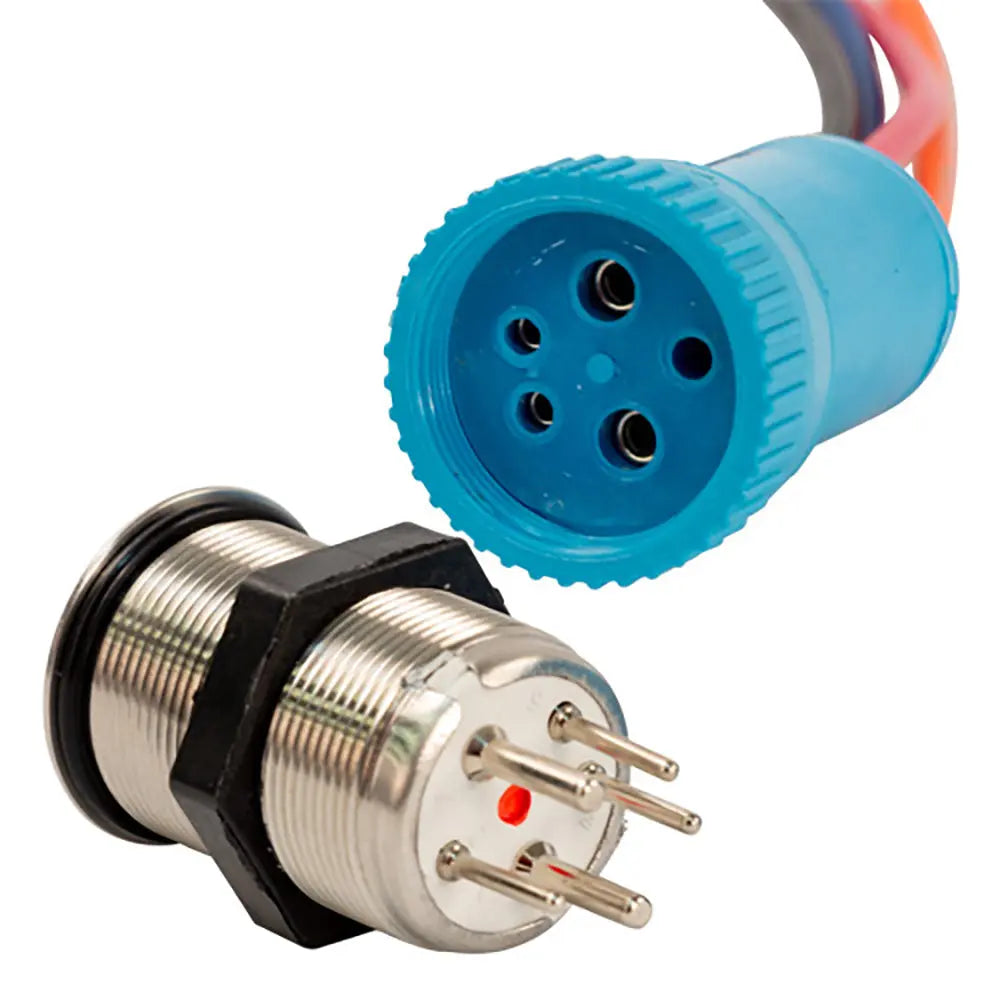

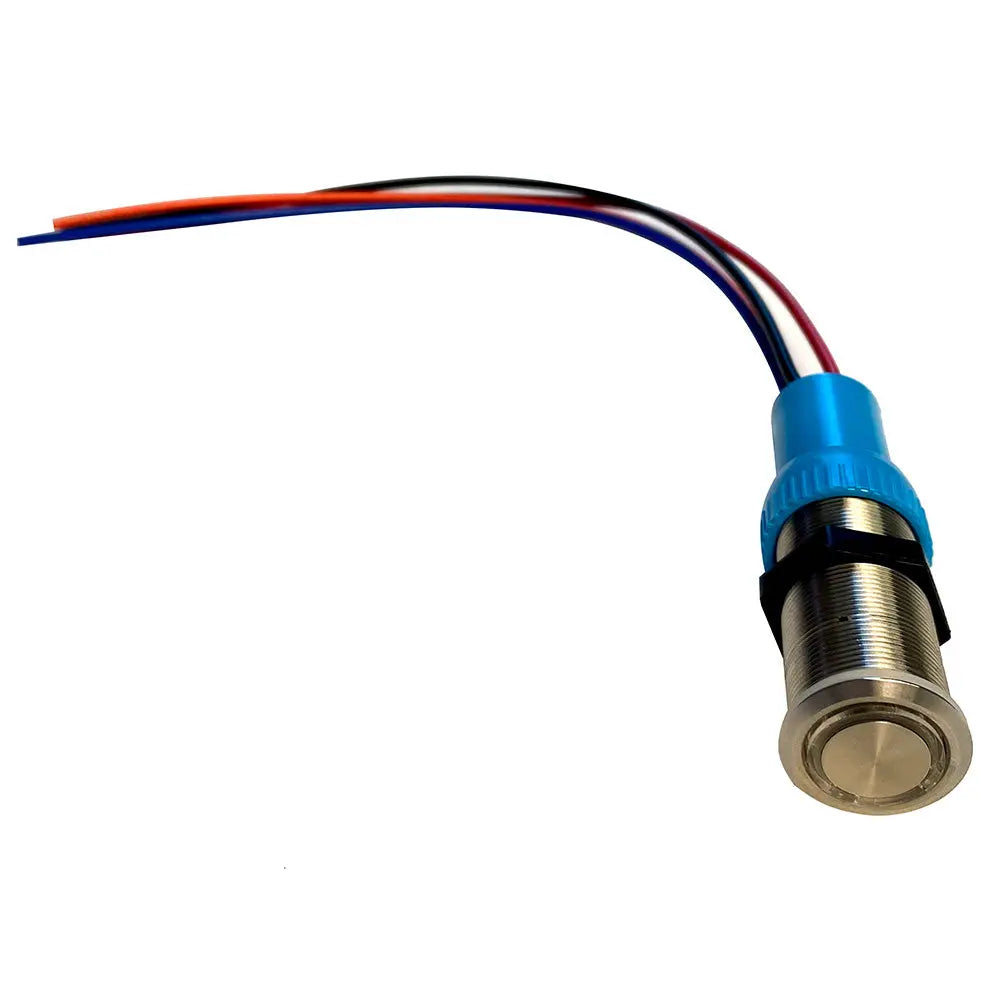

Bluewater 22mm Push Button Switch with Blue/Red LED and Waterproof IP69K Rating

22mm Push Button Switch - Off/On Contact - Blue/Red LED - 4 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a standard Off/On contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-On (standard contact)
• Off/On: Blue/red
• Rear Mark Page: Red dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

The Bluewater 9059-1113-4 22mm push button switch offers a sleek and modern upgrade for vehicle dashboards or control panels. Crafted from durable stainless steel, this switch features a waterproof IP69K rating, making it suitable for demanding environments where water resistance is essential. Its robust construction ensures reliable operation over an impressive mechanical life of 50,000 cycles and electrical life of 10,000 cycles, providing long-term performance for various applications. The switch's off/on function is clearly indicated by backlit blue and red LEDs, enhancing visibility in low-light conditions and providing immediate status recognition. The backlit LEDs change color to confirm the switch state, with blue signifying off and red indicating on, ensuring user confidence during operation. Installation is straightforward; simply drill a 22mm hole into materials up to 6mm thick, connect the three contacts according to the color-coded wiring diagram, and complete the setup by connecting the two LED contacts. This versatile switch is rated for 20A at 12V or 24V DC, making it suitable for a wide range of electrical systems. Whether you're customizing a vehicle, boat, or industrial control panel, the Bluewater 22mm push button switch provides a reliable, visually appealing, and easy-to-install solution that combines functionality with modern aesthetics.

Features:

• Stainless steel body for durability and corrosion resistance

• IP69K waterproof rating for reliable performance in wet environments

• Backlit LEDs with blue and red illumination for clear visibility and status indication

• Easy installation with a 22mm mounting hole and simple wiring connections

• Rated for 20A at 12V or 24V DC for versatile electrical use

• Mechanical lifespan of 50,000 cycles and electrical lifespan of 10,000 cycles for long-term reliability

• Includes gasket for a secure, waterproof seal during installation
