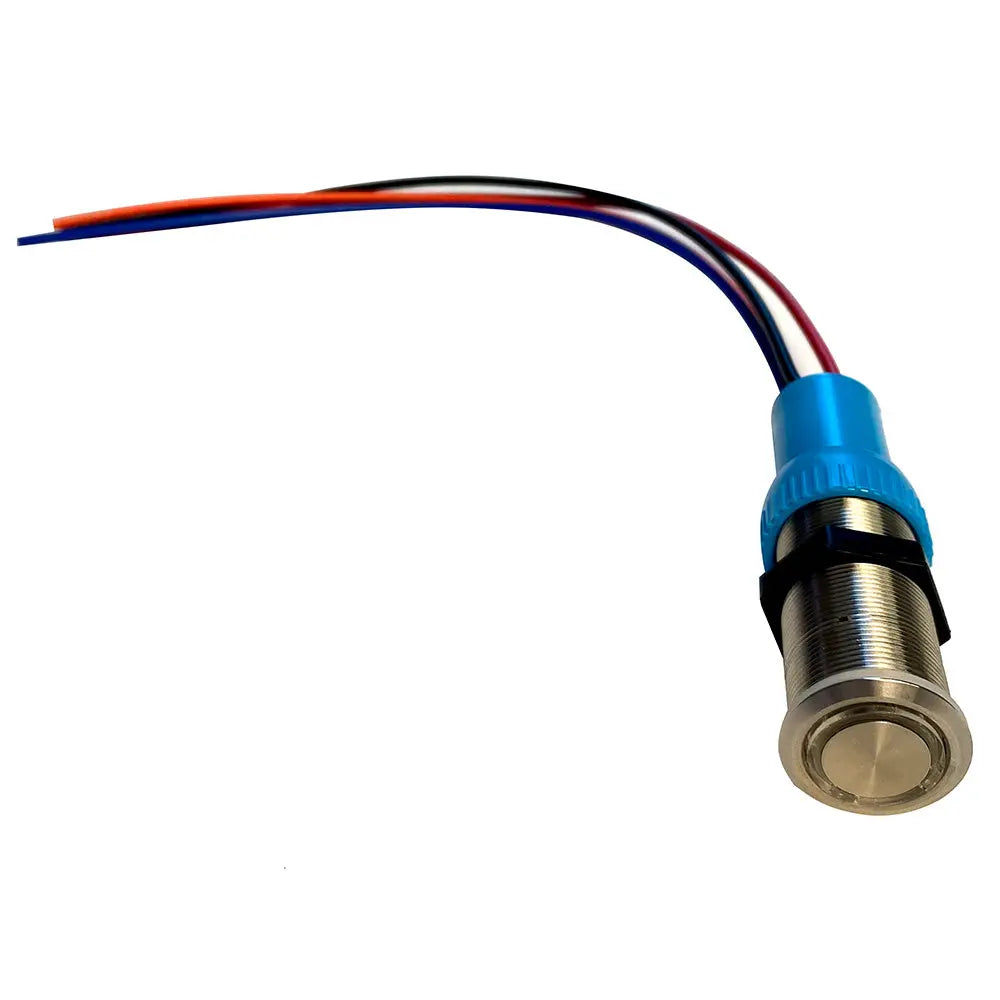

Bluewater 22mm Push Button Switch with Blue/Red LED - Off/On Contact, Waterproof IP69K Rated

22mm Push Button Switch - Off/On Contact - Blue/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a standard Off/On contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead
• 4-wire harness

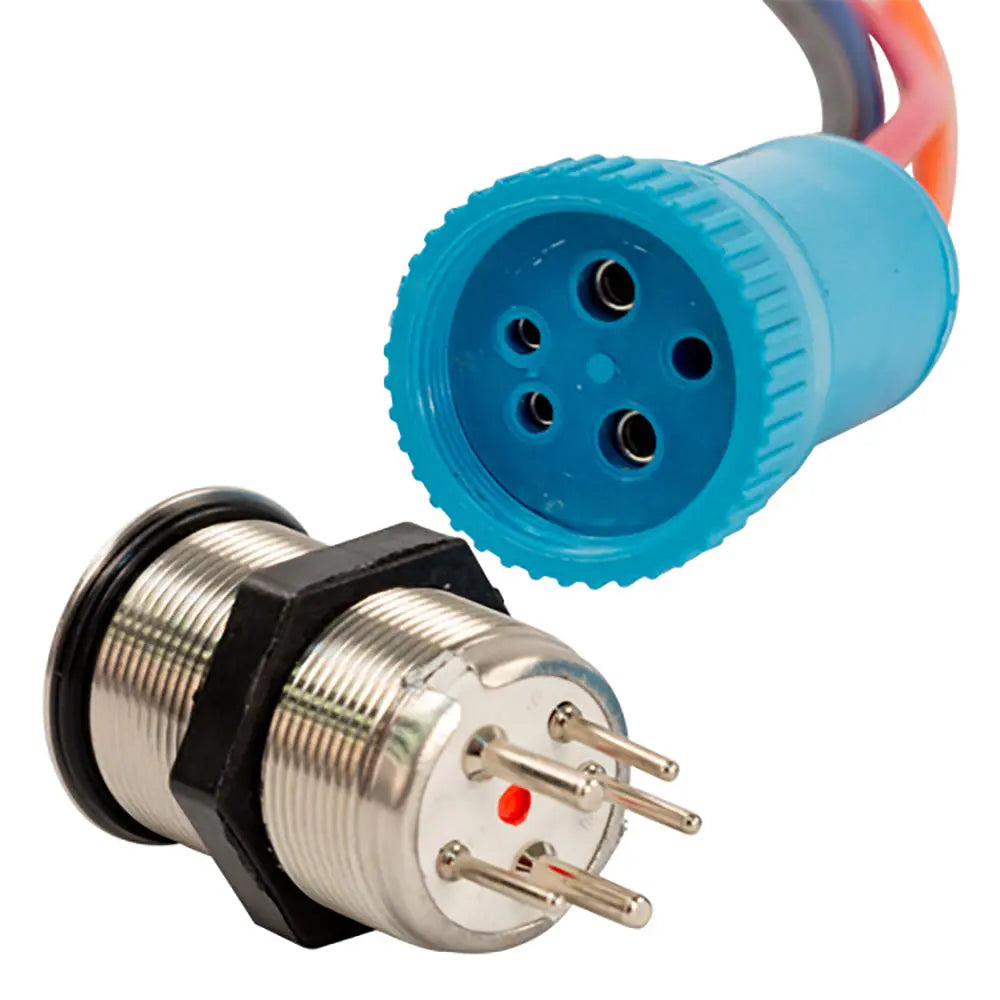

• Rear Mark Page: Red dot

Specifications:

• Function: Off-On (standard contact)
• Off/On: Blue/red
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or machinery dashboard with the Bluewater 22mm Push Button Switch, part number 9059-1113-1. Crafted from durable stainless steel, this switch features a sleek, modern design that enhances any control panel. The included gasket and robust body design provide an IP69K waterproof rating, ensuring reliable performance even in harsh environments. The switch is ideal for applications requiring a sturdy, weatherproof on/off control with clear visual indication. The integrated blue LED backlight illuminates during operation, providing high visibility at night, and switches to red to clearly indicate the active state. This intuitive color change aids in quick status recognition, reducing operational errors. The switch is rated for 20A at 12 or 24VDC, making it suitable for various electrical loads. Its mechanical life of 50,000 cycles and electrical life of 10,000 cycles guarantee long-term durability. Installation involves drilling a 22mm hole into materials up to 6mm thick, connecting the 3 color-coded contacts for power and control signals, and wiring the LED contacts for illumination. The switch comes with a 1-foot lead and a 4-wire harness for straightforward installation and integration into existing systems. Whether used in automotive, marine, or industrial applications, this push button switch provides reliable operation, enhanced visibility, and a sleek appearance to complement any dashboard setup.

Features:

• Waterproof IP69K rating with gasket for harsh environment durability

• Backlit LED with blue illumination that switches to red when active for clear visibility

• Heavy-duty stainless steel construction for long-lasting performance

• Rated for 20A at 12/24VDC, suitable for high-current applications

• Simple installation with a 22mm diameter hole and included wiring harness

• Mechanical life of 50,000 cycles and electrical life of 10,000 cycles for extended use
