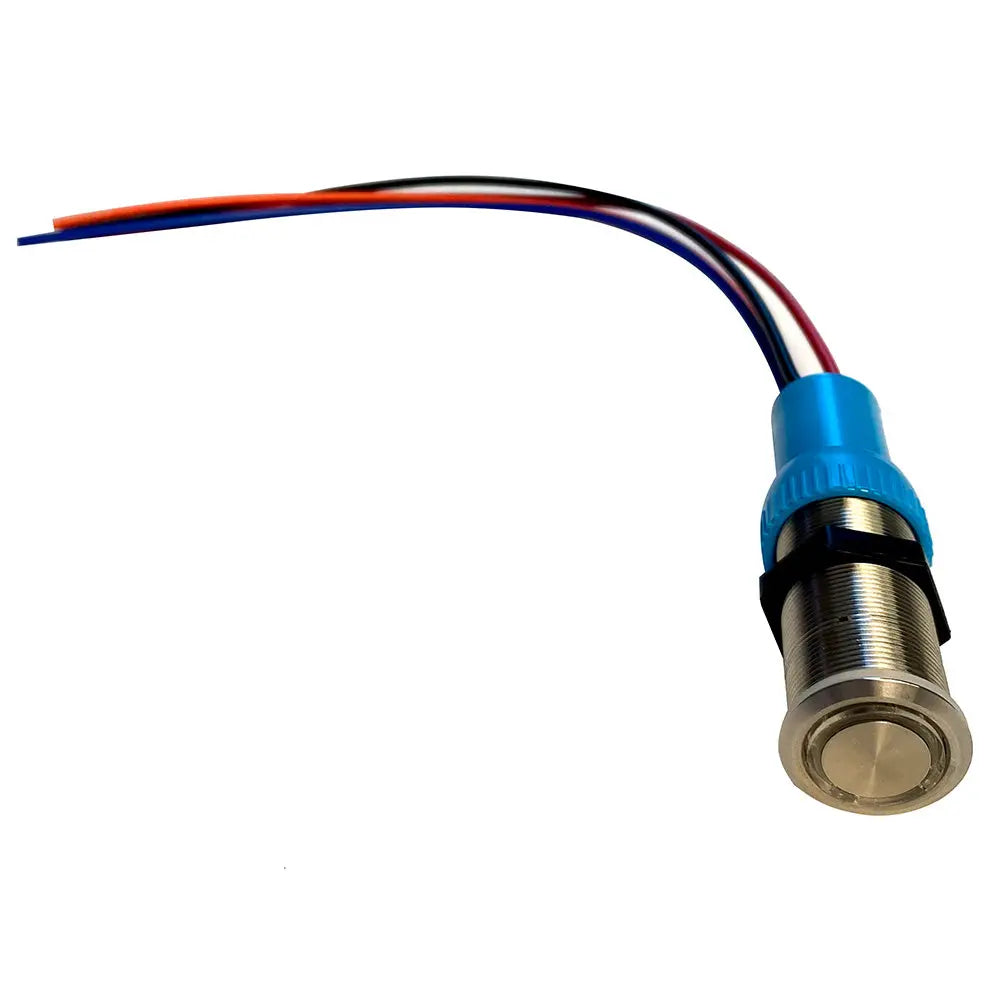

Bluewater 22mm Push Button Switch with Blue/Red LED – Off/(On) Momentary Contact, IP69K Waterproof

22mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On) momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-(On) (momentary contact)
• Off/On: Blue/red
• Rear Mark Page: Green dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

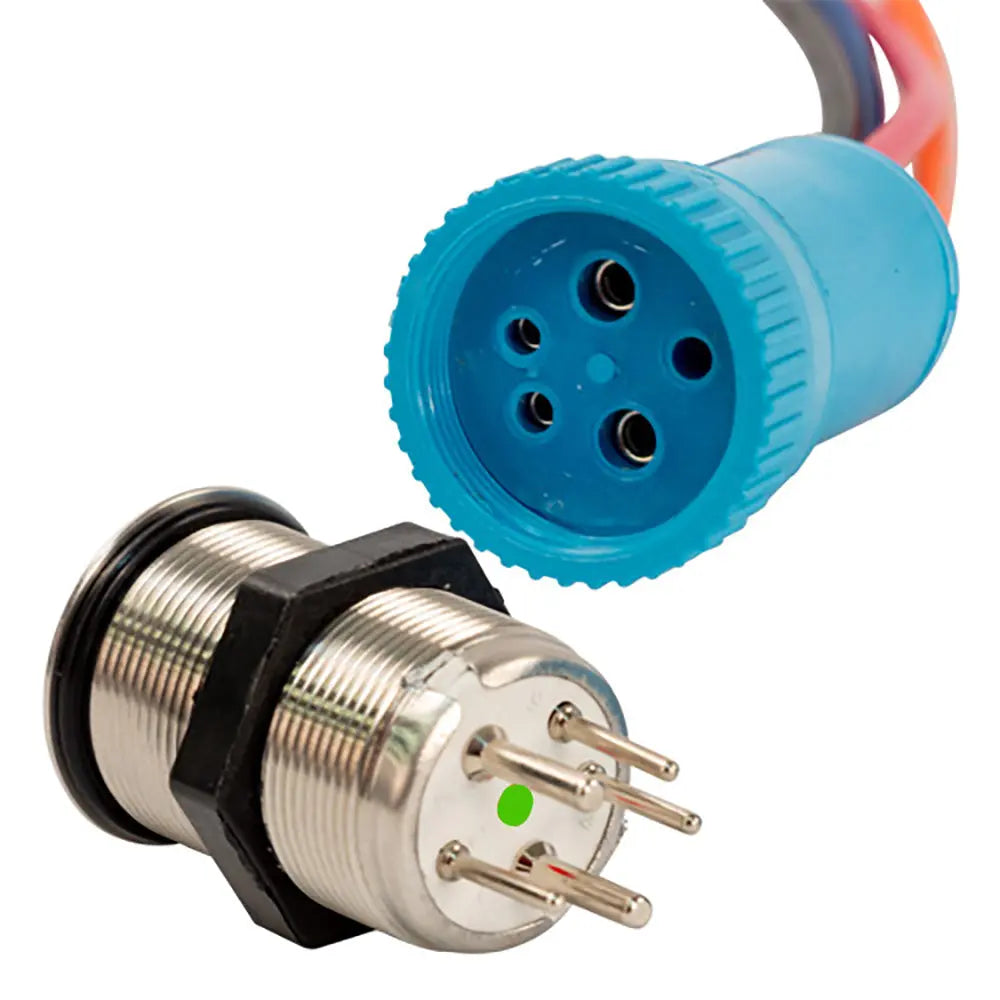

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or machinery dashboard with the Bluewater 22mm push button switch, designed for durability and clear visual indication. Crafted from stainless steel, this switch combines a sleek modern look with robust construction, making it suitable for demanding environments. Its waterproof IP69K rating ensures reliable operation even in high-pressure washdowns or wet conditions, thanks to the integrated gasket and sturdy body design. The switch features a momentary contact function, allowing for quick activation and deactivation, ideal for controlling auxiliary functions or safety mechanisms. The included blue LED backlight provides excellent visibility during nighttime operation or low-light settings, switching to red once activated to confirm the function is engaged. The switch's backlit feature enhances safety and operational clarity, minimizing the risk of accidental activation. This switch comes with a 1-foot lead, simplifying installation, which involves drilling a standard 22mm hole into panels up to 6mm thick. The wiring connections are color-coded for safety and ease of use, with three contacts for the switch function and two for the LED illumination. Rated for 20A at 12 or 24V DC, it offers reliable performance for a wide range of applications. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, the Bluewater 22mm push button switch is a dependable component for any dashboard or control panel needing a durable, visually distinctive switch. Whether for automotive, industrial, or marine use, this switch provides both form and function with its high-quality materials and thoughtful design.

Features:

• Waterproof IP69K rating with gasket and stainless steel body for durability in harsh environments

• Backlit LED indicators: blue for off, red for on, providing clear visual status

• Momentary contact function, suitable for quick activation and deactivation

• Rated for 20A at 12/24V DC, ensuring reliable electrical performance

• Includes a 1-foot lead for straightforward installation and wiring

• Designed for 22mm panel mounting with a maximum panel thickness of 6mm

• High mechanical lifespan of 50,000 cycles and electrical lifespan of 10,000 cycles

• Color-coded contacts for safe and easy wiring connections
