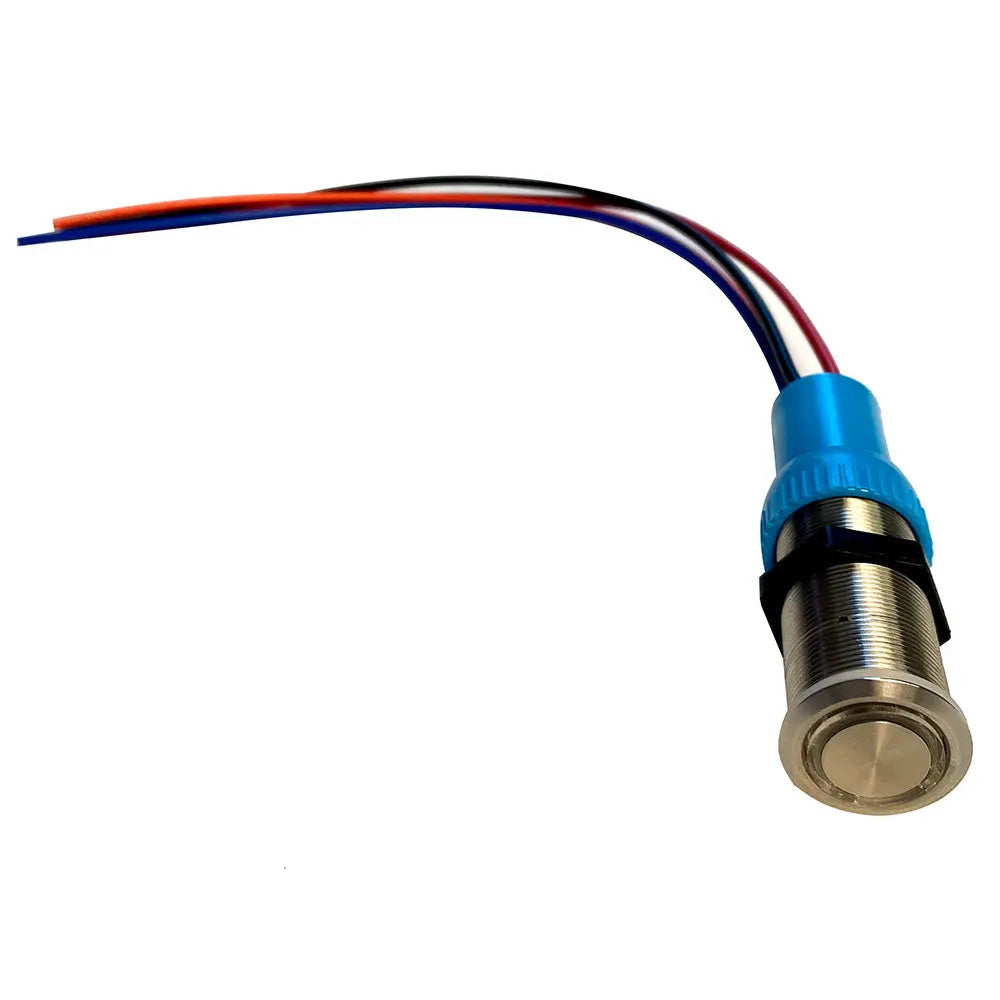

Bluewater 22mm Push Button Switch with Dual Momentary Contacts and LED Indicators

22mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 4 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off-(On)-(On) double momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-(On)-(On) (double momentary contact)
• Off/1st On: Blue/Green
• 2nd On: Red

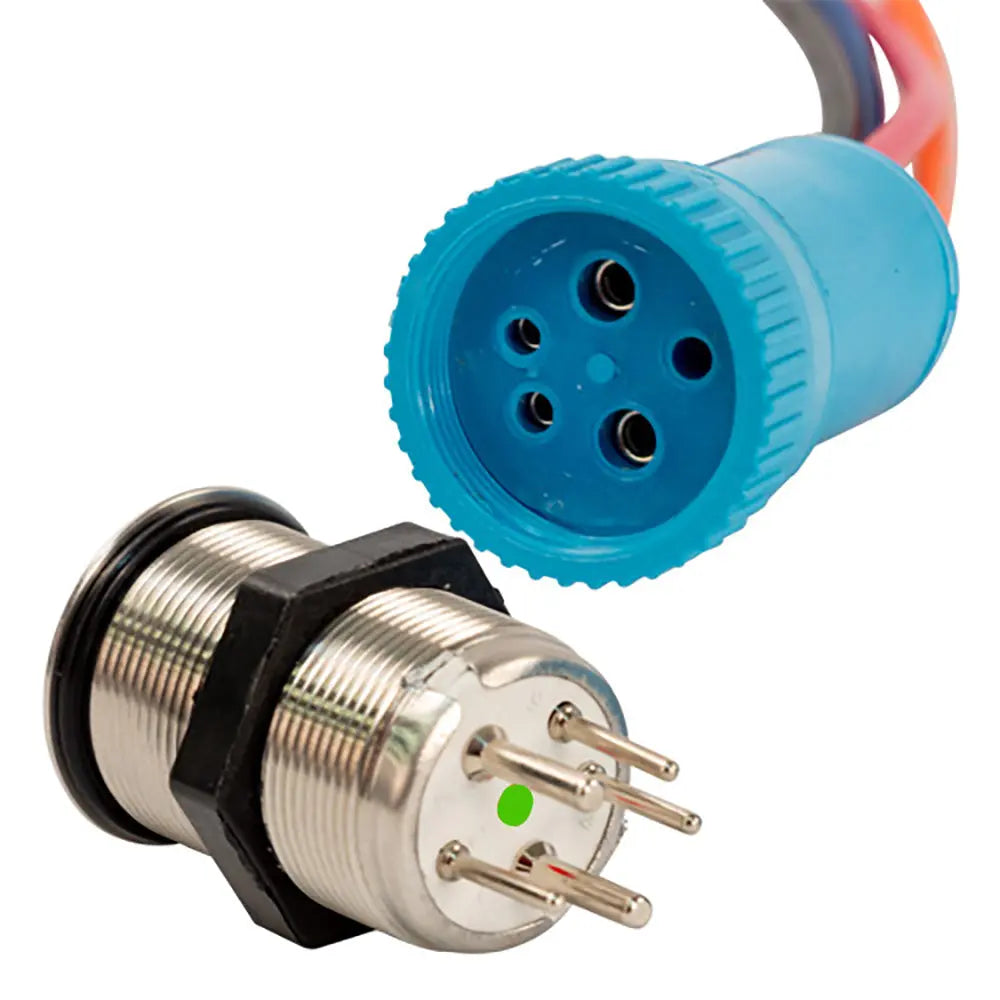

• Rear Mark Page: Green dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Enhance your vehicle or equipment dashboard with the Bluewater Part Number 9059-2123-4 22mm push button switch, crafted from durable stainless steel for a sleek modern look. This switch features an Off-(On)-(On) double momentary contact configuration, allowing users to toggle between different functions seamlessly. Its robust construction ensures reliable performance with a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, making it suitable for demanding applications. The waterproof design rated at IP69K, combined with a gasket-sealed body, guarantees protection against water, dust, and harsh environmental conditions, ensuring consistent operation even in challenging settings.

Features:

• Durable stainless steel construction for long-lasting performance

• Waterproof IP69K rating with gasket sealing for extreme environments

• Backlit LED indicators with color codes: blue for Off, green for first On, red for second On

• Includes 4-foot lead for flexible wiring options

• Easy installation with a single 22mm hole, suitable for up to 6mm thick panels

• Rated for 20A at 12V/24V DC for reliable electrical operation

• Clear LED status indication enhances nighttime visibility

• Simple wiring with color-coded contacts for safety and ease of setup
