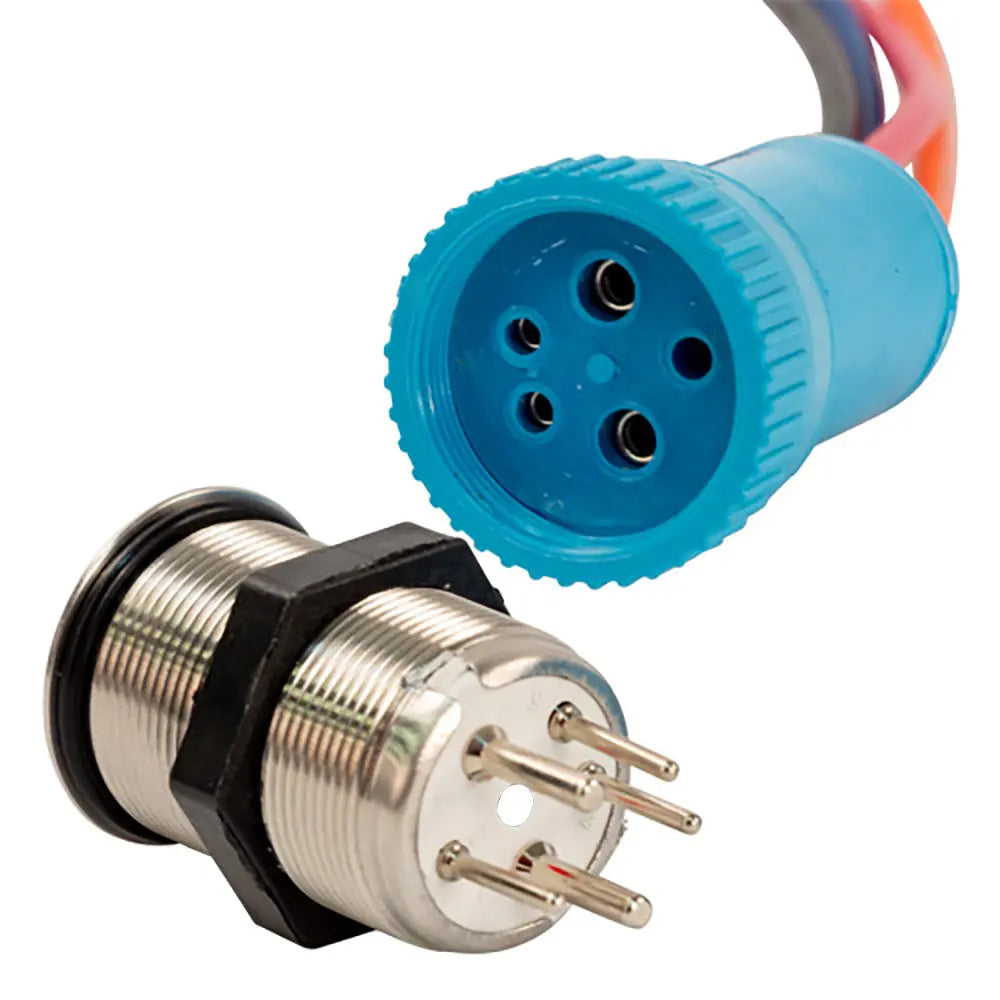

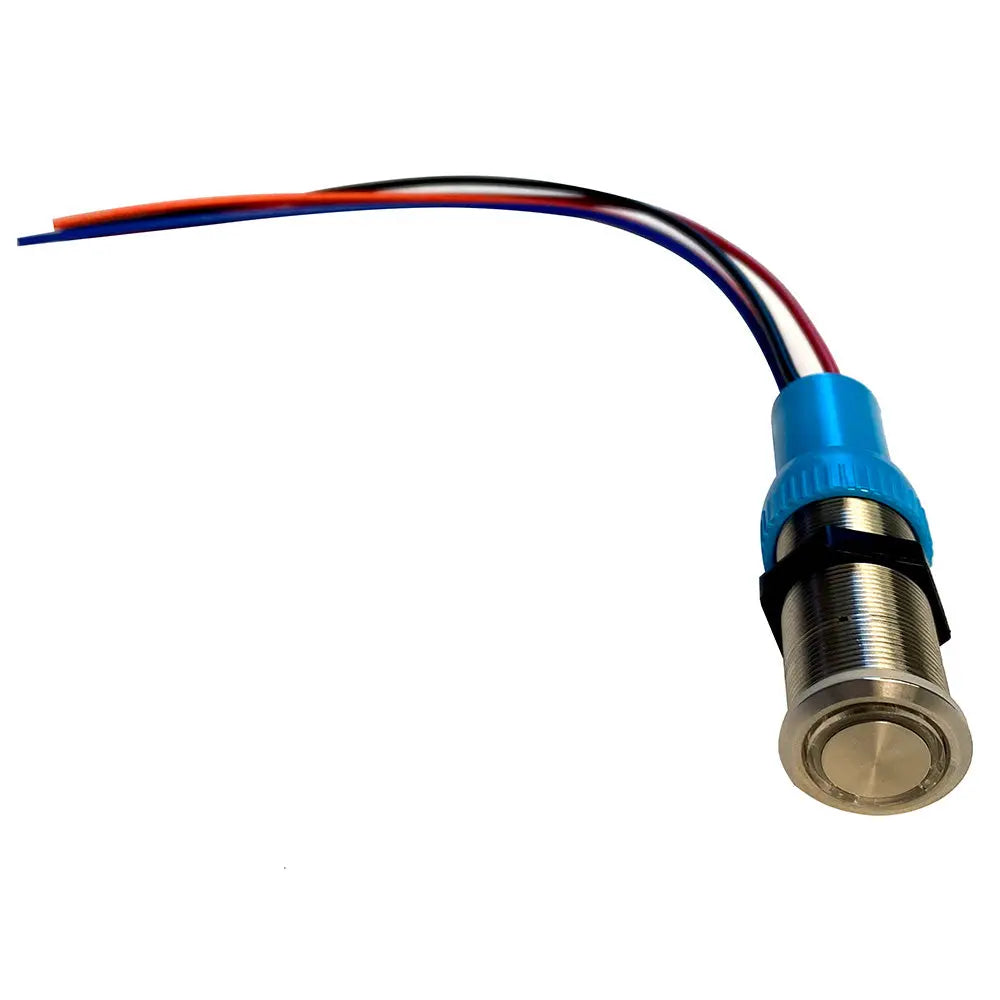

Bluewater 22mm Push Button Switch with Nav/Anc Contact and Multi-Color LED

22mm Push Button Switch - Nav/Anc Contact - Blue/Green/Red LED - 4 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a Nav/Anc contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Nav/Anc
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: White dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Enhance your vehicle's dashboard with the Bluewater 22mm Push Button Switch, part number 9059-3114-4. Crafted from durable stainless steel, this switch features a sleek, modern design that adds a professional touch to any control panel. The waterproof IP69K rating ensures reliable operation in harsh environments, making it ideal for commercial trucks, industrial machinery, or custom automotive projects. The switch's body is designed for easy installation through a 22mm hole, accommodating materials up to 6mm thick, and includes a gasket to prevent water ingress. Its robust construction and high mechanical and electrical life ratings guarantee long-lasting performance, capable of enduring over 50,000 mechanical cycles and 10,000 electrical cycles. The switch is equipped with a 4-foot lead, enabling straightforward wiring and integration into your existing systems. The integrated LED illumination provides clear visibility at night, with a blue backlight indicating the off/on state, transitioning to red when the function is active, ensuring intuitive operation. The switch offers multiple functions, including navigation and auxiliary control, with distinct color-coded contacts for safety and ease of use. Installation involves simple wiring of the three contacts for the switch function and two contacts for the LED indicator, making it accessible even for those with minimal electrical experience. Whether upgrading your vehicle dashboard or customizing industrial equipment, this switch offers a combination of durability, functionality, and modern aesthetics to meet demanding operational needs.

Features:

• Waterproof IP69K rating with gasket for reliable operation in harsh environments

• Sleek stainless steel body for durability and modern appearance

• Backlit LED with blue and red illumination for clear night visibility

• Easy installation through a 22mm hole with simple wiring connections

• High mechanical and electrical lifespan for long-term use
