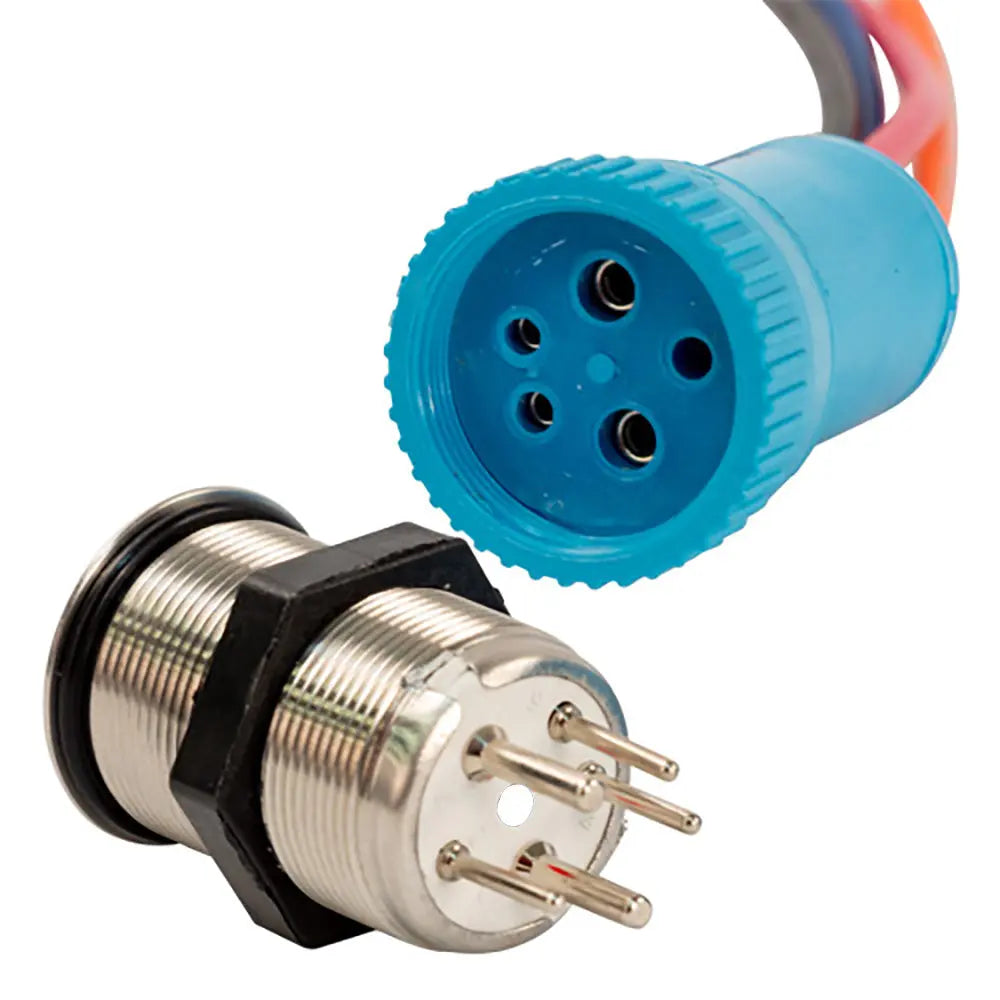

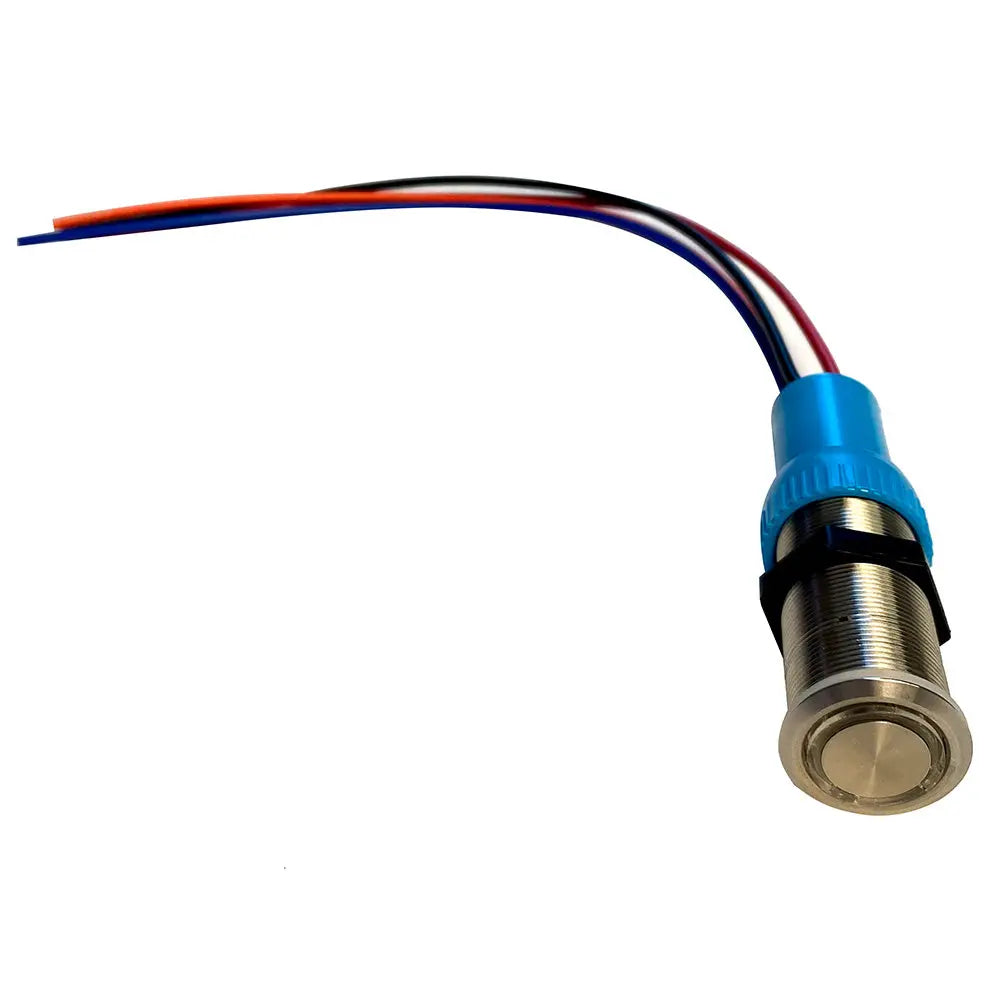

Bluewater 22mm Push Button Switch with Nav/Anc Contact and Multi-Color LED Illumination

22mm Push Button Switch - Nav/Anc Contact - Blue/Green/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a Nav/Anc contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Nav/Anc
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: White dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Enhance your vehicle's dashboard with the Bluewater 22mm push button switch, featuring a sleek stainless-steel body that adds a modern touch to any setup. Designed for durability and reliability, this switch includes a waterproof rating of IP69K, thanks to its body design and gasket, making it suitable for demanding environments. The integrated backlit LEDs provide excellent visibility at night, with blue illumination indicating the off state and green for the first on state, while red signals the second on state, ensuring clear and immediate status recognition. The switch's robust construction supports up to 20 amps at 12 or 24 volts DC, making it ideal for various electrical applications within automotive or marine systems.

Features:

• Waterproof IP69K rating with gasket for enhanced durability in harsh conditions

• Backlit LED indicators: blue for off, green for first on, red for second on for clear status indication

• Stainless steel body for corrosion resistance and a modern appearance

• Includes 1 ft. lead for easy wiring and installation

• Designed with a Nav/Anc contact function for versatile control options

• Durable mechanical life of 50,000 cycles and electrical life of 10,000 cycles for long-term reliability

• Simple installation requiring a 22mm hole in material up to 0.24 inches thick, with color-coded contacts for safety and ease of wiring
