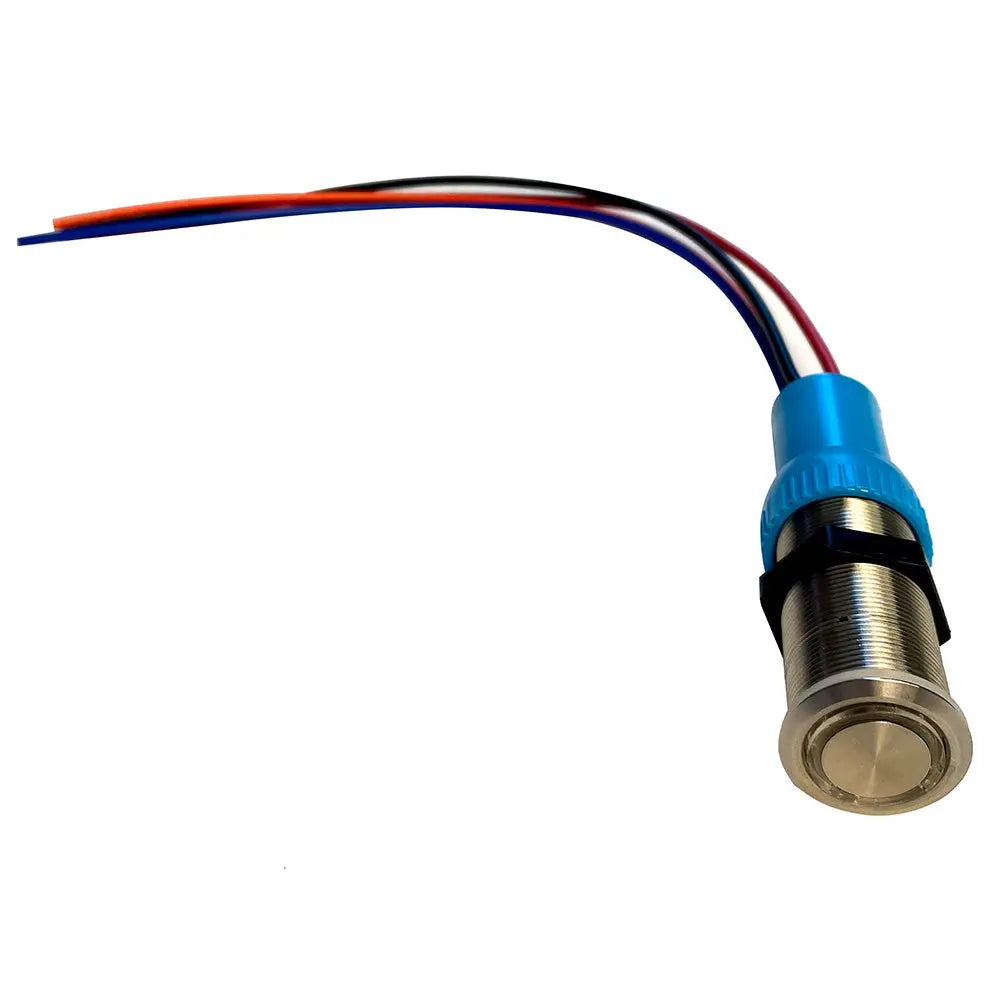

Bluewater 22mm Push Button Switch with Off-On-On Contact and LED Backlighting

22mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off-On-On standard contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-On-On (standard contact)
• Off/1st On: Blue/Green
• 2nd On: Red

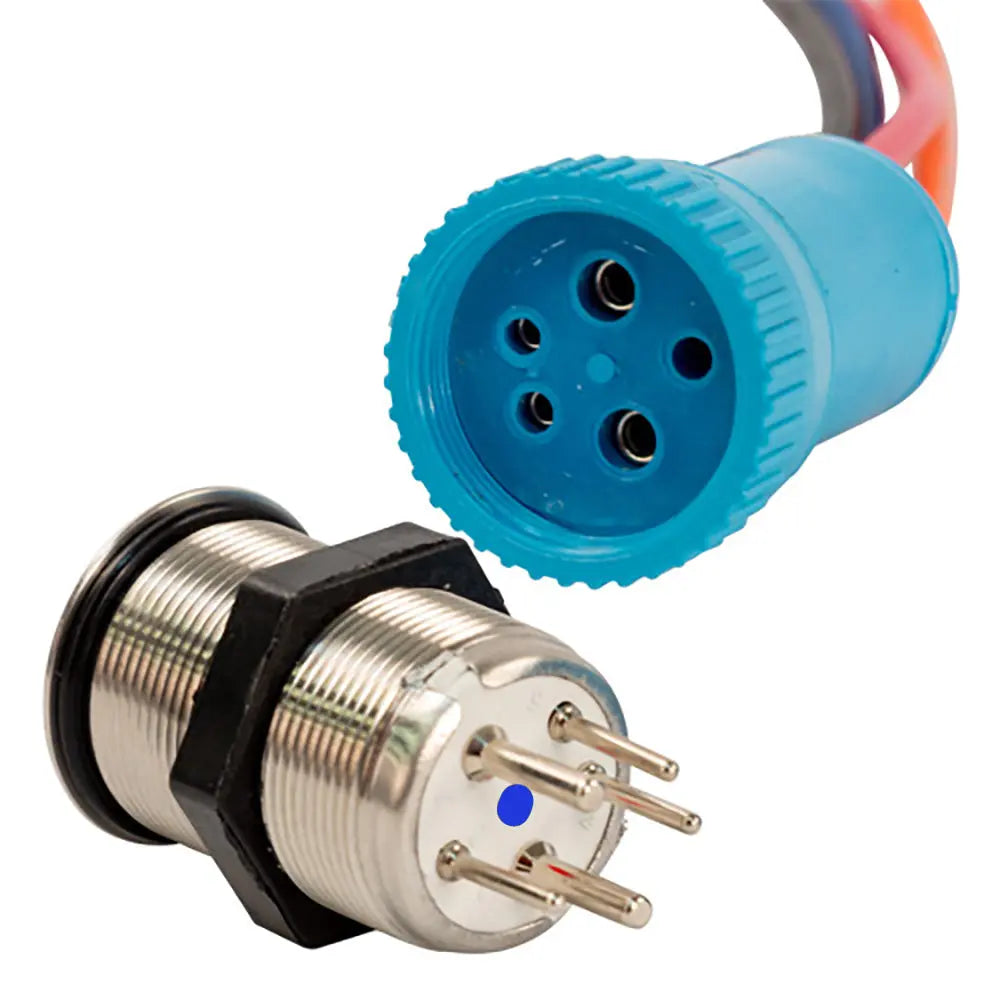

• Rear Mark Page: Blue dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Enhance your vehicle or equipment dashboard with the Bluewater 22mm push button switch, featuring a sleek stainless-steel body that offers both durability and modern aesthetics. Designed with a waterproof IP69K rating, this switch is ideal for demanding environments where protection against water and dust is crucial. The switch's off-on-on configuration provides versatile control options, with the blue and green LEDs indicating the first on state and the red LED signaling the second on state, ensuring clear visual feedback during operation. The backlit LEDs improve visibility in low-light conditions, making it easier to monitor system status at a glance. This switch is suitable for various industrial, automotive, or marine applications where reliability and clarity are paramount.

Features:

• Function: Off-On-On with standard contact configuration

• LED Colors: Blue (Off/First On), Green (First On), Red (Second On)

• Backlit LED: Yes, with blue and red illumination for clear status indication

• Waterproof Rating: IP69K, suitable for demanding environments

• Material: Stainless steel for corrosion resistance and durability

• Mechanical Life: Up to 50,000 cycles for long-lasting performance

• Electrical Life: Up to 10,000 cycles to ensure dependable operation

• Lead Length: 1 foot for flexible wiring options

• Mounting: Requires a 22mm diameter hole, compatible with materials up to 6mm thick

• Rating: 20A at 12-24V DC, suitable for various power control applications
