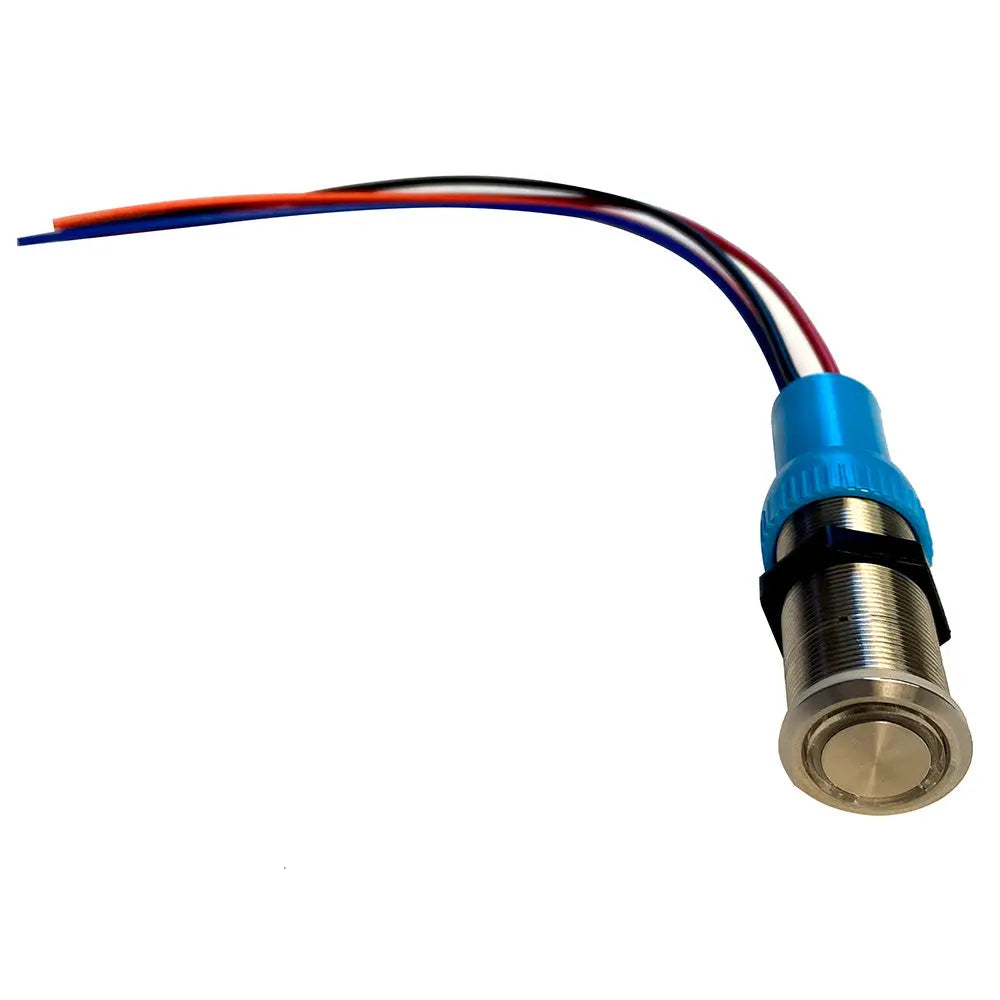

Bluewater 22mm Push Button Switch with Off-On-On Contact and Multicolor LED Lighting

22mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 4 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off-On-On standard contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-On-On (standard contact)
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: Blue dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation

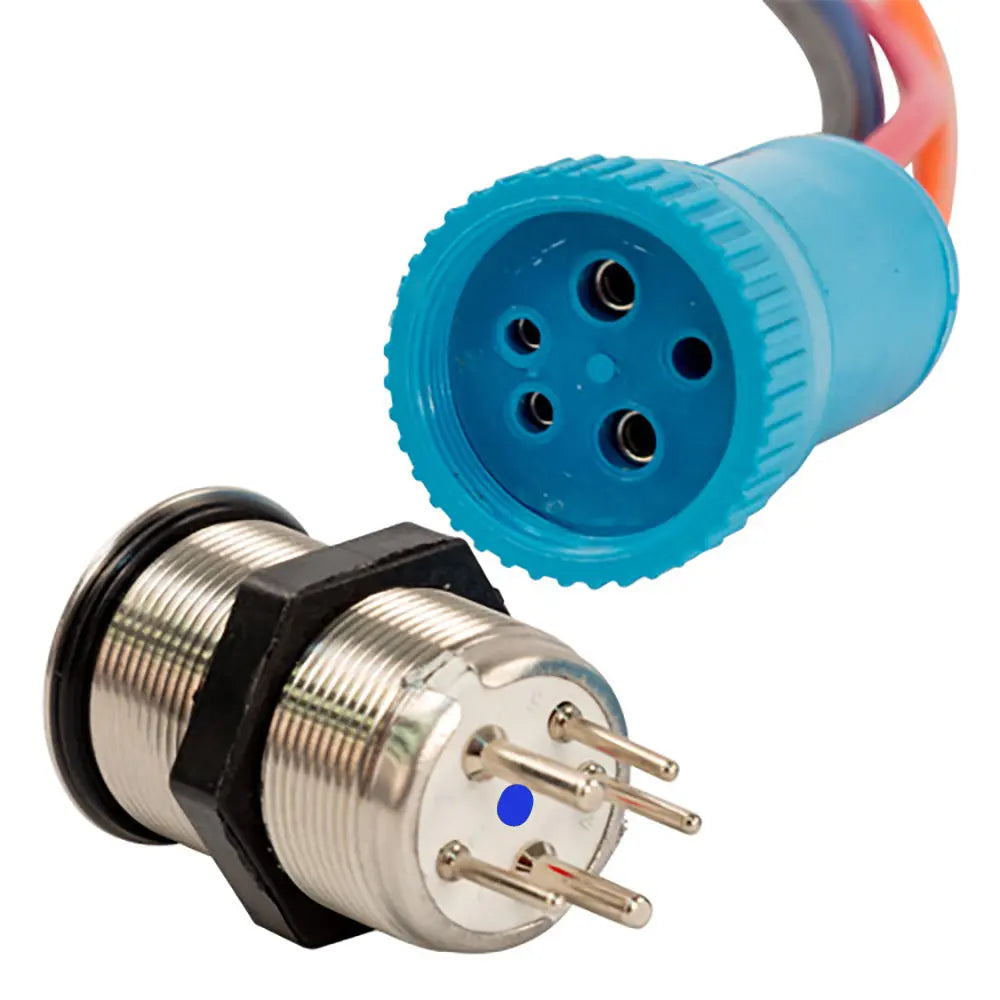

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your dashboard with the Bluewater Part Number 9059-3113-4 22mm push button switch, crafted from durable stainless steel for a sleek, modern appearance. This switch features an off-on-on contact configuration, allowing for versatile control options in various applications. The included gasket ensures a waterproof rating of IP69K, making it suitable for demanding environments where moisture resistance is essential. With integrated backlit LEDs, the switch provides clear visibility at night; the blue LED indicates the off and first on position, while the red LED signals the second on state, enhancing operational clarity. The switch's robust construction supports up to 20 amps at 12 or 24 volts DC, making it ideal for automotive, marine, or industrial use. Installation is straightforward, requiring only a 22mm hole drilled into panels up to 6mm thick, with color-coded contacts for easy wiring and safe operation. The switch boasts a mechanical lifespan of 50,000 cycles and an electrical lifespan of 10,000 cycles, ensuring long-term reliability and performance. Its 4-foot lead provides flexibility during installation, allowing for seamless integration into your system. Whether you're customizing a vehicle dashboard or enhancing machinery controls, this push button switch combines durability, visibility, and modern design to meet your needs.

Features:

• Durable stainless steel body with waterproof IP69K rating

• Off-On-On contact configuration for versatile control

• Backlit LEDs: blue for off/first on, red for second on for clear status indication

• Includes gasket for enhanced water resistance

• Supports up to 20A at 12/24V DC for reliable power handling

• Simple installation with a 22mm mounting hole and color-coded wiring contacts

• Long-lasting mechanical and electrical lifespan for dependable performance

• 4-foot lead for flexible wiring and installation
