Bluewater 22mm Push Button Switch with Triple-Color LED and Waterproof Design

22mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off-(On)-(On) double momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

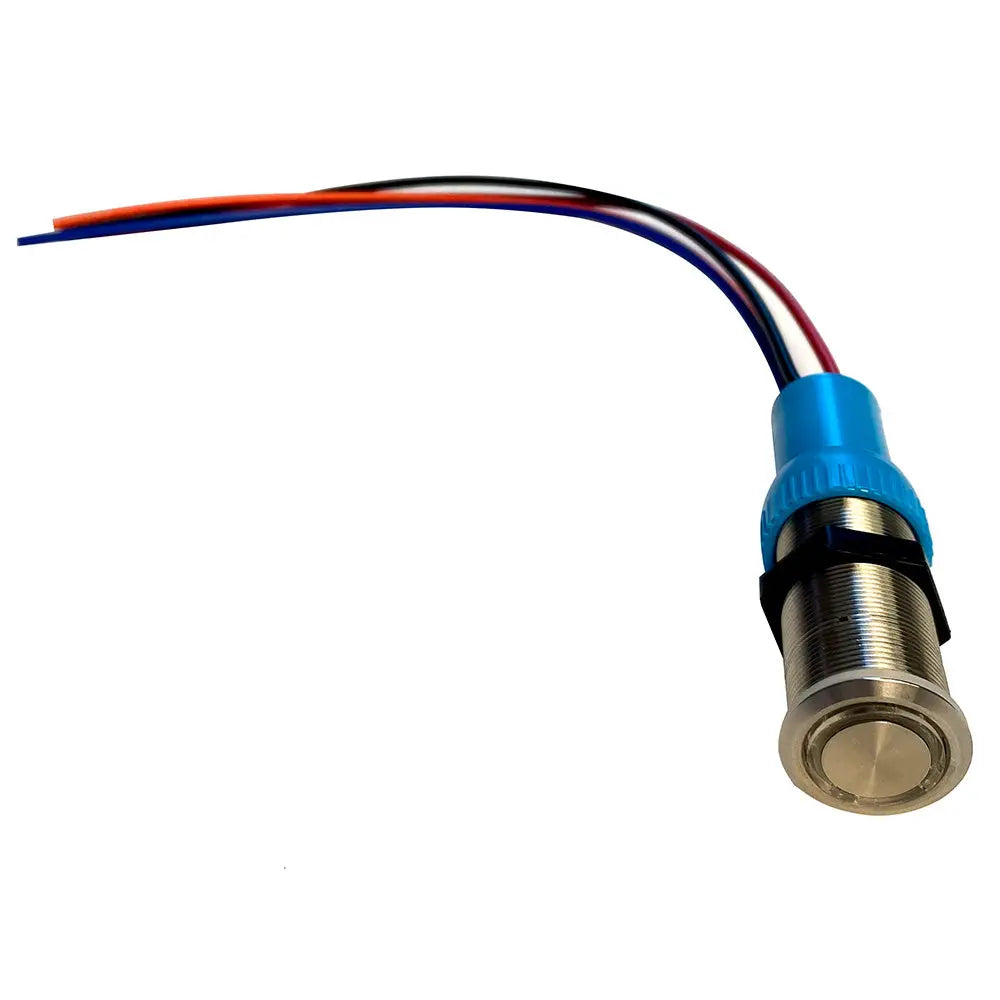

• 1 ft. lead

Specifications:

• Function: Off-(On)-(On) (double momentary contact)
• Off/1st On: Blue/Green
• 2nd On: Red

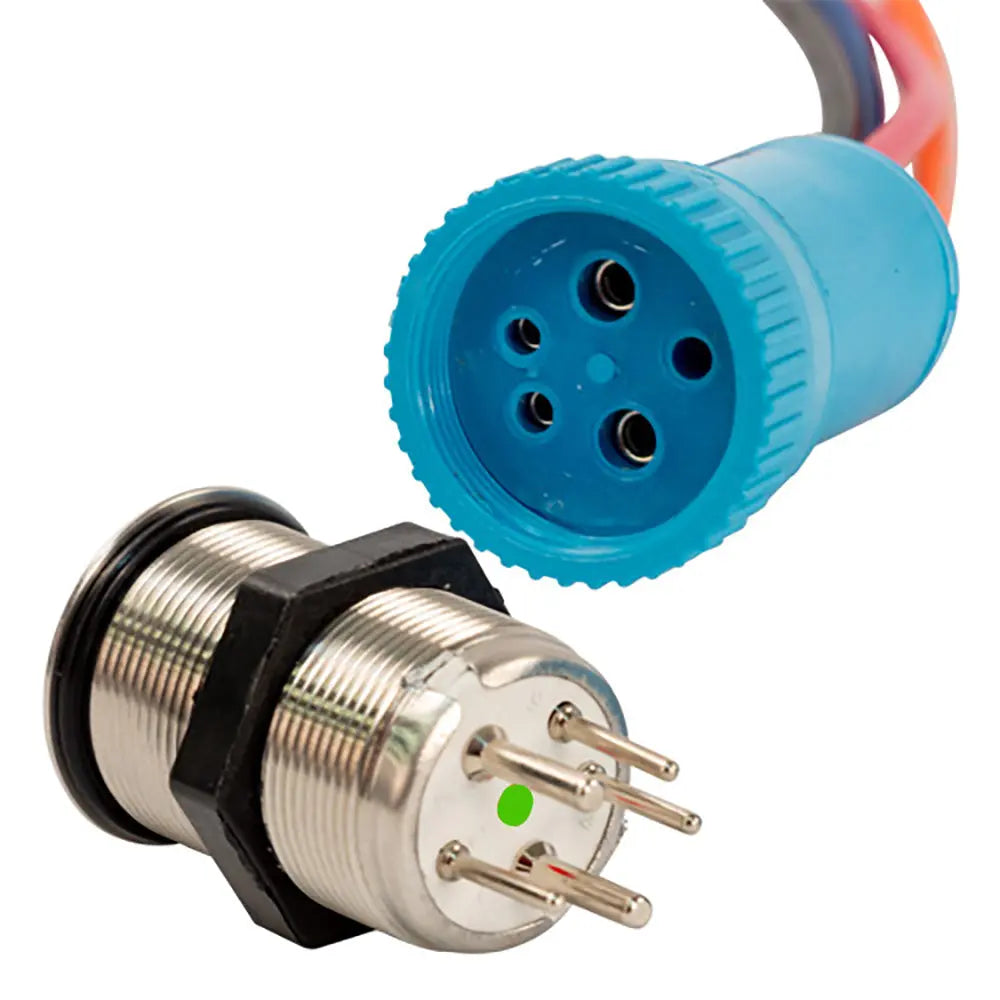

• Rear Mark Page: Green dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or machinery control panel with the Bluewater 22mm push button switch, part number 9059-2123-1. Crafted from durable stainless steel, this switch combines modern aesthetics with reliable performance, making it an ideal choice for demanding environments. The switch features a 22mm diameter mounting, suitable for installation in panels up to 0.24 inches thick, and includes a gasket to achieve an IP69K waterproof rating, ensuring protection against dust and water ingress. Its sleek design and backlit LED indicators enhance visibility and usability, even in low-light conditions, providing clear status indication at a glance.
Designed with a versatile Off-(On)-(On) double momentary contact function, this switch allows for multiple operational states, making it suitable for complex control systems. The first position is indicated with a blue LED, transitioning to green when activated, and then to red for the second activation, providing immediate visual feedback. The LED backlighting is powered through two contacts, ensuring consistent illumination, while the three contact points for the switch itself are color-coded for safe and straightforward wiring. Rated for 20A at 12 or 24VDC, the switch offers dependable electrical performance, with a mechanical lifespan of over 50,000 cycles and an electrical lifespan of 10,000 cycles, ensuring long-term durability and reliability.
Installation is simple: drill a 22mm hole into your panel, connect the contacts as per the color coding, and secure the switch. Its robust stainless-steel construction and waterproof features make it suitable for various applications, including automotive, industrial, and marine environments. The Bluewater 22mm push button switch combines functionality, durability, and style, making it a valuable addition to any control system requiring clear, reliable, and visually appealing operation indicators.

Features:

• Durable stainless steel body with waterproof IP69K rating for harsh environments

• Triple-color LED backlighting with blue, green, and red indicators for clear status display

• Off-(On)-(On) double momentary contact function for versatile control options

• Easy installation with a 22mm mounting hole and included gasket

• Rated for 20A at 12 or 24VDC for reliable electrical performance

• High mechanical lifespan of over 50,000 cycles ensures long-term durability

• Simple wiring with color-coded contacts for safe and quick setup
