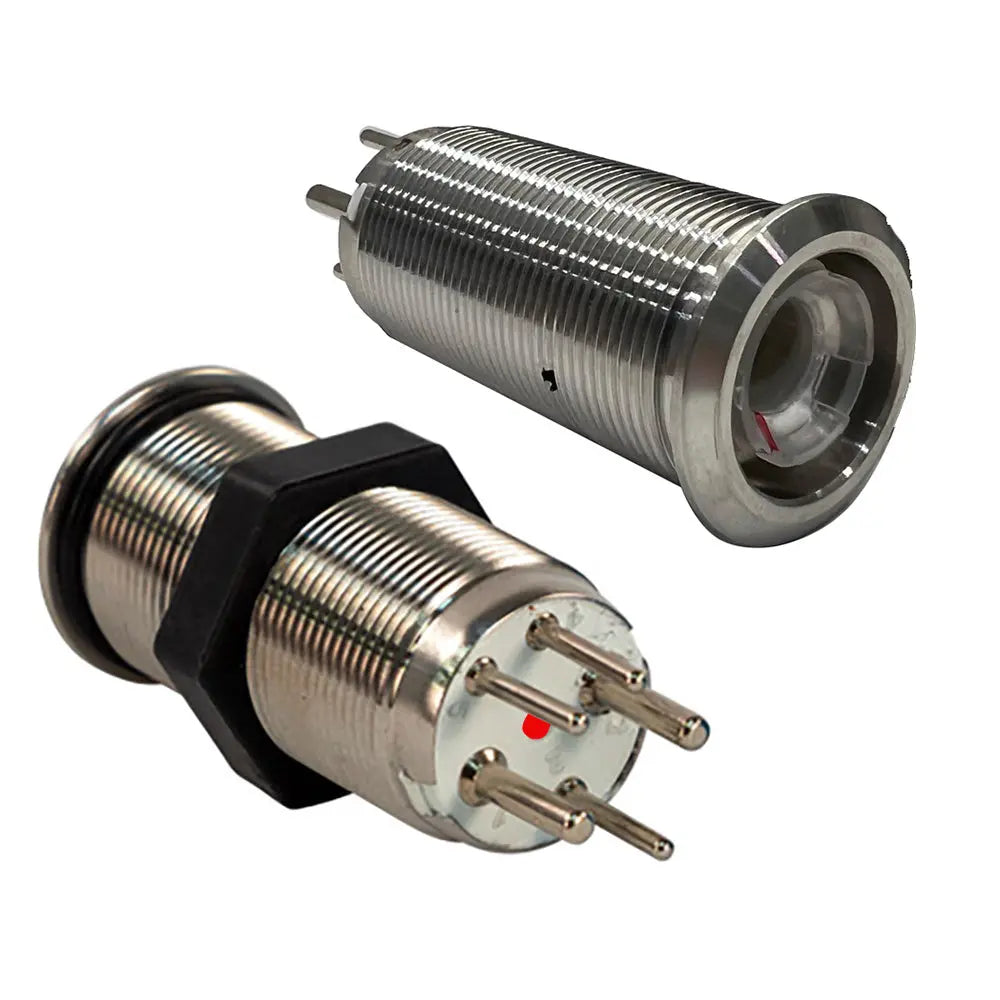

Bluewater 9057-1113 19mm Marine Grade Inrush Push Button Switch with Blue/Red LED Indicators

19mm Inrush Push Button Switch Off/On - Blue/Red LED - Switch Body Only

The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.

This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.

This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.

Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.

Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.

Specifications:

• Switch Rating: 15A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Dimensions: View Dimensional Drawings
• Material: Nickel Plated Brass/ Stainless Steel
• LED Color: Blue/Green/Red

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.

The Bluewater 9057-1113 is a high-performance 19mm marine-grade push button switch designed for demanding outdoor and marine applications. Encased in corrosion-resistant stainless steel and sealed to an IP69K waterproof rating, this switch is built to endure harsh environments, including salt spray and washdowns. Its compact design makes it ideal for tight panel layouts where durability and reliability are paramount. The switch features a fully detachable actuator that can be customized to suit your specific style preferences, ensuring both functional and aesthetic flexibility. The built-in LED indicators provide clear visual feedback, with a soft blue backlight for low-light visibility and bright red illumination when the switch is active, offering immediate confirmation of power status. Rated for 15 amps at 12-24V DC, it handles high current loads efficiently, making it suitable for controlling various electrical systems on boats, trucks, or outdoor equipment. Its robust construction from nickel-plated brass and stainless steel ensures longevity and consistent performance even in the most challenging conditions. Installation involves drilling a 19mm hole into panels up to 0.24 inches thick, connecting the color-coded contacts for the button, and wiring the LED contacts for illumination. Whether you are a marine technician, boat builder, or electrical system upgrader, this switch provides a reliable and visually intuitive control solution that withstands the rigors of outdoor environments while offering straightforward installation and customization options.

Features:

• Marine-grade stainless steel housing with corrosion resistance

• IP69K waterproof rating suitable for harsh environments

• Detachable, customizable actuator for style and functionality

• Blue LED backlight for low-light visibility

• Red LED indicator for active status confirmation

• Rated for 15 amps at 12-24V DC with high current handling

• Easy installation with a 19mm panel hole and color-coded contacts

• Built-in durability with a mechanical life of 50,000 cycles and electrical life of 10,000 cycles

• Designed for tight spaces and rugged outdoor applications
