SKU:101921

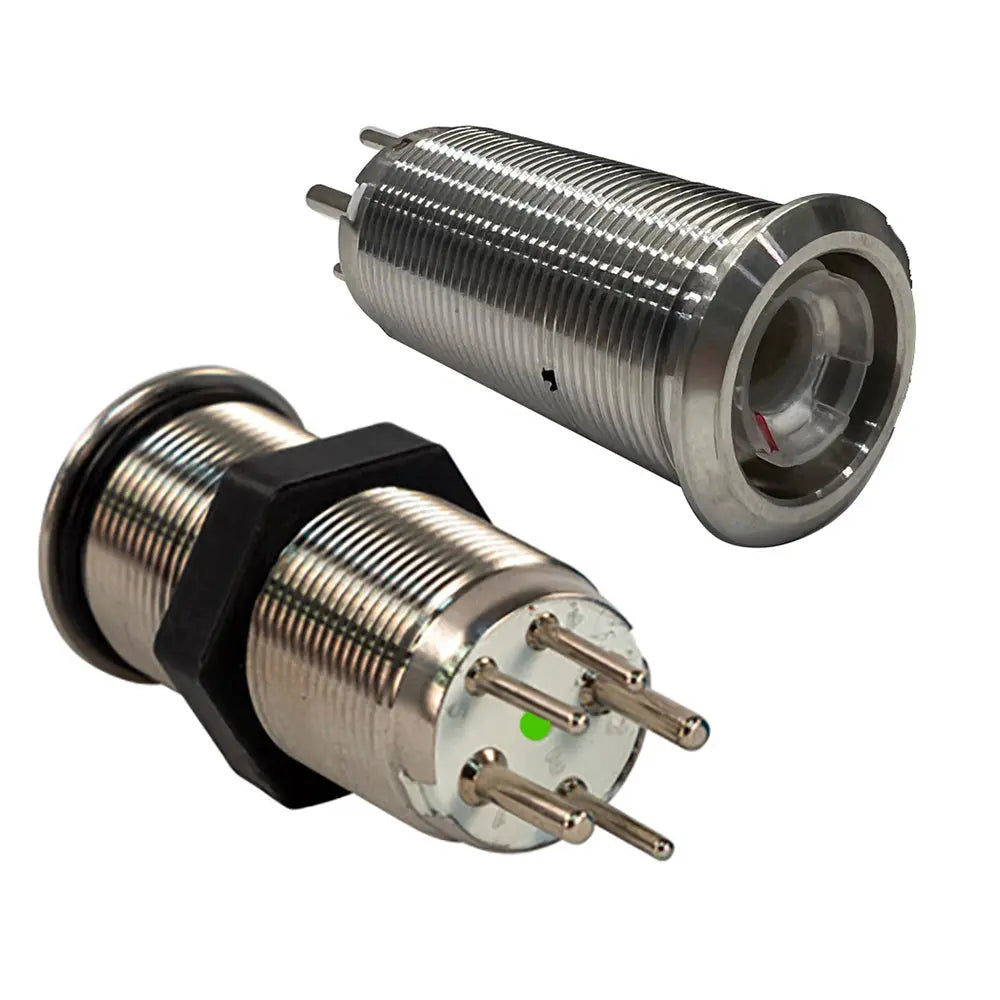

19mm Inrush Push Button Switch Momentary Off-(On) - Blue/Red LED - Switch Body Only
The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.
This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.
This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.
Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.
Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.
Specifications:
Installation:
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
The Bluewater 9057-2113 is a compact, marine-grade 19mm push button switch designed for demanding environments where durability and reliability are essential. Crafted from corrosion-resistant SS316 stainless steel, this switch is sealed to an IP69K waterproof rating, making it ideal for marine and outdoor applications exposed to salt spray, washdowns, and harsh conditions. Its rugged construction ensures long-lasting performance, even in the most challenging settings. The switch features a fully detachable actuator that can be customized to suit your specific control needs, providing flexibility in installation and operation.
Equipped with smart LED indicators, the Bluewater 9057-2113 enhances user experience by providing clear visual feedback. The soft blue backlight improves visibility in low-light conditions, while the bright red LED indicates active status, allowing for quick and intuitive operation. Rated for 15 amps at 12-24VDC, it can handle high current loads reliably, making it suitable for various electrical control applications on boats, vehicles, or outdoor equipment. The switch offers a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, ensuring durability over extended use.
Installation is straightforward, requiring only a 19mm hole in materials up to 6mm thick. Connect the color-coded contacts for the switch function and LED for safe and efficient wiring. Constructed from nickel-plated brass and stainless steel, this switch combines strength with corrosion resistance, ensuring it maintains performance in demanding environments. Whether upgrading an existing system or installing new controls, the Bluewater 9057-2113 provides a reliable, visually intuitive solution for your control panel needs.
Features:
