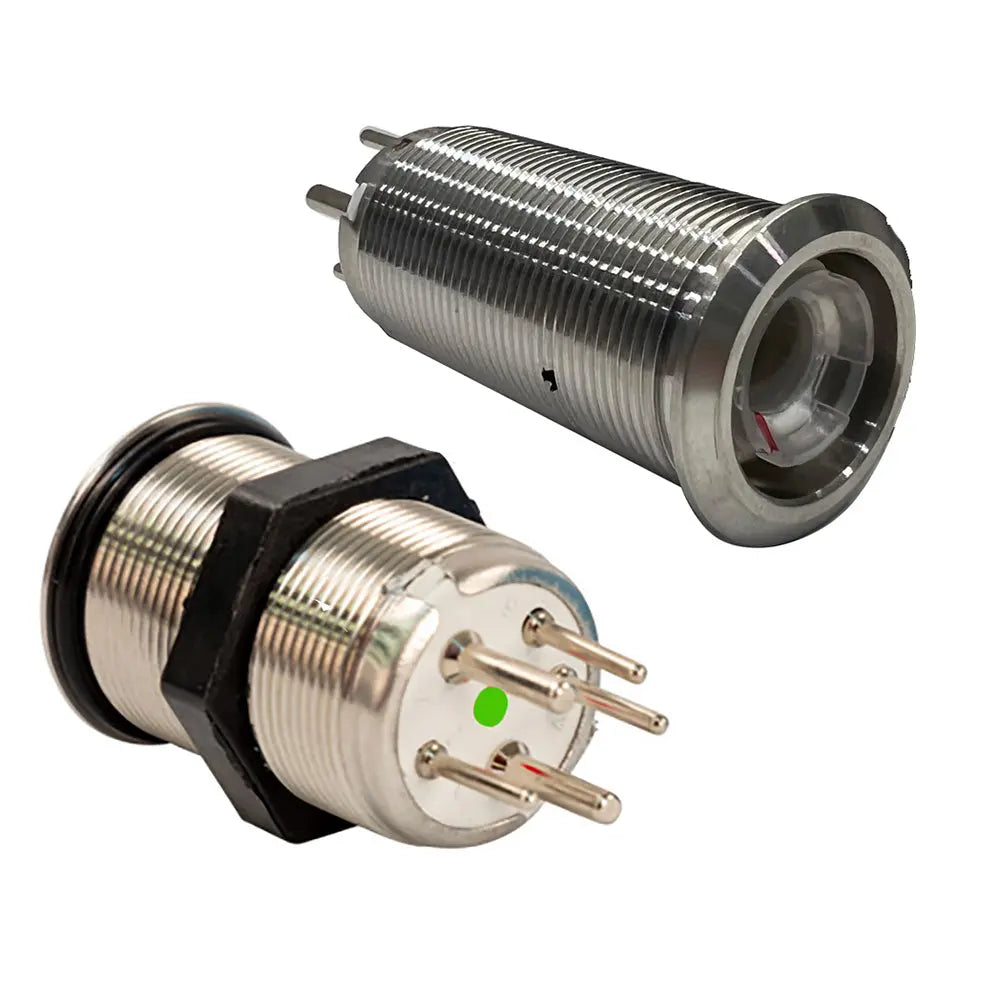

Bluewater 9059-2123 Marine Inrush Push Button Switch with LED Indicators, 22mm Diameter, Waterproof and Corrosion-Resistant

22mm Inrush Push Button Switch Momentary Off(On)(On) - Blue/Red/Green LED - Switch Body Only

The switch is the core of your control system. Built marine tough with inrush protection and waterproof sealing for reliable performance.

Upgrade your marine switch panel with the 9059 Series 22mm Inrush Protection Switch. Built for heavy-duty marine applications, this switch handles high surge currents with ease - perfect for pumps, motors, and other demanding onboard equipment.

Built for Harsh Marine Conditions:

• Encased in corrosion-resistant SS316 stainless steel
• Rated IP69K waterproof with Bluewaters proprietary Deutsch-style connectors
• Resistant to salt spray, heat, vibration, and shock

Easy to See and Control:

• Blue LED backlighting for night visibility
• LED shifts to bright red when activeinstant confirmation of pump or device status
• Fully detachable actuator for customization of style and function

Reliable Power Handling:

• Rated for 20 amps on a single channel
• Rated for 10 amps per channel in dual-channel use
• Impact-resistant and designed for long-lasting performance

Why Choose the 9059 Switch for Your Marine Switch Panel

This inrush protection switch combines rugged durability with smart design. It installs easily, provides dependable control, and ensures your marine switch panel remains reliable in all conditions.

When you are on the water, trust the 9059 Series to keep your critical systems running smoothly and safely.

Specifications:

• Switch Rating: 20A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Dimensions: View Dimensional Drawings
• Material: Nickel Plated Brass/ Stainless Steel
• LED Color: Blue/Green/Red

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.

The Bluewater 9059-2123 is a durable 22mm inrush push button switch designed specifically for demanding marine environments. Crafted with corrosion-resistant SS316 stainless steel, this switch offers exceptional resistance to salt spray, heat, vibration, and shock, making it ideal for installing on boat control panels exposed to harsh conditions. Its waterproof rating of IP69K ensures reliable operation even in wet and humid conditions, providing peace of mind for critical onboard systems. The switch features a fully detachable actuator, allowing for easy customization of style and function to suit your specific control needs. With a robust design, it handles high surge currents comfortably, rated for 20 amps at 12-24VDC, and is suitable for controlling pumps, motors, or other electrical equipment on your vessel. The integrated blue LED backlighting enhances visibility during night operations, and the LED shifts to bright red when active, offering immediate status confirmation. This visual indicator improves safety and operation efficiency, especially in low-light conditions. The switch's construction includes nickel-plated brass contacts for reliable power transfer and long-lasting performance, with a mechanical life of 50,000 cycles and electrical durability rated for 10,000 cycles. Easy installation is facilitated by a simple 22mm hole drill, compatible with materials up to 6mm thick, and straightforward wiring with color-coded contacts ensures safe and quick setup. Whether replacing an existing switch or adding a new control point, the Bluewater 9059-2123 provides dependable performance and rugged durability to keep your marine systems running smoothly in all conditions.

Features:

• Corrosion-resistant SS316 stainless steel body for marine durability

• Waterproof IP69K rating with Deutsch-style connectors for wet environments

• Handles up to 20 amps at 12-24V DC for heavy-duty applications

• Blue LED backlighting for night visibility with red active indicator

• Detachable actuator for customizable styling and functionality

• Impact-resistant design with long mechanical and electrical life

• Simple installation with a 22mm diameter mounting hole

• Suitable for controlling pumps, motors, and onboard electrical systems
