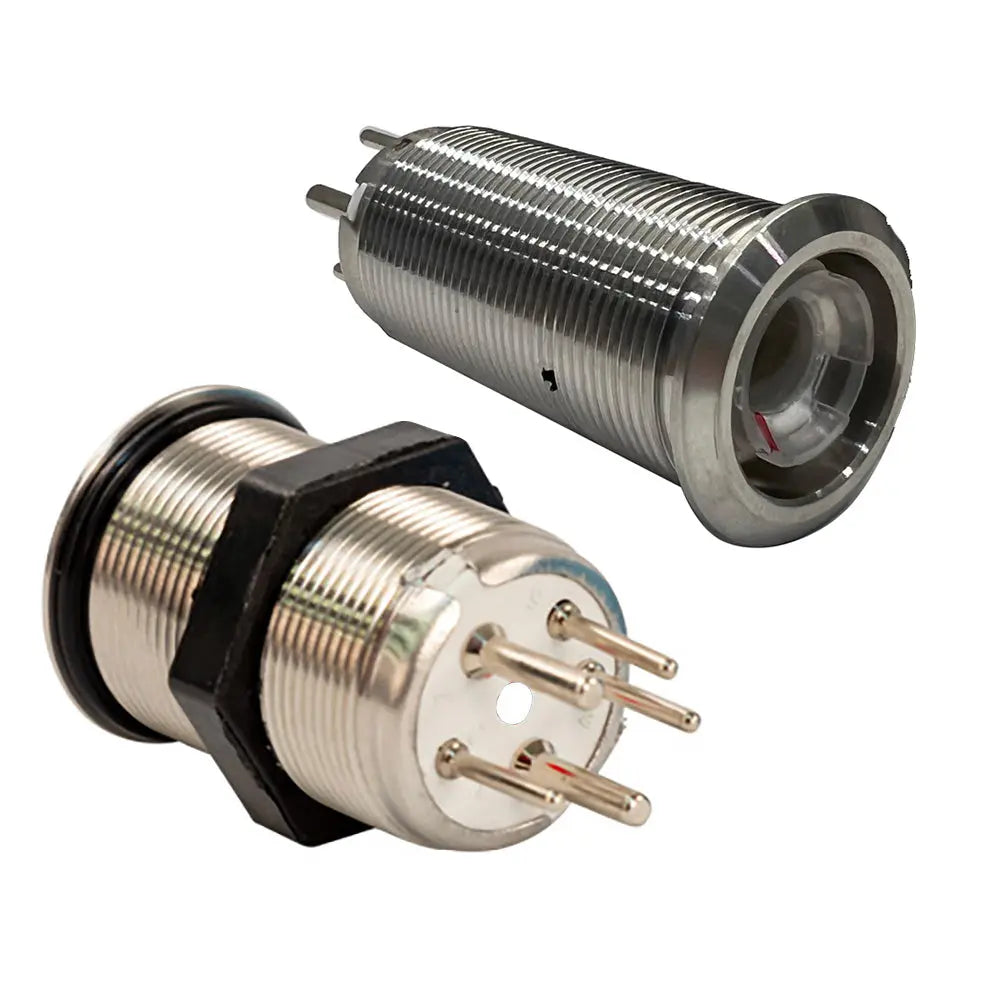

Bluewater 9059-3114 22mm Inrush Push Button Switch with LED Indicators for Marine Control Panels

22mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only

The switch is the core of your control system. Built marine tough with inrush protection and waterproof sealing for reliable performance.

Upgrade your marine switch panel with the 9059 Series 22mm Inrush Protection Switch. Built for heavy-duty marine applications, this switch handles high surge currents with ease - perfect for pumps, motors, and other demanding onboard equipment.

Built for Harsh Marine Conditions:

• Encased in corrosion-resistant SS316 stainless steel
• Rated IP69K waterproof with Bluewaters proprietary Deutsch-style connectors
• Resistant to salt spray, heat, vibration, and shock

Easy to See and Control:

• Blue LED backlighting for night visibility
• LED shifts to bright red when activeinstant confirmation of pump or device status
• Fully detachable actuator for customization of style and function

Reliable Power Handling:

• Rated for 20 amps on a single channel
• Rated for 10 amps per channel in dual-channel use
• Impact-resistant and designed for long-lasting performance

Why Choose the 9059 Switch for Your Marine Switch Panel

This inrush protection switch combines rugged durability with smart design. It installs easily, provides dependable control, and ensures your marine switch panel remains reliable in all conditions.

When you are on the water, trust the 9059 Series to keep your critical systems running smoothly and safely.

Specifications:

• Switch Rating: 20A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Dimensions: View Dimensional Drawings
• Material: Nickel Plated Brass/ Stainless Steel
• LED Color: Blue/Green/Red

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.

Upgrade your marine control system with the Bluewater 9059-3114 22mm inrush push button switch. Designed for demanding marine environments, this switch offers reliable performance with inrush protection and waterproof sealing. Its robust construction features corrosion-resistant SS316 stainless steel, ensuring durability against salt spray, heat, vibration, and shock. The switch is rated IP69K waterproof, making it suitable for harsh conditions, and is compatible with Bluewaters proprietary Deutsch-style connectors for secure, corrosion-resistant connections. Its compact 22mm diameter makes installation straightforward, requiring only a standard drill into materials up to 0.24 inches thick. The switch's core functionality includes handling high surge currents, making it ideal for pumps, motors, and other onboard equipment that demands dependable power control. The switch's design incorporates a fully detachable actuator, allowing customization of style and function to suit your specific needs. The integrated LED indicators enhance visibility in low-light conditions, with blue backlighting for night operation and bright red illumination to confirm active status instantly. Rated for 20 amps on a single channel and 10 amps in dual-channel mode, this switch ensures reliable power handling for critical systems. Its impact-resistant construction and long mechanical and electrical life make it a cost-effective choice for marine applications. Installation involves drilling a 22mm hole, connecting the three contacts for the switch, and two contacts for the LED, providing a simple upgrade process for your existing switch panel. Whether controlling navigation lights, anchor systems, or other vital equipment, the Bluewater 9059-3114 switch offers durability, ease of use, and dependable operation in even the most challenging marine environments.

Features:

• Corrosion-resistant SS316 stainless steel construction for durability

• Rated IP69K waterproof for reliable operation in harsh marine conditions

• Blue, Green, Red LED backlighting for enhanced visibility and status indication

• Handles inrush currents up to 20 amps with high surge protection

• Detachable actuator allows customization of style and functionality

• Rated for 20 amps on a single channel and 10 amps per channel in dual-channel configuration

• Impact-resistant design ensures long-lasting performance

• Simple installation with a 22mm hole, suitable for materials up to 0.24 inches thick

• Built for heavy-duty marine applications, including pumps and motors

• High-quality nickel-plated brass and stainless steel materials for longevity
