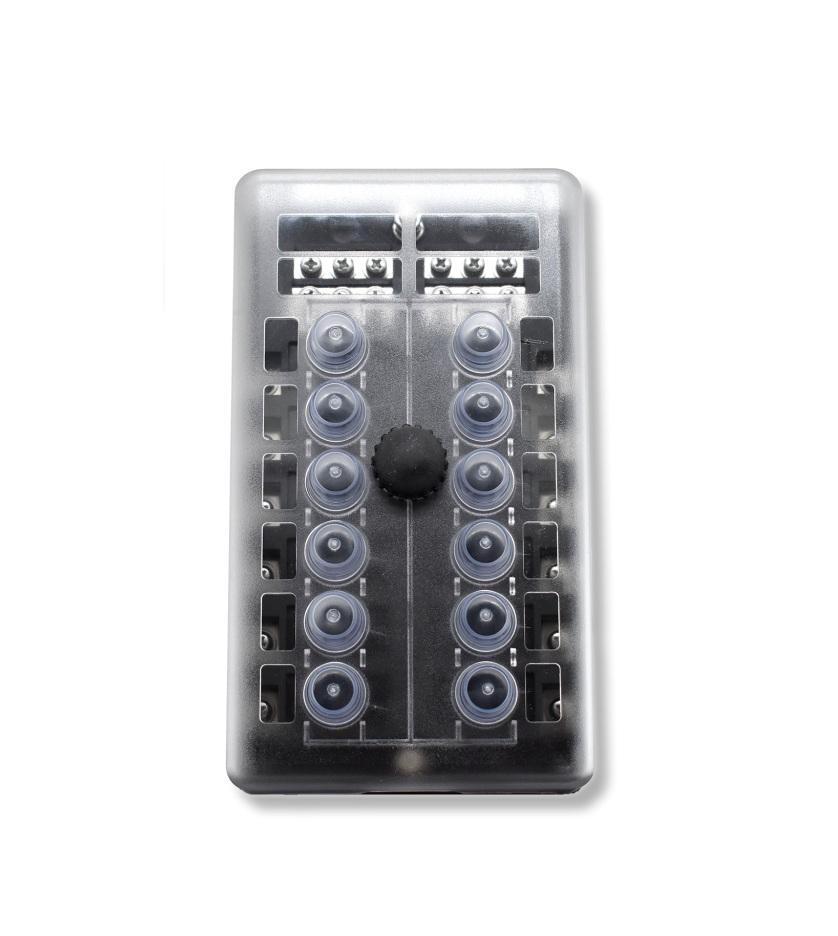

Bluewater Enterprises 12-Position Circuit Breaker Panel with Cover, Part 3200-2001-012

Bluewater 12 Position Circuit Breaker Panel W/Cover

Bluewater Enterprises 12-Position Circuit Breaker Panel with Cover, Part 3200-2001-012, provides dependable resettable circuit protection and organized power distribution for marine and other demanding 12V or 48V DC electrical systems. This panel uses Bluewater 38 Series push-to-reset circuit breakers in place of disposable fuses, allowing you to restore a tripped circuit quickly without carrying replacement fuses.

Built for reliable service in harsh environments, the panel combines nickel-plated copper components, stainless steel hardware, and a durable polycarbonate base. It accepts up to 100 amps of input current at 48V DC, while each output circuit supports up to 25 amps. M5 threaded input studs and M4 threaded output studs provide secure electrical connections for new installations, refits, and upgrades to existing fuse boxes.

The Bluewater Enterprises 3200-2001-012 is designed for straightforward installation with mounting holes arranged for convenient panel placement. Its covered, multi-position layout helps keep circuit protection organized while providing easy access for troubleshooting and reset operations. It is well suited for boats, marine accessories, control panels, and other DC power distribution applications requiring durable, reusable protection.

Specifications
Input terminals: M5 threaded studs
Output terminals: M4 threaded studs, rated up to 25 amps per circuit
Maximum voltage: 48V DC
Input current: 100 amps
Breaker type: 88 Series or Bluewater 38 Series
Materials: Stainless steel, nickel-plated copper, and polycarbonate
Mounting: Pre-spaced mounting holes for panel installation

Features:

• 12-position circuit breaker panel with protective cover
• Resettable protection: Uses push-to-reset breakers instead of disposable fuses
• High capacity: Supports up to 48V DC and 100 amps of input current
• Circuit output rating: Supports up to 25 amps per circuit
• Marine-ready construction: Combines stainless steel, nickel-plated copper, and polycarbonate materials
• Easy installation: Includes pre-spaced mounting holes for straightforward panel placement
• Reliable connections: Uses M5 threaded input studs and M4 threaded output studs
