SKU:BWE312311A025

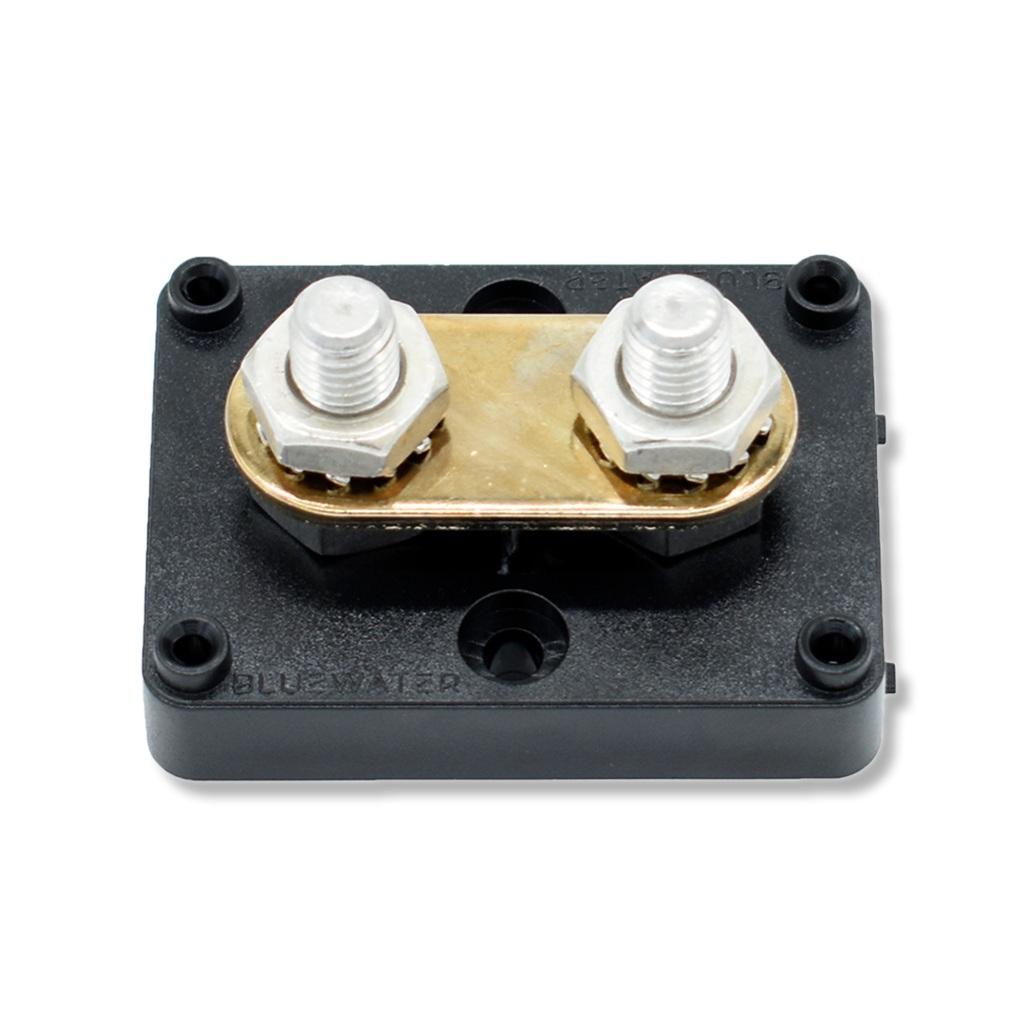

Bluewater Enterprises 2-Position Copper Busbar, Part Number 312311-A-025, is designed to provide dependable power distribution in marine, automotive, and industrial electrical systems. This dual-stud busbar includes an integrated copper link that connects both terminals for continuous conductivity and efficient current transfer. Its compact design supports organized wiring while helping minimize resistance and voltage drop in battery banks, power distribution panels, and other high-current applications.
Built for demanding environments, this copper busbar connector accommodates large-gauge cable lugs and features a durable construction designed to resist corrosion. The two 5/16-inch studs provide secure terminal connections, while the integrated link simplifies installation by maintaining a common electrical path between positions. The busbar is rated for systems up to 48 volts DC and 200 amps, making it a practical choice for reliable low-voltage power management.
Installation is completed using two #10 or 1/4-inch mounting screws through the provided mounting points. The Bluewater Enterprises 312311-A-025 busbar helps keep battery and distribution wiring neat, accessible, and stable over time. It is well suited for battery banks, marine electrical systems, industrial controls, and custom power distribution assemblies where rugged performance and efficient conductivity are required.
Specifications
| Max Voltage | 48V DC |
| Max Amp | 200A |
| Stud Size | 5/16 inch |
| Mounting Screw Size | #10 or 1/4 inch |
| Installation | Mount with two #10 or 1/4-inch screws |
Features:
