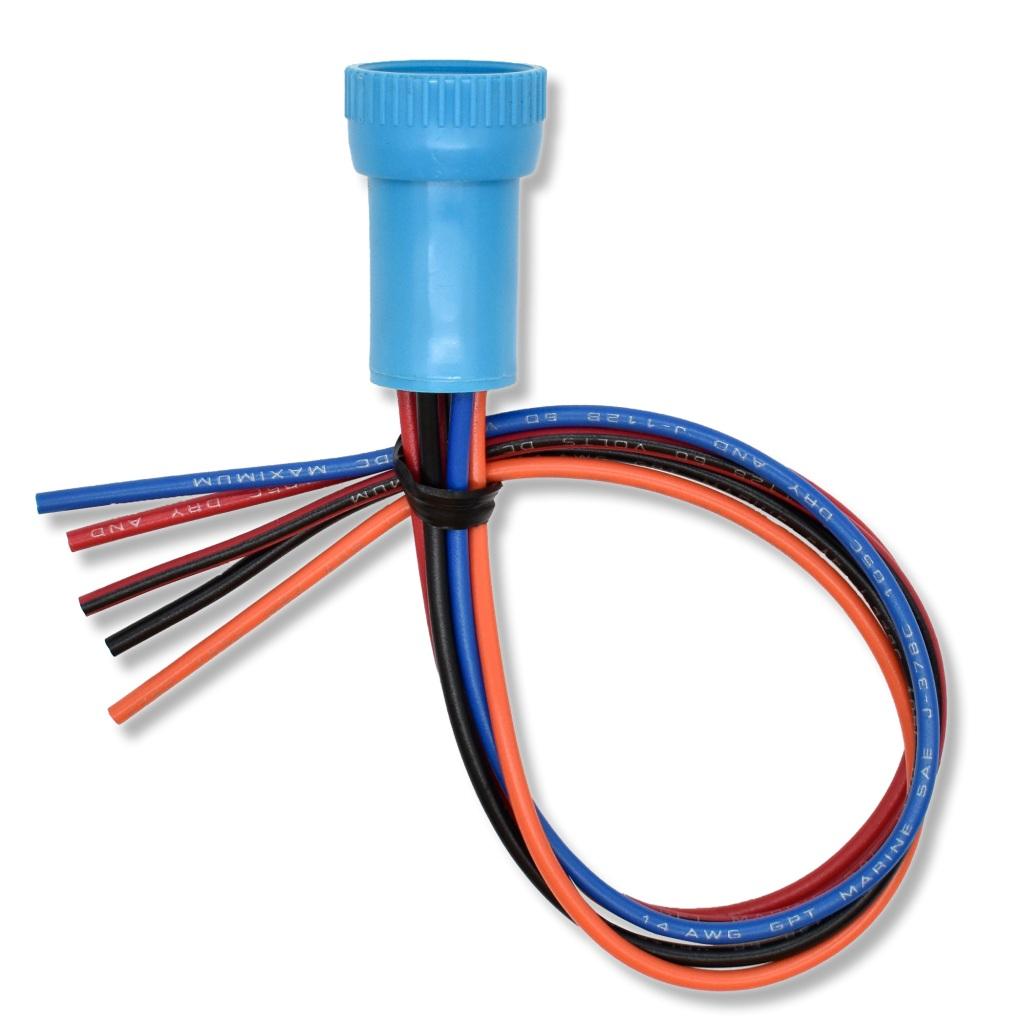

Bluewater Enterprises 22mm Deutsch Switch Harness, 1 Output, 48-Inch Leads, Part 9053-3914-148

Bluewater 22mm Deutsch Switch Harness, 1 Output, 48" Leads

Bluewater Enterprises 22mm Deutsch Switch Harness, Part 9053-3914-148

The Bluewater Enterprises 9053-3914-148 Deutsch-style switch harness provides a secure, plug-and-play connection between compatible 22mm Bluewater electronic switches and load circuits. Its pre-wired design eliminates the need for crimping during installation, helping simplify wiring in marine, off-road, automotive, and industrial applications.

This 4-wire harness features one output and includes a dummy plug for the unused port. Color-coded leads make it easier to identify the input, output, ground, and LED wires, while the 48-inch lead length supports flexible routing through control panels and equipment enclosures. The quick-swap design also helps simplify switch replacement without requiring panel wiring to be untangled or completely reworked.

Built with a sealed Deutsch-style connector, this harness provides IP69K-rated protection against dust, water, and corrosion, including demanding environments where exposure to moisture, vibration, and contaminants is common. It is compatible with Bluewater 22mm 9059 and 9060 Series switches and uses DT-style and DTP-style female terminals for a dependable connection.

Specifications
Switch Compatibility: Bluewater 22mm 9059 and 9060 Series switches
Lead Length: 48 inches
Connector: Deutsch-style, IP69K sealed
Terminals: 3 DT-style and 2 DTP-style female terminals
Wiring: Color-coded input, output, ground, and LED leads
Outputs: 1 output, 4-wire configuration

Features:

• Plug-and-Play: Pre-wired Deutsch-style harness connects compatible Bluewater 22mm switches to load circuits without crimping.
• Single Output: Four-wire configuration with a dummy plug for the unused port.
• IP69K Sealed: Helps protect the connection from dust, water, and corrosion, including full submersion conditions.
• Color-Coded Leads: Clearly identifies input, output, ground, and LED wires for easier installation.
• Quick Swap: Simplifies switch replacement without requiring panel wiring to be untangled.
• Broad Application: Suitable for marine, off-road, automotive, and industrial installations.
