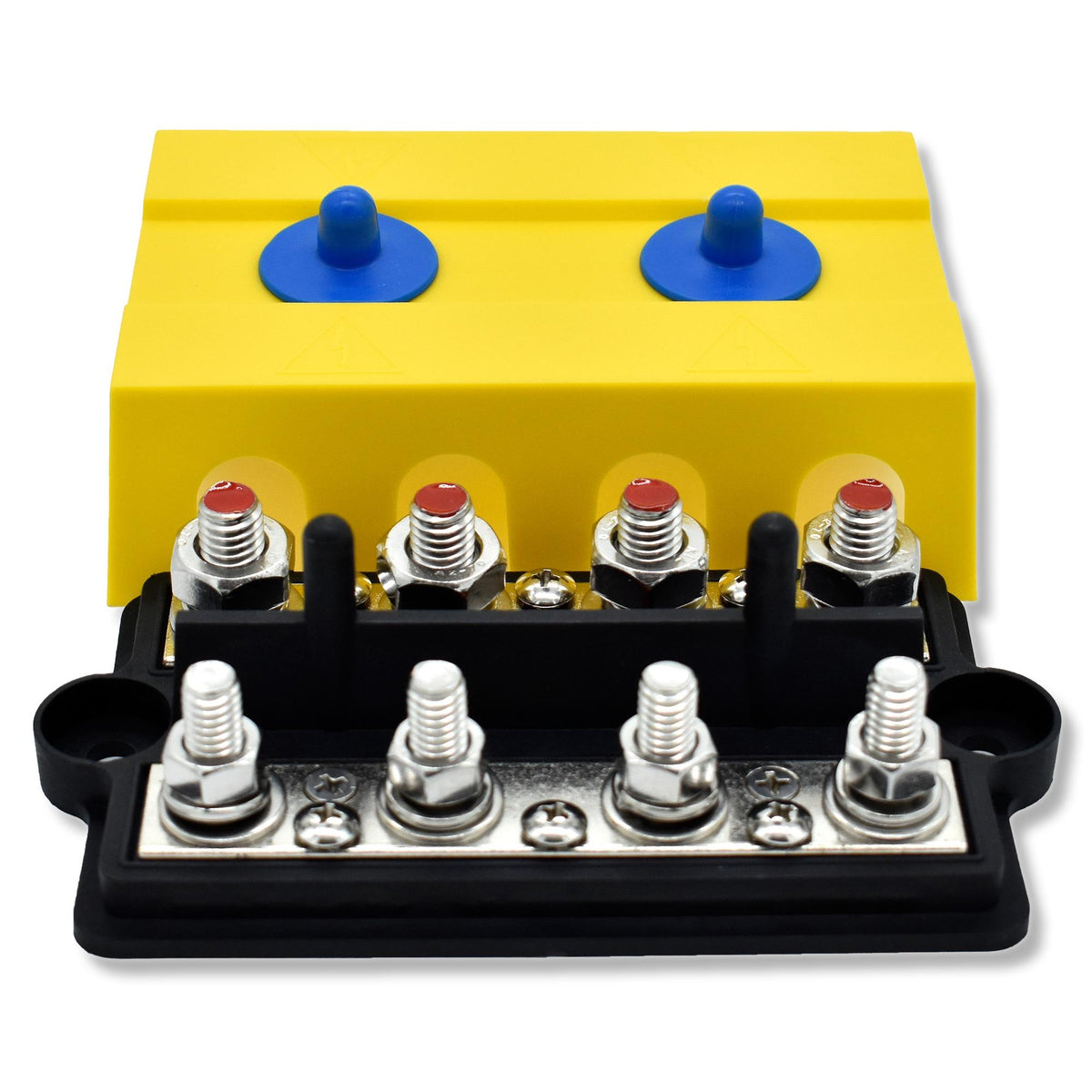

Bluewater Enterprises 313856-B-023 Dual 4-Gang Busbar, 250A, 3/8-Inch and 5/16-Inch Studs

Bluewater Dual 4 Gang Busbar, 3/8" & 5/16" Studs, 250A, Yellow Cover

The Bluewater Enterprises 313856-B-023 Dual 4-Gang Busbar provides two separate 4-gang busbars in one compact unit. Its dual-circuit configuration can support positive and negative distribution or help manage isolated zones within a power system.

Rated for up to 250 amps, this busbar is designed for high-capacity power distribution while helping keep wiring organized. It features four 3/8-inch studs and four 5/16-inch studs, providing two stud sizes for connection flexibility.

A yellow protective cover is included to help shield the connection points. The busbar is described as corrosion-resistant and suitable for demanding environments, including boats, RVs and industrial panels.

Installation uses two #10 or 1/4-inch screws. The mounting holes are 1/4 inch, with 5 inches of hole spacing. The compact design helps streamline installation where organized dual-circuit power distribution is required.

Features:

• Dual 4-Gang Configuration: Combines two separate 4-gang busbars in one unit.
• Flexible Circuit Organization: Supports positive and negative distribution or separate isolated zones.
• 250-Amp Capacity: Provides high-capacity power distribution.
• Dual Stud Sizes: Includes 3/8-inch and 5/16-inch studs.
• Protective Cover: Includes a yellow cover for the busbar.
• Corrosion-Resistant Construction: Designed for demanding environments.
• Mounting Options: Installs with two #10 or 1/4-inch screws.
