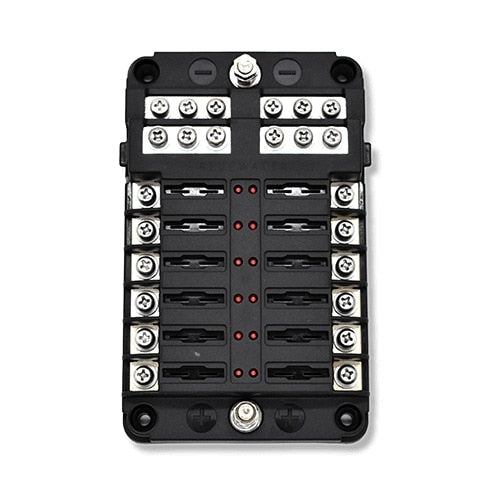

Bluewater Enterprises 3200-0001-012 12-Position Fuse Block with LED Indicators

Bluewater 12 Position Fuse Block with LED Indicators, Low Cover & Ground Screw

The Bluewater Enterprises 3200-0001-012 fuse block centralizes circuit protection for organized wiring in marine and mobile 12–48V DC systems. It provides 12 protected circuits, with support for up to 30A per circuit and a 100A total input rating.

Integrated LED indicators illuminate when a fuse blows, making circuit troubleshooting faster and easier. M5 threaded input studs support up to 100A, while M4 threaded output studs are rated up to 25A per circuit. The block is compatible with 88 Series and BW 38 Series breakers.

A low-profile cover helps protect the fuses, and the included ground screw provides a clean negative connection. Construction combines stainless steel, nickel-plated copper and polycarbonate for corrosion resistance in demanding installations.

Mounting is provided through 0.1695-inch holes with 4.725-inch height and 2.725-inch width spacing. The low-profile cover is included.

Features:

• 12 Protected Circuits: Supports up to 30A per circuit with a 100A total input rating.
• LED Blown-Fuse Indicators: Integrated LEDs identify a blown fuse at a glance.
• Heavy-Duty Terminals: Uses M5 threaded input studs rated to 100A and M4 threaded output studs rated to 25A per circuit.
• Low-Profile Cover: Helps protect the fuses while maintaining a compact design.
• Ground Screw: Provides a designated connection for the negative side of the circuit.
• Corrosion-Resistant Construction: Made with stainless steel, nickel-plated copper and polycarbonate.
• Breaker Compatibility: Compatible with 88 Series and BW 38 Series breakers.
• Mounting: Features 0.1695-inch mounting holes with 4.725-inch height and 2.725-inch width spacing.
