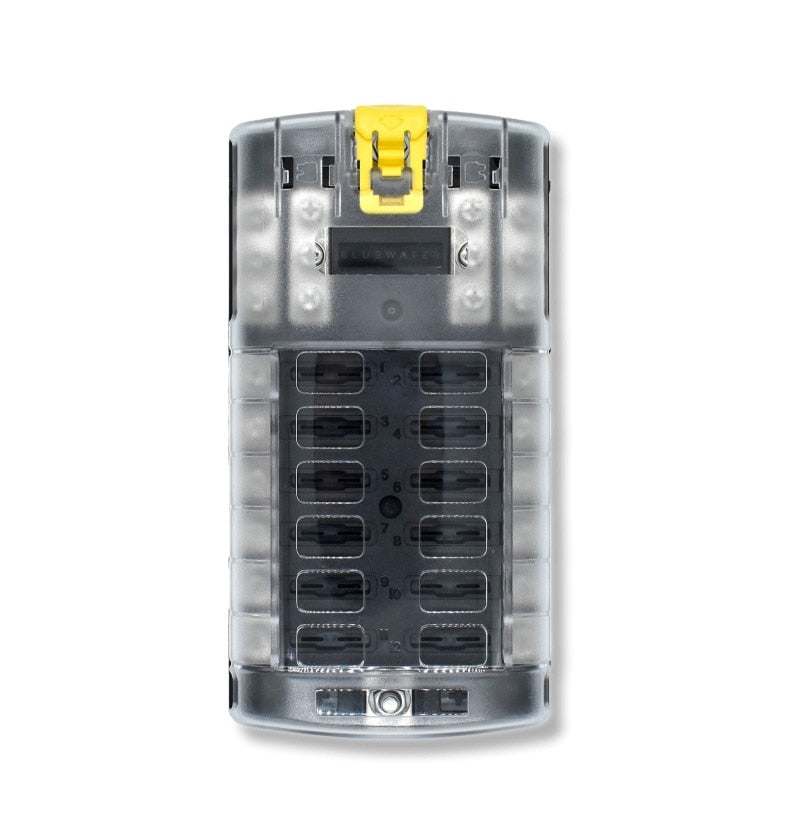

Bluewater Enterprises 3200-3003-012 12-Position ATC Marine Fuse Block with Yellow Slide and Ground Block

Bluewater 12 Position Fuse Block ATC w/Yellow Slide w/Ground Block..

Bluewater Enterprises 3200-3003-012 12-Position ATC Marine Fuse Block

The Bluewater Enterprises 3200-3003-012 fuse block provides a clean, organized way to manage and protect up to 12 independent low-voltage electrical circuits. Designed for boats, RVs, and off-grid power systems, this ATC fuse block centralizes circuit connections while helping create a tidy, serviceable electrical installation. The yellow slide and integrated ground block support convenient circuit identification and wiring organization.

Rated for systems up to 48 volts DC and input current up to 100 amps, the Bluewater 3200-3003-012 uses M5 threaded studs for the main power input and M4 threaded studs for circuit outputs. Each output supports up to 25 amps, making the block suitable for a wide range of marine and recreational vehicle accessories. It is compatible with 88 Series and BW 38 Series breakers for flexible circuit protection options.

Constructed with stainless steel hardware, nickel-plated copper conductors, and a durable polycarbonate housing, this fuse block is built for demanding electrical environments. The mounting design supports straightforward installation while maintaining a professional appearance. Whether you are installing a new power distribution system or upgrading an existing one, the Bluewater Enterprises 3200-3003-012 delivers dependable circuit separation and organized protection.

Specifications
Max Voltage: 48V DC
Input Current: 100A maximum
Breaker Type: 88 Series and BW 38 Series
Input Terminals: M5 threaded studs, 100A maximum
Output Terminals: M4 threaded studs, 25A maximum per circuit
Materials: Stainless steel, nickel-plated copper, and polycarbonate
Mounting: 0.1750-inch mounting holes
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features:

• 12 independent ATC fuse positions for organized low-voltage circuit protection
• Supports up to 48V DC systems and 100A maximum input current
• M5 threaded input studs and M4 threaded output studs
• Supports up to 25A per output circuit
• Compatible with 88 Series and BW 38 Series breakers
• Stainless steel hardware, nickel-plated copper conductors, and polycarbonate housing
• Includes a yellow slide and integrated ground block for organized wiring
