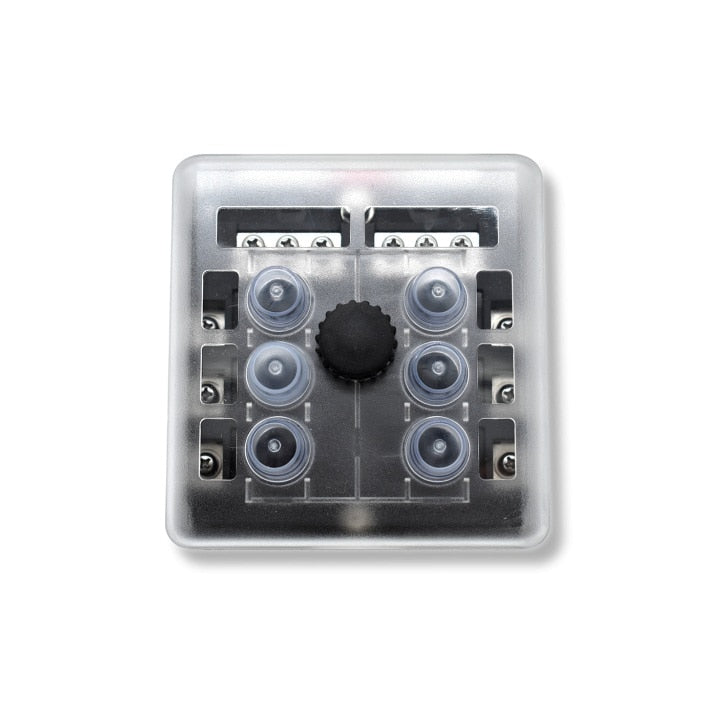

Bluewater Enterprises 6-Position Circuit Breaker Panel with Cover, 3200-2001-006

Bluewater 6 Position Circuit Breaker Panel W/Cover

Bluewater Enterprises 6-Position Circuit Breaker Panel with Cover

The Bluewater Enterprises 3200-2001-006 circuit breaker panel provides dependable resettable circuit protection for marine, automotive, and other 12V or 24V DC electrical systems. Designed for use with 38 Series push-to-reset breakers, this six-position panel replaces disposable fuses with convenient thermal circuit protection. When a circuit trips, press the breaker to restore power without replacing a fuse or keeping spare fuses on hand.

Built for demanding electrical environments, the panel combines a durable polycarbonate base with nickel-plated copper components and stainless steel hardware. It supports systems up to 48V DC and accepts an input of up to 100A, while each output circuit is rated for up to 25A. M5 threaded input studs and M4 output studs provide secure electrical connections for clean, organized power distribution.

The Bluewater 3200-2001-006 is suitable for new installations, electrical upgrades, and replacement fuse-box applications. Mounting holes are arranged for straightforward panel placement, and the included cover helps protect the breaker assembly and connections. Use compatible 88 Series or BW 38 Series breakers to configure the panel for the specific circuits being protected. Professional installation is recommended, and all wiring should be sized and fused according to the application and applicable electrical standards.

Specifications
Input terminals: M5 threaded studs
Output terminals: M4 studs, 25A maximum per circuit
Maximum voltage: 48V DC
Breaker type: 88 Series or BW 38 Series
Input terminal rating: 100A maximum
Material: Stainless steel, nickel-plated copper, and polycarbonate
Mounting holes: 0.1695 inches
Prop 65 warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features:

• Resettable protection: Uses 38 Series push-to-reset circuit breakers instead of disposable fuses.
• Six-position design: Provides organized protection and power distribution for six individual circuits.
• High electrical capacity: Supports up to 48V DC with a 100A maximum input rating.
• Circuit output rating: Each output circuit is rated for up to 25A.
• Marine-ready construction: Combines nickel-plated copper, stainless steel hardware, and a durable polycarbonate base.
• Secure connections: Includes M5 threaded input studs and M4 output studs.
• Easy installation: Mounting holes are arranged for straightforward panel placement.
• Protective cover: Helps shield the breaker assembly and electrical connections.
