SKU:BWE32000001006

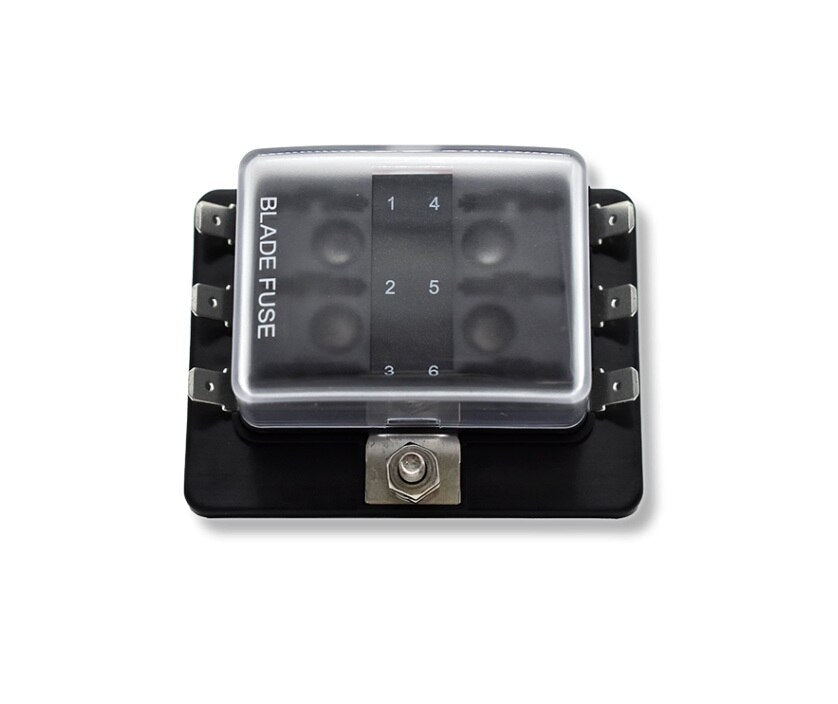

The Bluewater Enterprises 3200-0001-006 6-Position Fuse Block provides organized, reliable protection for multiple low-voltage circuits in marine, automotive, RV, and mobile electrical installations. Designed for standard fuses, it supports up to 30 amps per circuit and helps consolidate wiring into a clean, accessible panel. The low cover, integrated LED indication, and ground screw provide practical features for installation, circuit monitoring, and service.
Built for systems up to 48 volts DC, this Bluewater fuse block accepts an input current of up to 100 amps. Its .250-inch quick-connect tabs are rated for 30 amps each, supporting secure connections for individual circuits. The input uses M5 threaded studs with a 100-amp maximum rating, while the output uses M4 threaded studs rated up to 25 amps. The block is compatible with 88 Series and BW 38 Series breaker types.
Stainless steel, nickel-plated copper, and polycarbonate construction provide dependable durability in demanding environments. Mounting holes measure approximately 0.1695 inches, and the mounting-hole pattern for this 6-position model is approximately 0.65 inches high by 1.125 inches wide. These compact mounting dimensions help simplify installation where panel space is limited.
Use the Bluewater Enterprises 3200-0001-006 to create a neat, efficient circuit-protection center for boats, vehicles, and other 48V DC electrical systems. Its multi-position layout, LED circuit indication, low-profile cover, and dedicated grounding provision make it a practical choice for organized wiring and ongoing electrical maintenance. California Proposition 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Features:
