SKU:BWE770009600050

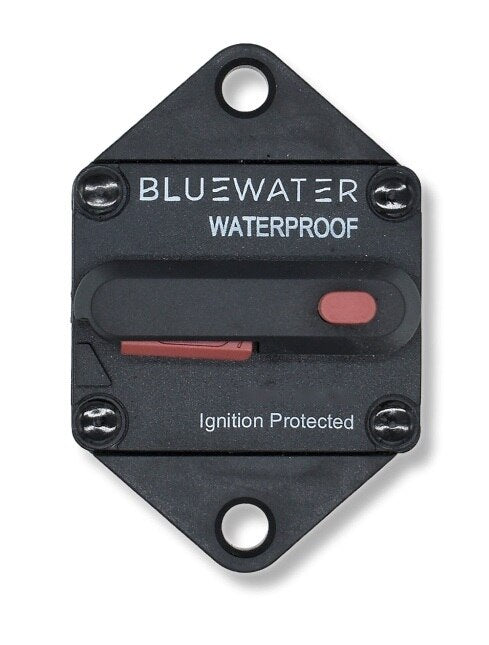

Bluewater Enterprises 77000-9600-050 50A High-Amp Panel Mount Circuit Breaker
Protect auxiliary and accessory circuits with this resettable Bluewater Enterprises panel mount circuit breaker. Rated for 50 amps, it is designed for heavy-duty marine, RV, truck, and bus electrical systems, including trolling motors, inverters, winches, and other high-current equipment. The breaker supports 12V, 24V, 32V, and 48V DC systems for versatile installation across a range of vehicle and vessel applications.
Built for demanding operating environments, the 77000-9600-050 features a rugged thermoplastic housing and nickel-plated copper components for dependable performance and corrosion resistance. Its panel mount configuration provides a clean, accessible installation, while standard 1/4-inch lugs help create secure electrical connections. Depending on the system design, compatible configurations may include automatic reset, manual reset, or switchable manual reset operation.
With interrupting capacity up to 3,000 amps at 14V, 30V, and 48V DC, this Bluewater circuit breaker helps protect wiring and connected equipment from damaging overloads and short circuits. The resettable design allows the circuit to be restored without replacing a fuse after the fault has been addressed. Verify the required reset configuration, system voltage, wiring, and terminal connections before installation.
| Amp Rating | 50 amps |
| Mount Type | Panel mount |
| Voltage Compatibility | 12V, 24V, 32V, and 48V DC |
| Interrupting Capacity | Up to 3,000 amps at 14V, 30V, and 48V DC |
| Connection | Standard 1/4-inch lugs |
Features:
