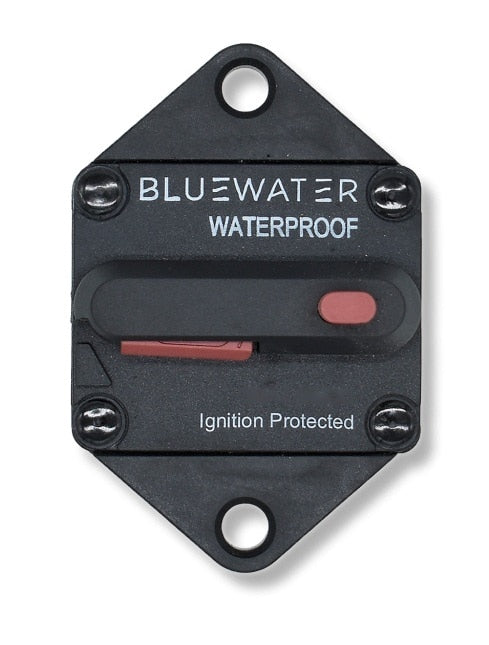

Bluewater Enterprises 77000-9600-060 60A High-Amp Panel Mount Circuit Breaker

Bluewater Enterprises 77000-9600-060 60A Panel Mount Circuit Breaker

Protect heavy-duty DC electrical systems with the Bluewater Enterprises 77000-9600-060 high-amp panel mount circuit breaker. Rated for 60 amps, this resettable breaker helps safeguard auxiliary and accessory circuits in marine vessels, RVs, trucks, and buses. It is well suited for demanding applications including trolling motors, inverters, winches, and other high-current equipment.

The breaker is compatible with 12V, 24V, 32V, and 48V DC systems, providing flexible protection across a range of vehicle and marine electrical configurations. Its panel mount design supports organized installation, while standard 1/4 in lugs allow quick, secure cable connections using commonly available terminals.

Built for challenging operating conditions, the Bluewater 77000-9600-060 features a rugged thermoplastic housing and nickel-plated copper components for dependable performance and improved corrosion resistance. The circuit breaker is available in automatic, manual, or switchable manual reset configurations; verify the required reset style for your application before installation. Its interrupting capacity reaches up to 3,000 amps at 14V, 30V, and 48V DC, helping provide reliable fault protection in high-current systems.

Features:

• 60A rating for high-current auxiliary and accessory circuit protection

• Compatible with 12V, 24V, 32V, and 48V DC electrical systems

• Panel mount design for organized marine, RV, truck, and bus installations

• Automatic, manual, or switchable manual reset configurations available

• Rugged thermoplastic housing with nickel-plated copper components

• Accepts standard 1/4 in lugs for quick, secure connections

• Interrupting capacity up to 3,000A at 14V, 30V, and 48V DC
