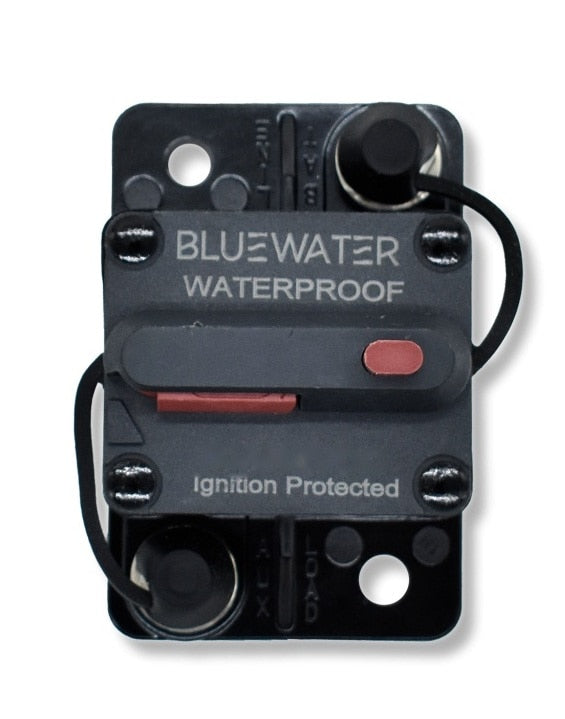

Bluewater Enterprises 77000-9900-090 90A High-Amp Surface Mount Circuit Breaker

Bluewater Enterprises 77000-9900-090 90A Surface Mount Circuit Breaker

Protect heavy-duty DC electrical systems with the Bluewater Enterprises 77000-9900-090 high-amp surface mount circuit breaker. Rated at 90 amps, this resettable breaker is designed for marine, RV, truck, bus, and other demanding applications where dependable overcurrent protection is essential. It helps safeguard auxiliary and accessory circuits supporting equipment such as trolling motors, inverters, winches, and other high-draw electrical loads.

The Bluewater 77000-9900-090 is compatible with 12V, 24V, 32V, and 48V DC systems, providing flexible installation options across a range of vehicles and vessels. Its rugged thermoplastic housing and nickel-plated copper components offer durability and corrosion resistance in vibration-prone and harsh marine environments. The surface mount design supports organized installation, while standard 1/4-inch lugs allow quick, secure cable connections.

Designed for convenient circuit management, this breaker is available in auto-reset, manual-reset, or switchable manual-reset configurations. It provides an interrupting capacity of up to 3,000 amps at 14V, 30V, and 48V DC, helping limit damage from overloads and short circuits. Use the Bluewater Enterprises 77000-9900-090 as a reliable protection solution for high-current accessory and auxiliary circuits.

Features:

• 90-amp high-current circuit protection

• Surface mount design for secure, space-efficient installation

• Compatible with 12V, 24V, 32V, and 48V DC electrical systems

• Auto-reset, manual-reset, and switchable manual-reset configurations available

• Rugged thermoplastic housing with nickel-plated copper components

• Accepts standard 1/4-inch lugs for quick, secure connections

• Interrupting capacity up to 3,000 amps at 14V, 30V, and 48V DC

• Suitable for marine, RV, truck, bus, trolling motor, inverter, and winch applications
