SKU:BWE770009900120

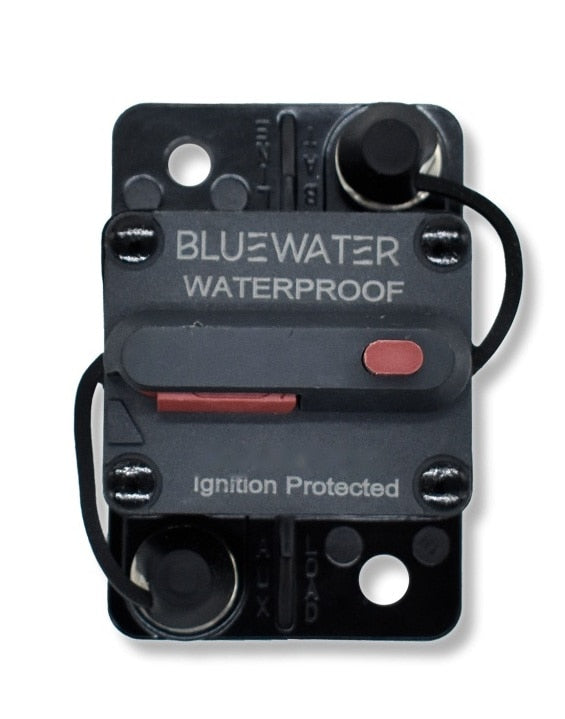

Bluewater Enterprises 77000-9900-120 High-Amp Surface Mount Circuit Breaker
The Bluewater Enterprises 77000-9900-120 is a 120-amp resettable circuit breaker designed to provide dependable overcurrent protection for heavy-duty DC electrical systems. Its surface-mount configuration is well suited for marine, RV, truck, bus, and utility applications where reliable circuit protection is required for auxiliary and accessory equipment, including trolling motors, inverters, winches, and other high-current loads.
The circuit breaker is compatible with 12V, 24V, 32V, and 48V DC systems and offers an interrupting capacity of up to 3,000 amps at 14V, 30V, and 48V DC. Depending on the application, reset configurations may include automatic, manual, or switchable manual reset operation. This flexibility allows the breaker to be selected for installations requiring automatic recovery or controlled circuit restoration.
Constructed with a rugged thermoplastic housing and nickel-plated copper components, the Bluewater Enterprises 77000-9900-120 is built to handle vibration, demanding service conditions, and harsh marine environments. Standard 1/4-inch lugs support quick, secure connections and simplify installation with commonly used high-current terminals. The compact surface-mount design helps position the breaker near the protected circuit while providing convenient access for inspection and reset operation.
Specifications
| Amp Rating | 120A |
| Mount Type | Surface Mount |
| Voltage Compatibility | 12V, 24V, 32V, 48V DC |
| Interrupting Capacity | Up to 3,000A at 14V, 30V, 48V DC |
| Connection | Standard 1/4-inch lugs |
Features:
