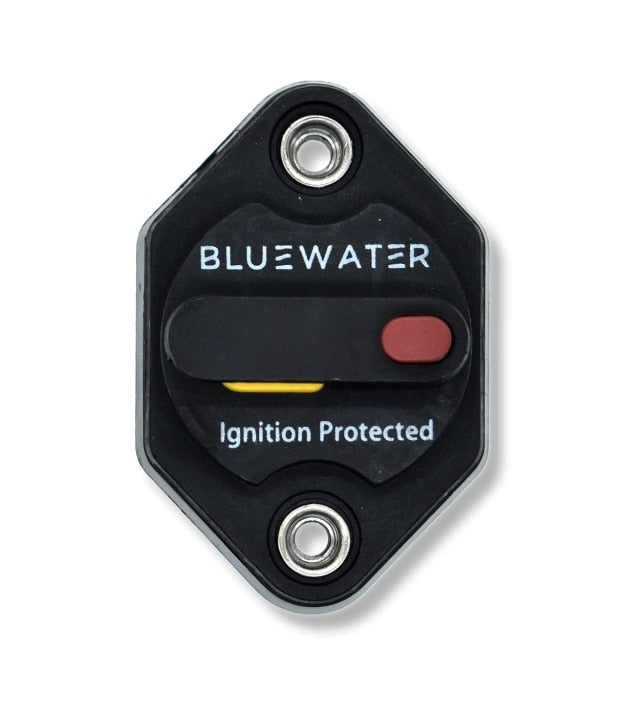

Bluewater Enterprises 78000-9600-30 Mid-Range 30 Amp Panel Mount Circuit Breaker

Bluewater Mid-Range 30A Panel Mount Circuit Breaker

Bluewater Enterprises 78000-9600-30 Mid-Range Panel Mount Circuit Breaker

The Bluewater Enterprises 78000-9600-30 is a 30 amp panel mount circuit breaker designed to provide dependable overload and short-circuit protection for moderate-load DC electrical systems. With compatibility for 12V and 32V DC applications, it is well suited for marine, RV, automotive, and mobile power systems, including auxiliary and accessory circuits.

High interrupting capacity up to 2,500 amps helps protect connected wiring and equipment during short-circuit conditions. The rugged thermoplastic housing and nickel-plated copper components are designed to withstand vibration, moisture, and demanding marine environments. Its panel mount configuration provides a clean, professional installation, while the connection uses #10 ring terminals for secure electrical attachment.

Installation: Use #10 ring terminals to connect the Bluewater Enterprises 78000-9600-30 circuit breaker. This model is intended for panel mounting; surface mount versions are also available. Always verify system voltage, wire sizing, terminal compatibility, and applicable installation requirements before use.

Specifications

Current Rating	30A
Maximum Voltage	32V DC
Voltage Compatibility	12V and 32V DC
Interrupting Capacity	Up to 2,500A
Mounting	Panel mount
Material	Thermoplastic housing with nickel-plated copper components
Terminals	#10 ring terminal

Features:

• 30 Amp Rating: Provides overload and short-circuit protection for moderate-load DC circuits.
• 12V and 32V DC Compatibility: Suitable for marine, RV, automotive, and mobile electrical systems.
• High Interrupting Capacity: Handles short-circuit currents up to 2,500 amps for dependable protection.
• Panel Mount Design: Installs cleanly into an electrical panel for an organized, professional setup.
• Rugged Construction: Combines a durable thermoplastic housing with nickel-plated copper components.
• Marine Grade: Designed to withstand vibration, moisture, and demanding marine environments.
• #10 Ring Terminal Connection: Supports secure wiring connections during installation.
