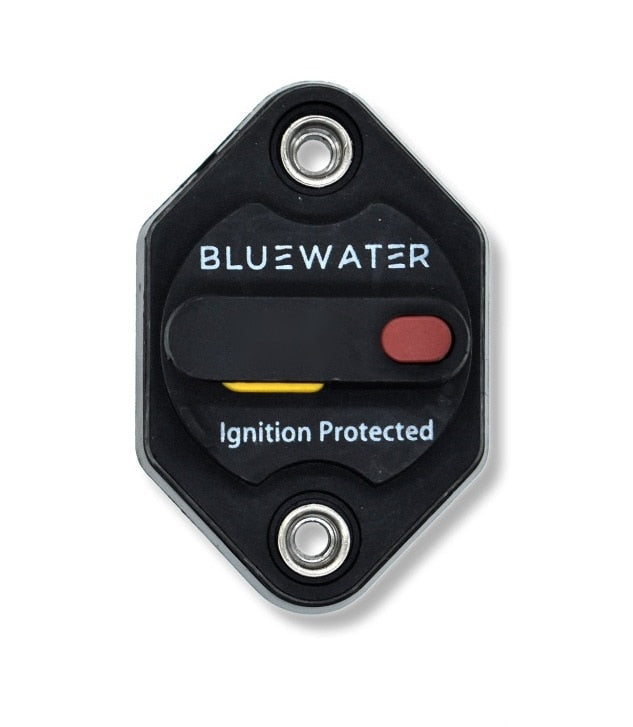

Bluewater Enterprises 78000-9600-40 Mid-Range 40A Panel Mount Circuit Breaker

Bluewater Mid-Range 40A Panel Mount Circuit Breaker

Bluewater Enterprises 78000-9600-40 Mid-Range 40A Panel Mount Circuit Breaker

The Bluewater Enterprises 78000-9600-40 circuit breaker provides dependable overload and short-circuit protection for moderate-load DC electrical systems. With a 40 amp rating and compatibility with 32V DC systems, it is well suited for marine, RV, automotive, and mobile applications, including auxiliary and accessory circuits.

Designed for clean panel installation, this panel mount circuit breaker offers a practical solution where organized, accessible circuit protection is required. Its high interrupting capacity of up to 2,500 amps helps manage fault conditions, while the rugged thermoplastic housing and nickel-plated copper components provide durability in demanding environments exposed to vibration, moisture, and marine conditions. Use #10 ring terminals for electrical connections. Surface mount versions are also available for installations requiring a different mounting configuration.

Specifications

Current Rating	40A
Maximum Voltage	32V DC
Voltage Compatibility	32V DC systems
Interrupting Capacity	Up to 2,500A
Mounting	Panel mount
Material	Thermoplastic housing with nickel-plated copper components
Terminals	#10 ring terminals

Features:

• 40A Rating: Provides reliable overload and short-circuit protection for moderate-load DC circuits.
• 32V DC Compatibility: Suitable for marine, RV, automotive, and mobile electrical systems.
• High Interrupting Capacity: Handles short-circuit conditions up to 2,500A.
• Panel Mount Design: Installs cleanly in an electrical panel for convenient access and organized wiring.
• Rugged Construction: Combines a thermoplastic housing with nickel-plated copper components.
• Marine-Ready Build: Designed to withstand vibration, moisture, and demanding marine environments.
• Installation: Connect using #10 ring terminals.
