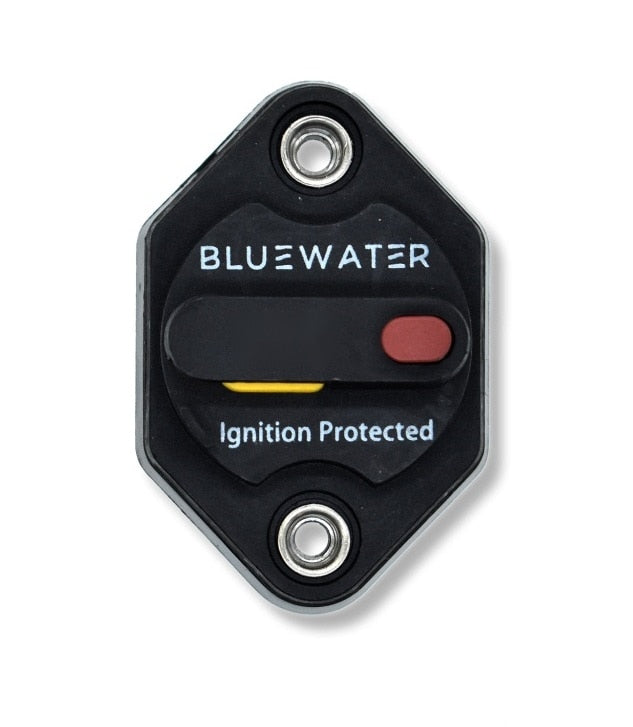

Bluewater Enterprises 78000-9600-50 Mid-Range 50A Panel Mount Circuit Breaker

Bluewater Mid-Range 50A Panel Mount Circuit Breaker

Bluewater Enterprises 78000-9600-50 Mid-Range 50A Panel Mount Circuit Breaker

Protect moderate-load direct-current electrical systems with the Bluewater Enterprises 78000-9600-50 circuit breaker. Rated for 50 amps, this panel mount breaker provides dependable overload and short-circuit protection for auxiliary, accessory, and other DC circuits commonly found in marine, RV, and mobile electrical applications.

Designed for systems up to 32 volts DC, this breaker offers voltage compatibility for 12- and 32-volt DC applications. Its interrupting capacity of up to 2,500 amps helps provide reliable protection during short-circuit events. The rugged thermoplastic housing and nickel-plated copper components are built to withstand vibration, moisture, and demanding marine environments.

The panel mount configuration provides a clean, accessible installation, while #10 ring terminals support secure electrical connections. Follow appropriate electrical practices and manufacturer guidance during installation. Surface mount versions are also available for applications requiring an alternative mounting arrangement.

Specifications
Current Rating: 50A
Maximum Voltage: 32V DC
Voltage Compatibility: 12/32V DC
Interrupting Capacity: Up to 2,500A
Mounting: Panel mount
Material: Thermoplastic housing with nickel-plated copper components
Terminals: #10 ring terminal

Features:

• 50-amp rating for overload and short-circuit protection in moderate-load DC circuits
• Compatible with 12- and 32-volt DC marine, RV, and mobile electrical systems
• Interrupting capacity of up to 2,500 amps for dependable short-circuit protection
• Panel mount design for clean, accessible installation
• Rugged thermoplastic housing with nickel-plated copper components
• Marine-grade construction designed to withstand vibration, moisture, and harsh environments
• Uses #10 ring terminals for secure electrical connections
