SKU:BWE78000960060

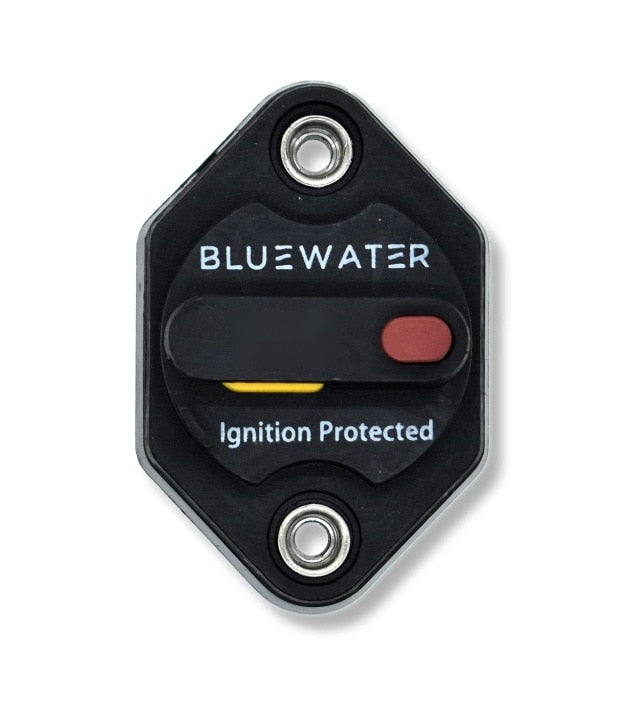

Bluewater Enterprises 78000-9600-60 Mid-Range 60A Panel Mount Circuit Breaker
Protect moderate-load DC electrical systems with the Bluewater Enterprises 78000-9600-60 circuit breaker. Designed for marine, RV, and mobile applications, this 60-amp breaker provides dependable overload and short-circuit protection for auxiliary, accessory, and other DC circuits. Its panel-mount design supports a clean, organized installation in electrical panels and equipment enclosures.
The breaker is compatible with 12- and 32-volt DC systems and offers an interrupting capacity of up to 2,500 amps for reliable fault protection. A rugged thermoplastic housing and nickel-plated copper components help it withstand vibration, moisture, and demanding marine environments. The connection uses #10 ring terminals for secure and serviceable wiring.
Installation: Connect the breaker using #10 ring terminals and follow applicable electrical and marine installation practices. Verify circuit requirements and system voltage before installation. The Bluewater Mid-Range series also includes surface-mount configurations for applications that require an alternative mounting arrangement.
Specifications
Current Rating: 60 amps
Maximum Voltage: 32V DC
Voltage Compatibility: 12V and 32V DC systems
Interrupting Capacity: Up to 2,500 amps
Mounting: Panel mount
Material: Thermoplastic housing with nickel-plated copper components
Terminals: #10 ring terminal
Features:
