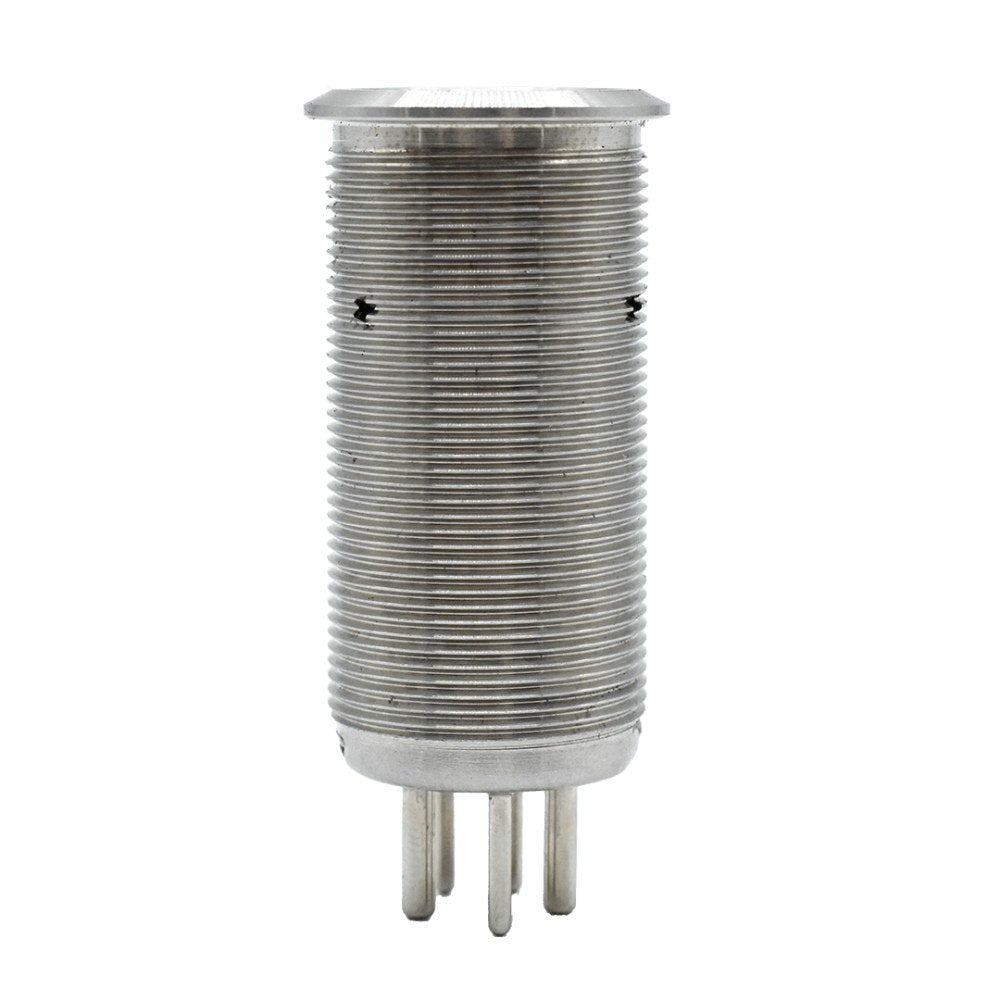

Bluewater Enterprises 9057-1113 19mm Electronic Push Button Switch, Off/On, Blue/Red LED

Bluewater 19mm Electronic Push Button Switch, Off/On, Blue/Red LED

Bluewater Enterprises 9057-1113 Electronic Push Button Switch provides reliable latching on/off control with clear visual status indication. The blue LED illuminates when the switch is off and changes to red when the circuit is active, making it easy to monitor electrical functions from the helm, dashboard, or control panel.

Designed for marine electrical systems, this compact 19mm switch features an IP69K waterproof rating for protection against salt spray, washdowns, and submersion. Its corrosion-resistant SS316 stainless steel bezel and nickel-plated brass construction provide dependable performance in demanding marine environments. The low-profile design is well suited for crowded dashboards and installations where panel space is limited.

The Bluewater Enterprises 9057-1113 uses a proprietary Deutsch-style connector for fast, clean wiring and simplified switch replacement. The detachable actuator can be customized to support a range of control-panel configurations. Installation requires a 19mm mounting hole in material up to 1/4 inch thick, along with a compatible Bluewater 19mm harness. The switch supports 15 amps at 12 to 24 volts DC, with a rated mechanical life of 50,000 cycles and an electrical life of 10,000 cycles. Compatible harness 9057-4914 is sold separately.

Specifications
Function: Latching off/on
LED indicators: Blue when off and red when on
Voltage and current: 15 amps at 12 to 24 volts DC
Protection rating: IP69K
Construction: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style

Features:

• Latching Off/On: Push once to turn the circuit on and push again to turn it off.
• Blue/Red LED Indicator: Blue backlighting shows the off state, while red indicates the circuit is active.
• Compact 19mm Design: Low-profile construction fits tight dashboards and crowded electrical panels.
• IP69K Waterproof Protection: Sealed construction withstands salt spray, washdowns, and submersion.
• SS316 Stainless Steel Bezel: Corrosion-resistant materials support dependable use in harsh marine environments.
• Plug-In Installation: Deutsch-style connector enables fast wiring and convenient switch replacement.
• High Cycle Life: Rated for up to 50,000 mechanical cycles and 10,000 electrical cycles.
