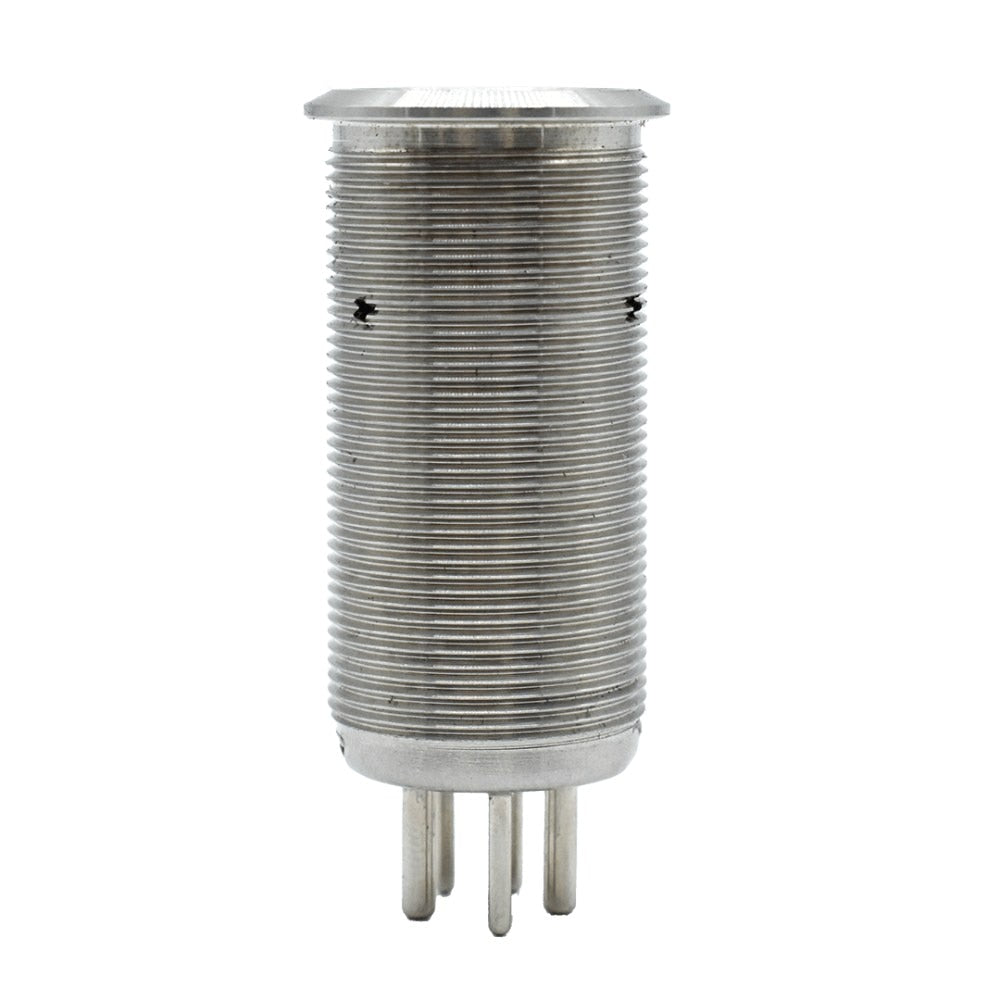

Bluewater Enterprises 9057-1173 19mm Electronic Ground Switch, Latching On/Off

Bluewater 19mm Electronic Ground Switch, Latching On/Off

Bluewater Enterprises 9057-1173 Electronic Ground Switch provides dependable latching On/Off control for circuits that switch on the ground, or negative, side. Designed for marine electrical systems, this compact panel switch combines a low-profile 19mm format with durable materials and sealed construction for reliable service in demanding environments.

The IP69K waterproof housing is built to withstand salt spray, washdowns and temporary submersion, while the SS316 stainless steel bezel and nickel-plated brass construction provide corrosion resistance for boat dashboards, control panels and other exposed installations. The detachable, customizable actuator supports clean integration into new builds and electrical upgrades where installation space is limited.

Installation requires a 19mm mounting hole in material up to approximately 1/4 inch thick. The switch connects with a compatible Bluewater 19mm Deutsch-style harness for fast wiring, simplified servicing and convenient switch replacement. The harness is sold separately. With a rated mechanical life of 50,000 cycles and electrical life of 10,000 cycles, the Bluewater 9057-1173 is well suited for boat builders, marine technicians and DIY electrical projects requiring reliable negative-side switching.

Specifications
Function: Ground, or negative-side, switching with latching On/Off operation
Voltage: 12–24 VDC
Protection Rating: IP69K
Mounting: 19mm hole for panels up to approximately 1/4 inch thick
Material: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style connection compatible with Bluewater 19mm harness 9057-4914
Prop 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features:

• Ground-side switching: Controls the negative side of a 12–24 VDC circuit with latching On/Off operation.
• Compact 19mm design: Low-profile format fits tight dashboards and crowded control panels.
• IP69K waterproof protection: Sealed construction withstands salt spray, washdowns and temporary submersion.
• SS316 stainless steel bezel: Corrosion-resistant construction supports use in harsh marine environments.
• Plug-in installation: Deutsch-style connector enables fast wiring, clean installation and easy switch replacement.
• Durable operation: Rated for up to 50,000 mechanical cycles and 10,000 electrical cycles.
