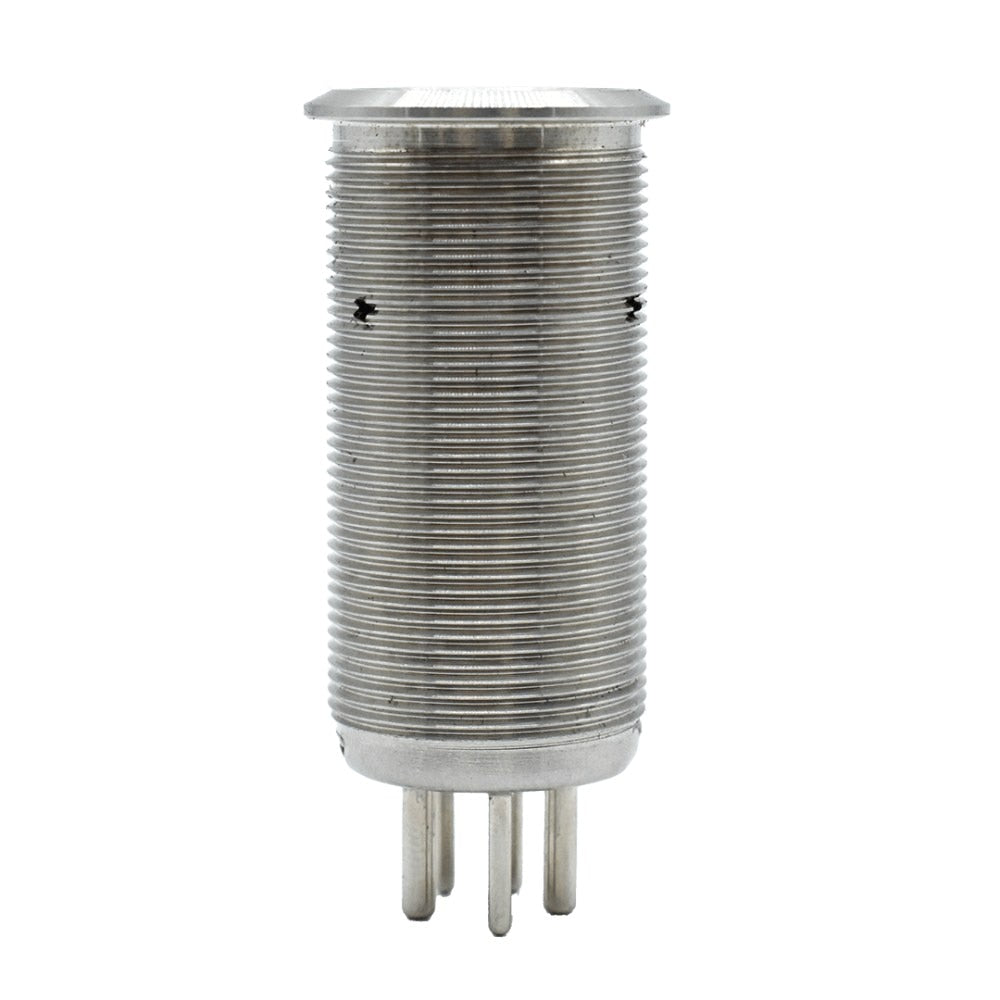

Bluewater Enterprises 9057-2113 19mm Electronic Momentary Push Button Switch with Blue/Red LED

Bluewater 19mm Electronic Push Button Switch, Off-(On) Momentary, Blue/Red LED

Bluewater Enterprises 9057-2113 Electronic Push Button Switch is a compact 19mm off-(on) momentary switch designed for marine dashboards, control panels, horns, spotlights, and other momentary electrical loads. The circuit remains active only while the button is pressed, providing reliable control for applications that require momentary operation. Its soft blue LED backlight changes to bright red when the switch is activated, making operating status easy to identify in low-light conditions.

Built for boat builders, marine technicians, and electrical system upgrades, the Bluewater 9057-2113 combines a low-profile design with durable materials suited to demanding environments. The SS316 stainless steel bezel and nickel-plated brass construction provide corrosion resistance for marine use, while the IP69K protection rating helps defend against high-pressure washdowns, salt spray, moisture, and submersion. The fully detachable and customizable actuator supports clean, professional installations where panel space is limited.

Installation is streamlined with a proprietary Deutsch-style plug-in connector, allowing fast wiring and convenient switch replacement when used with a compatible Bluewater 19mm harness. Mount the switch through a 19mm panel opening in material up to 1/4 inch thick, then connect the harness for a secure installation. The switch is rated for 15 amps at 12 or 24 volts DC, with a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles.

Specifications
Function: Off-(on) momentary
LED indicators: Blue when off and red while pressed
Voltage and current: 15 amps at 12 or 24 volts DC
Protection rating: IP69K
Mounting: 19mm panel opening for panels up to 1/4 inch thick
Materials: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style; compatible 19mm harness sold separately

Features:

• Momentary action: Activates the circuit only while the button is held, making it suitable for horns, spotlights, and other momentary loads.
• Blue/red LED indication: Displays a soft blue backlight when off and changes to bright red while pressed.
• Compact 19mm design: Provides low-profile control for tight dashboards and crowded electrical panels.
• IP69K waterproof protection: Resists high-pressure washdowns, salt spray, moisture, and submersion in demanding marine environments.
• SS316 stainless steel bezel: Offers corrosion-resistant performance for boat and outdoor installations.
• Plug-in installation: Uses a proprietary Deutsch-style connector for fast wiring and convenient switch replacement.
• Durable service life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
