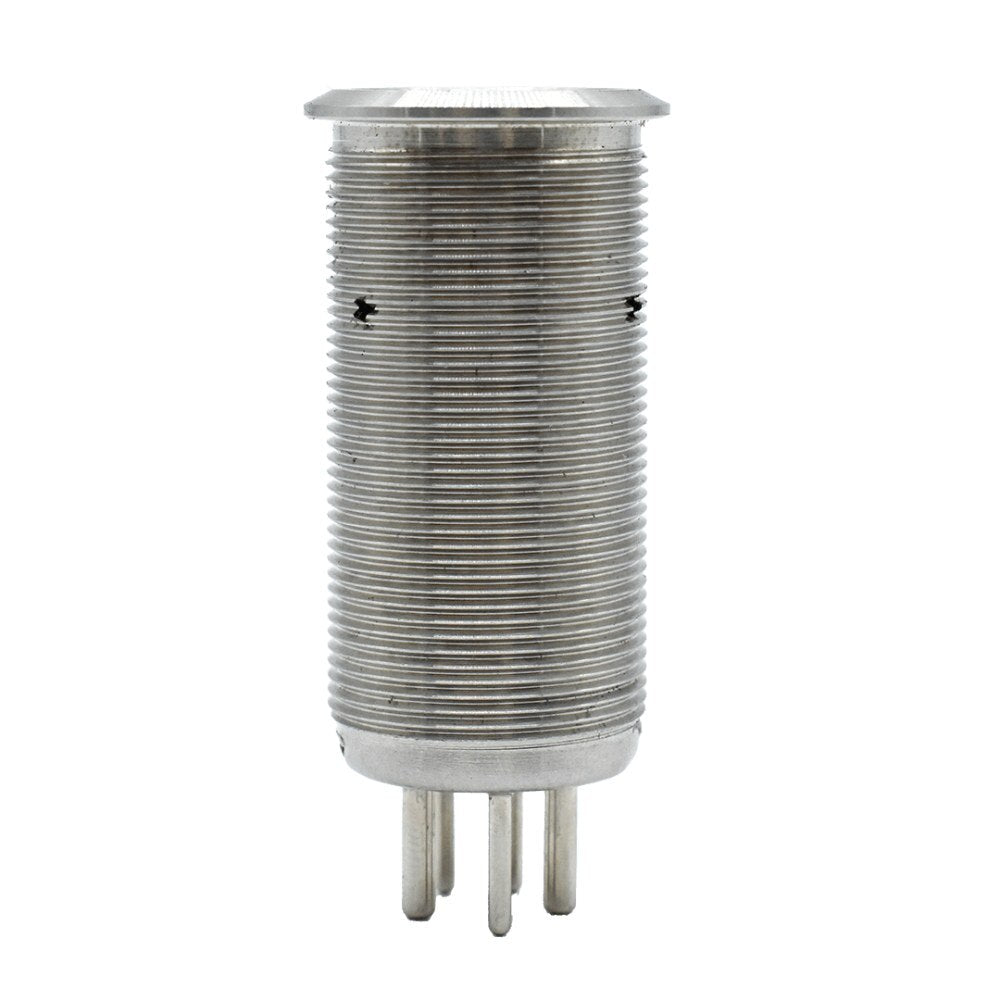

Bluewater Enterprises 9057-2123 19mm Electronic Double Momentary Switch, Off-(On)-(On), Blue/Green/Red LED

Bluewater 19mm Electronic Double Momentary Switch, Off-(On)-(On), Blue/Green/Red LED

Bluewater Enterprises 9057-2123 Electronic Double Momentary Switch combines two momentary outputs in one compact 19mm marine switch. The Off-(On)-(On) configuration is designed for up/down or in/out control applications, including trim tabs, jack plates, windlasses and other marine equipment. Integrated LED indicators provide blue illumination when off, green indication for the first active output and red indication for the second.

Built for boat builders, marine technicians and electrical upgrades in space-limited panels, the Bluewater 9057-2123 features a low-profile design and a fully detachable, customizable actuator. Its IP69K waterproof rating helps protect against salt spray, high-pressure washdowns and submersion, while the SS316 stainless steel bezel and nickel-plated brass construction provide corrosion resistance in demanding marine environments.

Installation is streamlined with the proprietary Deutsch-style plug-in connector, allowing fast, clean wiring and convenient switch replacement. Mount the switch through a 19mm panel opening in material up to 1/4 inch thick, then connect a compatible Bluewater 19mm harness. The harness is sold separately. With a rated mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, this switch is suited for reliable repeated operation in marine control systems.

Specifications
Function: Off-(On)-(On) double momentary, dual channel
LED Indicators: Blue off, green first output active, red second output active
Voltage and Current: 7.5 amps per channel at 12 or 24 volts DC
Protection Rating: IP69K
Mounting: 19mm opening for panels up to 1/4 inch thick
Material: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style, compatible with Bluewater 19mm harness 9057-4914

Features:

• Double momentary operation: Provides two momentary outputs in one switch for up/down or in/out control.
• Compact 19mm design: Fits tight dashboards and crowded marine control panels.
• IP69K waterproof protection: Sealed to withstand salt spray, high-pressure washdowns and submersion.
• SS316 stainless steel bezel: Provides corrosion-resistant performance in harsh marine environments.
• LED status indicators: Blue illumination when off, green for the first active output and red for the second.
• Plug-in installation: Deutsch-style connector supports fast wiring and easy switch replacement.
• Durable service life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
• Marine control compatibility: Suitable for trim tabs, jack plates, windlasses and similar equipment.
