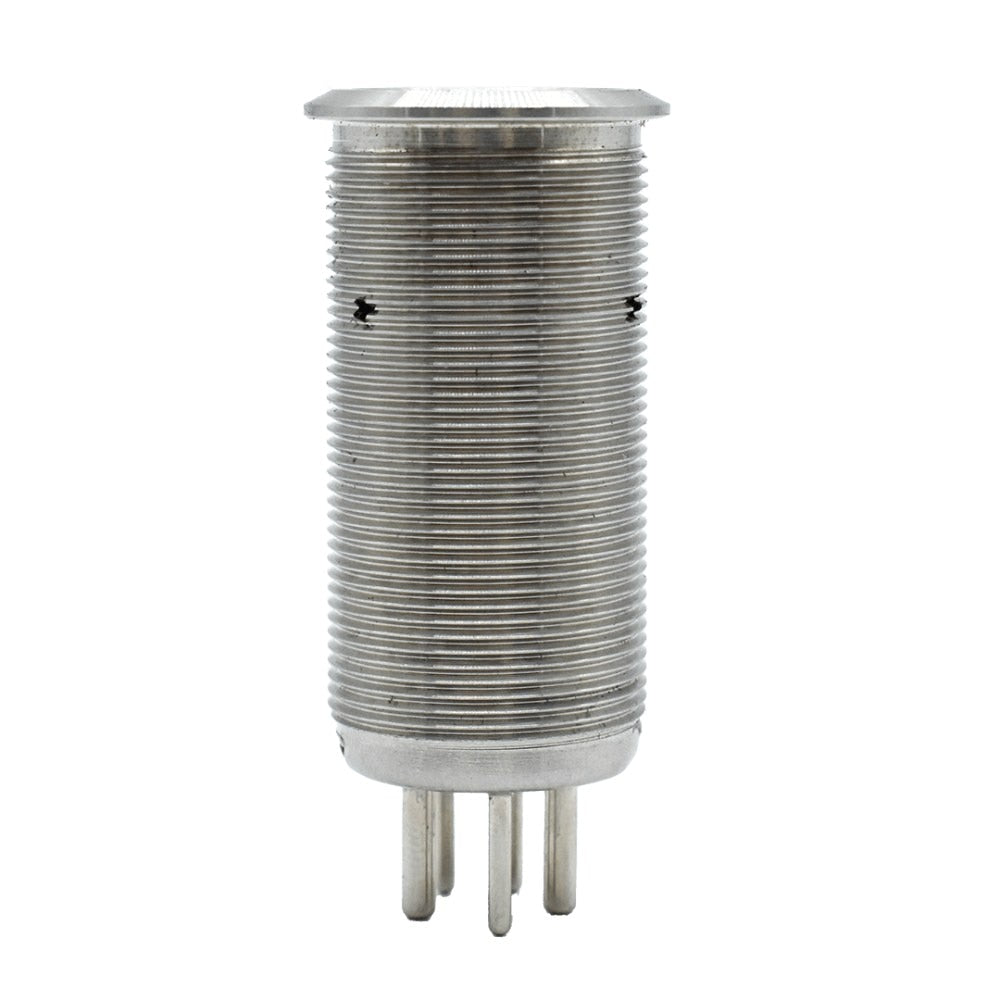

Bluewater Enterprises 9057-2223 19mm Electronic Double Momentary Switch with Green, Blue and Red LED

Bluewater 19mm Electronic Double Momentary Switch, Off-(On)-(On), Green/Blue/Red LED

Bluewater Enterprises 9057-2223 Electronic Double Momentary Switch provides two momentary outputs in one compact 19mm marine switch. Its Off-(On)-(On) configuration is suitable for directional control applications such as trim tabs, jack plates, windlasses and other systems requiring up/down or in/out operation. Green, blue and red LED indicators provide clear visual feedback for switch status and active output selection.

Designed for boat builders, marine technicians and electrical upgrades in space-limited panels, the Bluewater 9057-2223 features a low-profile design and a fully detachable, customizable actuator. The SS316 stainless steel bezel and nickel-plated brass construction provide corrosion resistance for demanding marine environments. With IP69K protection, the switch is sealed against salt spray, high-pressure washdowns and temporary submersion.

Installation is streamlined with a proprietary Deutsch-style plug-in connector, allowing clean wiring and convenient switch replacement when used with the compatible Bluewater 19mm harness. The switch mounts through a 19mm panel opening in material up to 1/4 inch thick and supports 7.5 amps per channel at 12 or 24 volts DC. The mechanical life is rated for 50,000 cycles, while the electrical life is rated for 10,000 cycles.

Specifications
Function: Off-(On)-(On) double momentary, dual channel
LED Indicators: Green off, blue first output active, red second output active
Protection Rating: IP69K
Construction: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style plug-in connector; compatible harness sold separately
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features:

• Dual momentary control: Combines two momentary outputs in one switch for trim tabs, jack plates, windlasses and similar directional systems.
• Compact 19mm design: Fits tight dashboards and crowded marine control panels.
• IP69K waterproof protection: Resists salt spray, high-pressure washdowns and temporary submersion.
• SS316 stainless bezel: Provides corrosion-resistant performance in harsh marine environments.
• LED status indication: Green, blue and red illumination identifies switch status and active output.
• Plug-in installation: Uses a proprietary Deutsch-style connector for clean wiring and easy switch replacement.
• Electrical capacity: Rated at 7.5 amps per channel at 12 or 24 volts DC.
• Durable operation: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
