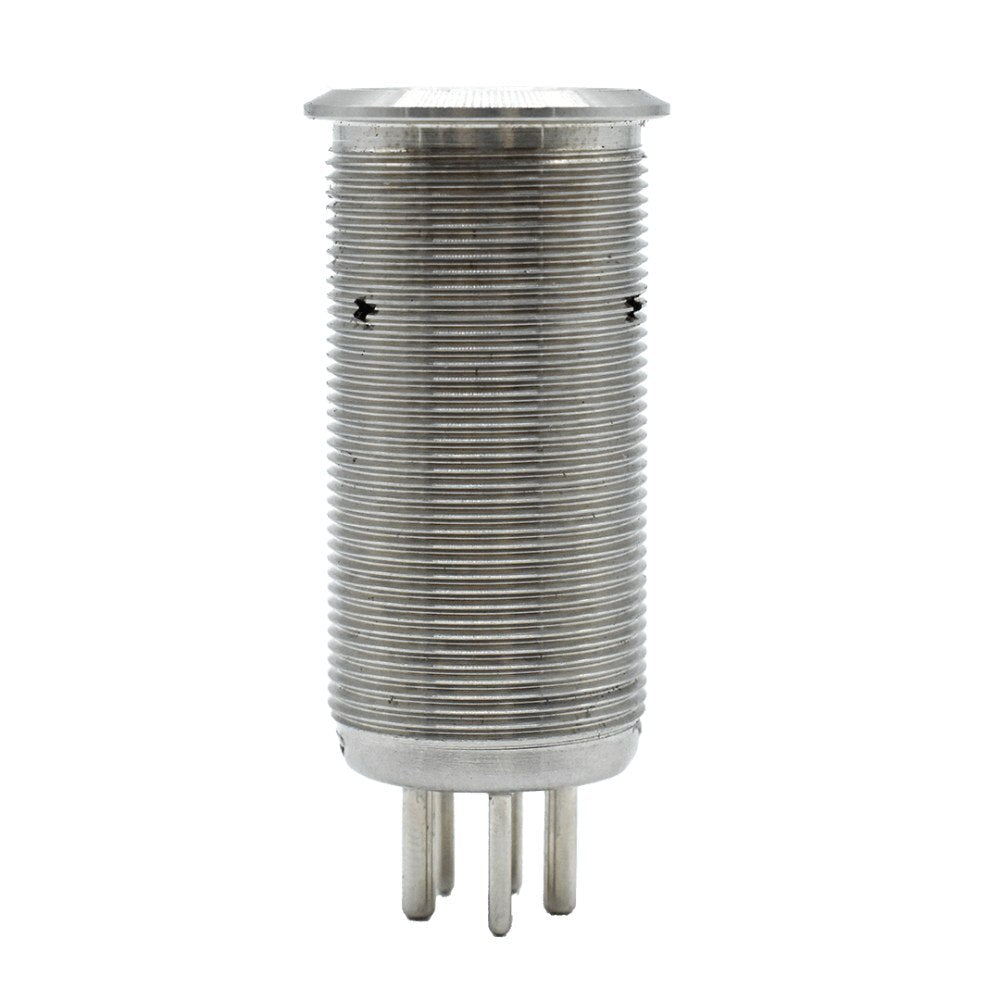

Bluewater Enterprises 9057-3114 19mm Electronic Nav/Anchor Light Switch with Blue, Green and Red LED

Bluewater 19mm Electronic Nav/Anchor Light Switch, Blue/Green/Red LED

Bluewater Enterprises 9057-3114 Electronic Nav/Anchor Light Switch provides convenient control of navigation and anchor lighting through a compact 19mm push-button design. Press once to turn on both navigation and anchor lights, press again to operate the anchor light only, and press a third time to turn both functions off. Integrated blue, green and red LED indicators provide clear operating status at a glance.

Designed for marine dashboards, helm panels and electrical upgrades where installation space is limited, this Bluewater switch features a low-profile housing and a customizable, fully detachable actuator. The IP69K-rated sealed construction helps protect against salt spray, heavy washdowns and submersion, while the SS316 stainless steel bezel and nickel-plated brass components provide dependable corrosion resistance in demanding marine environments.

Installation is streamlined with the proprietary Deutsch-style plug-in connector, allowing fast, clean wiring and simplified switch replacement. Mount the switch in a suitable panel opening and connect it to a compatible Bluewater 19mm harness, sold separately. The switch supports 7.5 amps per channel at 12–24 volts DC and is rated for up to 50,000 mechanical cycles and 10,000 electrical cycles.

Specifications
Function: Off, navigation plus anchor, or anchor only
LED Indicators: Blue when off, green for navigation plus anchor, and red for anchor only
Voltage/Current: 7.5 amps per channel at 12–24 volts DC
Protection Rating: IP69K
Mounting: 19mm panel opening for panels up to approximately 1/4 inch thick
Material: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style connector; Bluewater 9057-4914 harness sold separately

Features:

• Nav/Anchor Control: Cycles between navigation plus anchor lights, anchor light only, and off with successive presses.
• LED Status Indicators: Blue indicates off, green indicates navigation and anchor operation, and red indicates anchor-only operation.
• Compact 19mm Design: Low-profile format fits tight dashboards and crowded marine control panels.
• IP69K Waterproof Protection: Sealed construction withstands salt spray, washdowns and submersion.
• SS316 Stainless Bezel: Corrosion-resistant materials are suited for harsh marine environments.
• Plug-In Installation: Deutsch-style connector supports fast wiring and easy switch replacement.
• Electrical Rating: Handles 7.5 amps per channel at 12–24 volts DC.
• Long Service Life: Rated for up to 50,000 mechanical cycles and 10,000 electrical cycles.
