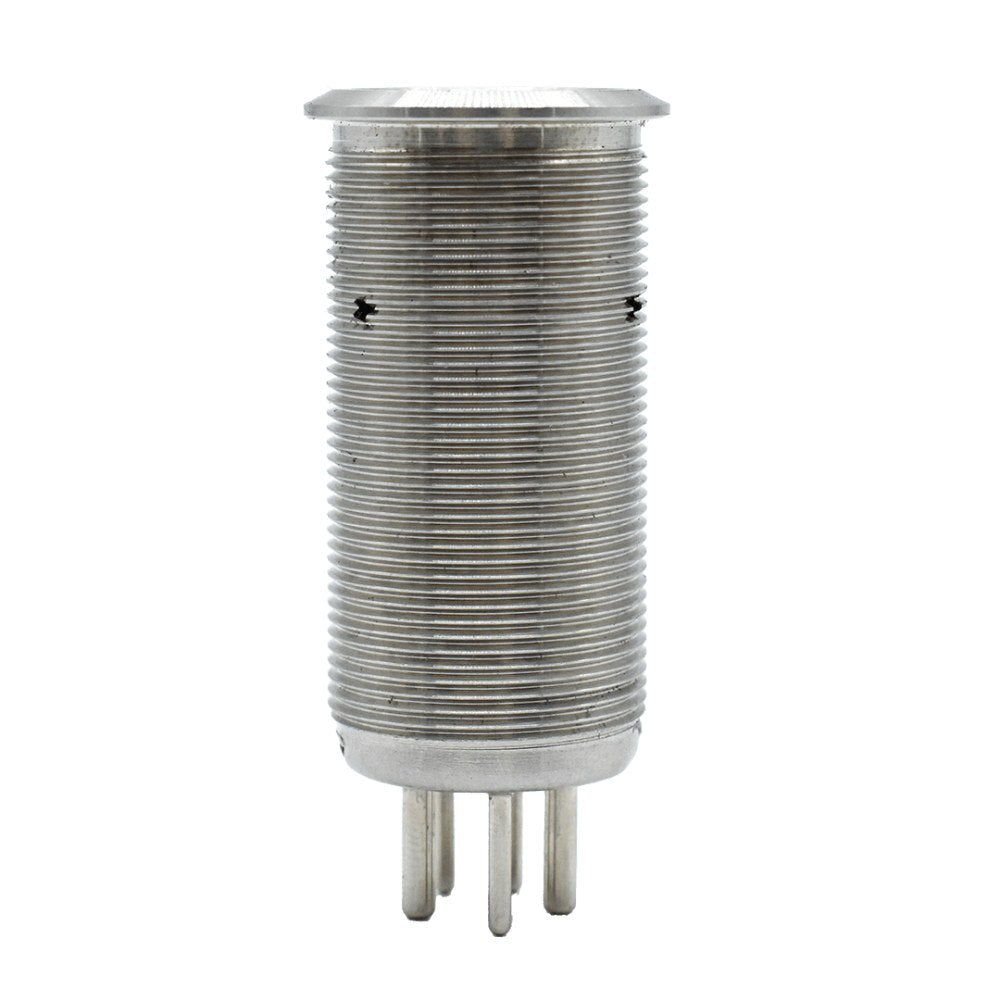

Bluewater Enterprises 9057-3116 19mm Electronic 80W PWM Dimmer Switch with Blue/Red LED

Bluewater 19mm Electronic 80W PWM Dimmer Switch, Blue/Red LED

Bluewater Enterprises 9057-3116 19mm Electronic PWM Dimmer Switch provides reliable push-button control for marine cabin, cockpit, navigation, and accent lighting. Designed for systems up to 80 watts, this compact dimmer allows you to press and hold the button to brighten, press and hold again to dim, or press once to turn the connected lights off. The blue indicator illuminates when the switch is off, while the red indicator shows when the lights are on.

Built for boat builders, marine technicians, and electrical upgrades where panel space is limited, the Bluewater 9057-3116 features a low-profile 19mm design and a fully detachable, customizable actuator. Its IP69K-rated construction helps protect against salt spray, washdowns, and submersion, while the SS316 stainless steel bezel and nickel-plated brass construction provide dependable corrosion resistance in demanding marine environments. The switch is engineered for long service life, with durable mechanical and electrical cycle ratings.

Installation is streamlined with the proprietary Deutsch-style plug-in connection, allowing fast wiring, clean panel integration, and convenient switch replacement. Mount the dimmer through a 19mm panel opening in material up to 1/4 inch thick, then connect it to a compatible Bluewater 19mm harness. The 9057-4914 harness is sold separately. This Bluewater Enterprises PWM dimmer is a practical solution for controlling low-voltage marine lighting in compact dashboards and crowded electrical panels.

Specifications
Function: PWM dimmer
LED Indicators: Blue when off, red when on
Maximum Load: 80 watts
Protection Rating: IP69K
Mounting: 19mm panel opening for panels up to 1/4 inch thick
Materials: Nickel-plated brass and SS316 stainless steel
Mechanical Life: 50,000 cycles
Electrical Life: 10,000 cycles
Connector: Deutsch-style; compatible 19mm harness sold separately

Features:

• Push-button PWM dimming with press-and-hold brightness control and single-press shutoff
• 80-watt maximum load for marine cabin, cockpit, and accent lighting
• Compact 19mm design for tight dashboards and crowded electrical panels
• IP69K waterproof protection for salt spray, washdowns, and submersion
• SS316 stainless steel bezel and nickel-plated brass construction for corrosion resistance
• Blue LED indicator when off and red LED indicator when the lights are on
• Plug-in Deutsch-style connector for clean installation and convenient switch replacement
• Detachable, customizable actuator with durable mechanical and electrical service life
