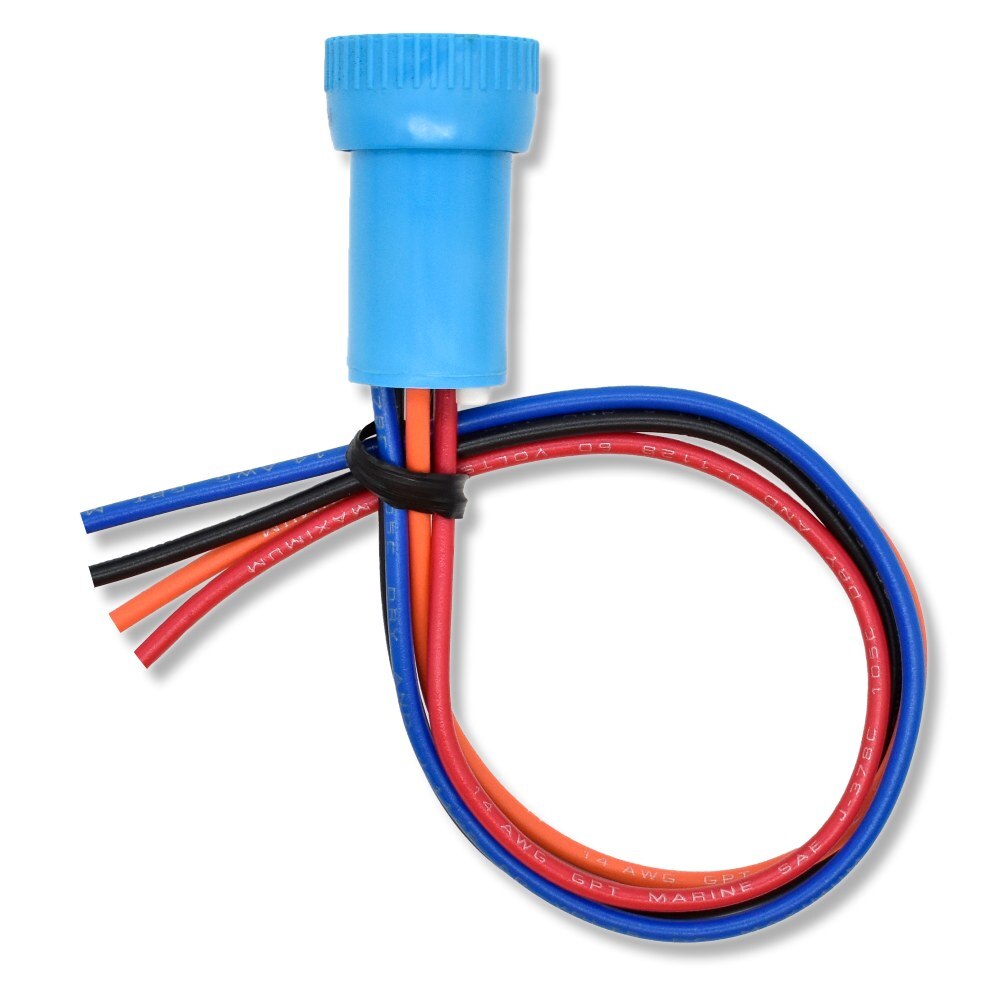

Bluewater Enterprises 9057-4914-148 19mm Deutsch Switch Harness, Single Output, 48-Inch Leads

Bluewater 19mm Deutsch Switch Harness, 1 Output, 48" Leads

Bluewater Enterprises 9057-4914-148 19mm Deutsch Switch Harness

Connect a Bluewater 19mm electronic switch to a load circuit with this pre-wired Deutsch-style switch harness. The plug-and-play design simplifies installation by eliminating the need for field crimping, while the color-coded leads make it easier to identify input, output, ground, and LED connections. With a single output and a four-wire configuration, this harness is suited for streamlined control-panel wiring.

The IP69K-sealed connector helps protect the connection from dust, water, and corrosion, including demanding environments where equipment may be exposed to moisture or temporary submersion. A dummy plug is included for the unused port, helping maintain a sealed connection. The quick-swap design also allows a compatible switch to be replaced without untangling or disturbing the surrounding panel wiring.

Designed for marine, off-road, vehicle, and industrial installations, the Bluewater Enterprises 9057-4914-148 harness provides a secure connection in applications subject to vibration, moisture, and corrosion. It includes 48-inch pre-wired leads and is compatible with Bluewater 9057 Series 19mm switches. The harness includes three DT-style and two DTP-style female terminals, with color-coded wiring for input, output, ground, and LED functions.

Specifications
Switch Size: 19mm, 9057 Series
Lead Length: 48 inches
Connector: Deutsch-style, IP69K sealed
Terminals: Three DT-style and two DTP-style female terminals
Wiring: Color-coded input, output, ground, and LED leads
Outputs: One, four-wire configuration

Features:

• Plug-and-Play: Pre-wired Deutsch-style harness connects Bluewater 19mm switches to load circuits without crimping.
• Single Output: Four-wire configuration includes a dummy plug for the unused port.
• IP69K Sealed: Helps protect the connector from dust, water, corrosion, and demanding wet conditions.
• Color-Coded Leads: Identifies input, output, ground, and LED wires for simpler installation.
• Quick Swap: Allows switch replacement without untangling surrounding panel wiring.
• Versatile Use: Suitable for marine, off-road, vehicle, and industrial applications.
