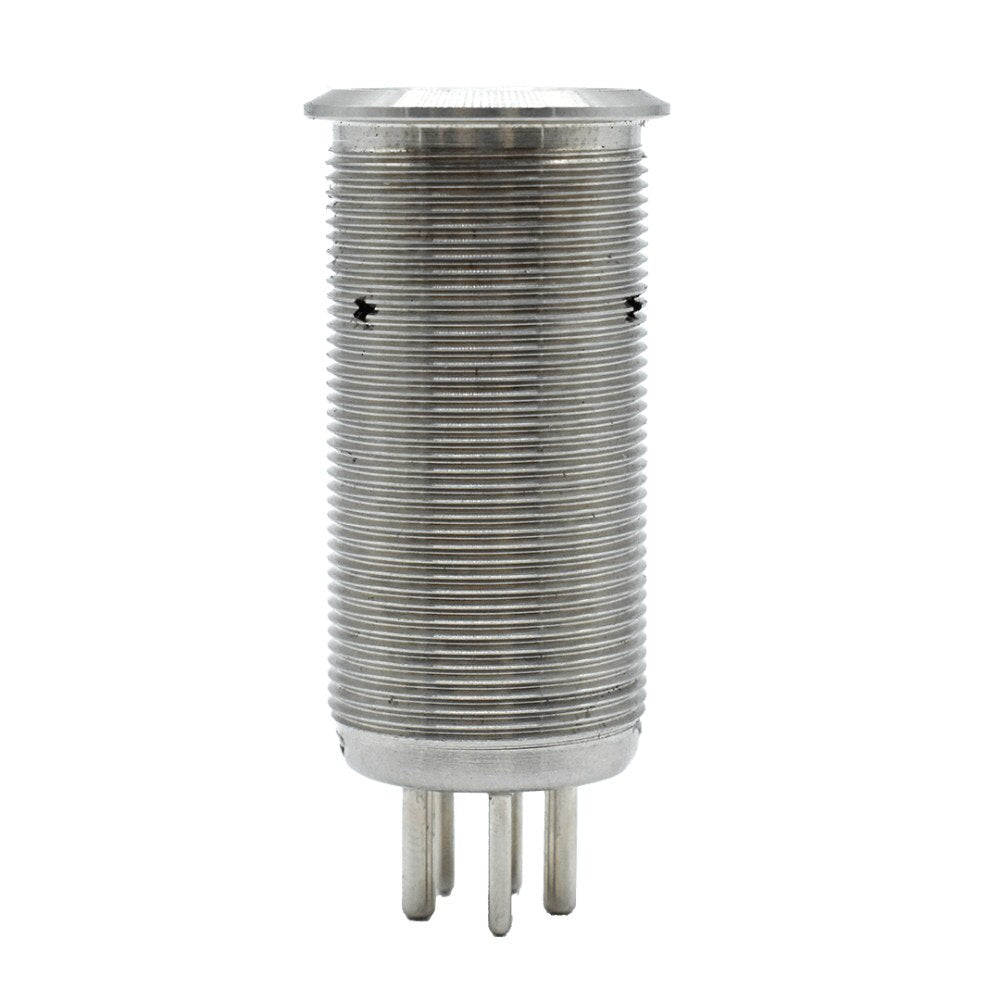

Bluewater Enterprises 9059-1113-10 22mm Electronic Off/On Inrush Switch with Blue/Red LED

Bluewater 22mm Electronic Inrush Switch, Off/On, Bright Blue/Red LED

Bluewater Enterprises 9059-1113-10 Electronic Inrush Switch provides dependable latching Off/On control for marine pumps, motors, and other demanding 12V or 24V DC applications. Designed for a 22mm mounting hole, this push-button switch turns the circuit on with one press and off with a second press. Its bright blue backlight improves visibility in low-light conditions and changes to bright red when the circuit is energized.

Built-in inrush protection handles surges up to 120A for 120 seconds, helping pumps and motors start reliably while reducing nuisance trips. The sealed IP69K construction is designed to withstand salt spray, washdowns, and temporary submersion. A nickel-plated brass and SS316 stainless steel body provides durable corrosion resistance for demanding marine environments, while 20g shock resistance supports dependable performance in applications subject to vibration and impact.

Installation is streamlined with the proprietary Deutsch-style connector. Drill the appropriate 22mm mounting hole and connect the switch using a compatible Bluewater 22mm harness, such as the 9053-3914 harness sold separately. The switch is rated for 20A at 12–24VDC and is suitable for installations requiring a compact, sealed, illuminated control. It is rated for up to 50,000 mechanical cycles and 10,000 electrical cycles.

Specifications
Function: Latching Off/On
LED indicators: Blue when off and bright red when on
Voltage and current: 20A at 12–24VDC
Inrush rating: 120A for 120 seconds
Protection rating: IP69K
Materials: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style, compatible with Bluewater 22mm harness 9053-3914

Features:

• Latching Off/On control: Press once to turn the circuit on and press again to turn it off.
• Blue/red LED indicator: Provides bright blue backlighting when off and changes to bright red when the circuit is on.
• Inrush protection: Handles surges up to 120A for 120 seconds to support reliable pump and motor startup.
• IP69K waterproof construction: Sealed design resists salt spray, washdowns, and submersion.
• Marine-grade materials: Nickel-plated brass and SS316 stainless steel construction provides corrosion resistance.
• Plug-in installation: Deutsch-style connector supports fast wiring and convenient switch replacement.
• High cycle life: Rated for up to 50,000 mechanical cycles and 10,000 electrical cycles.
