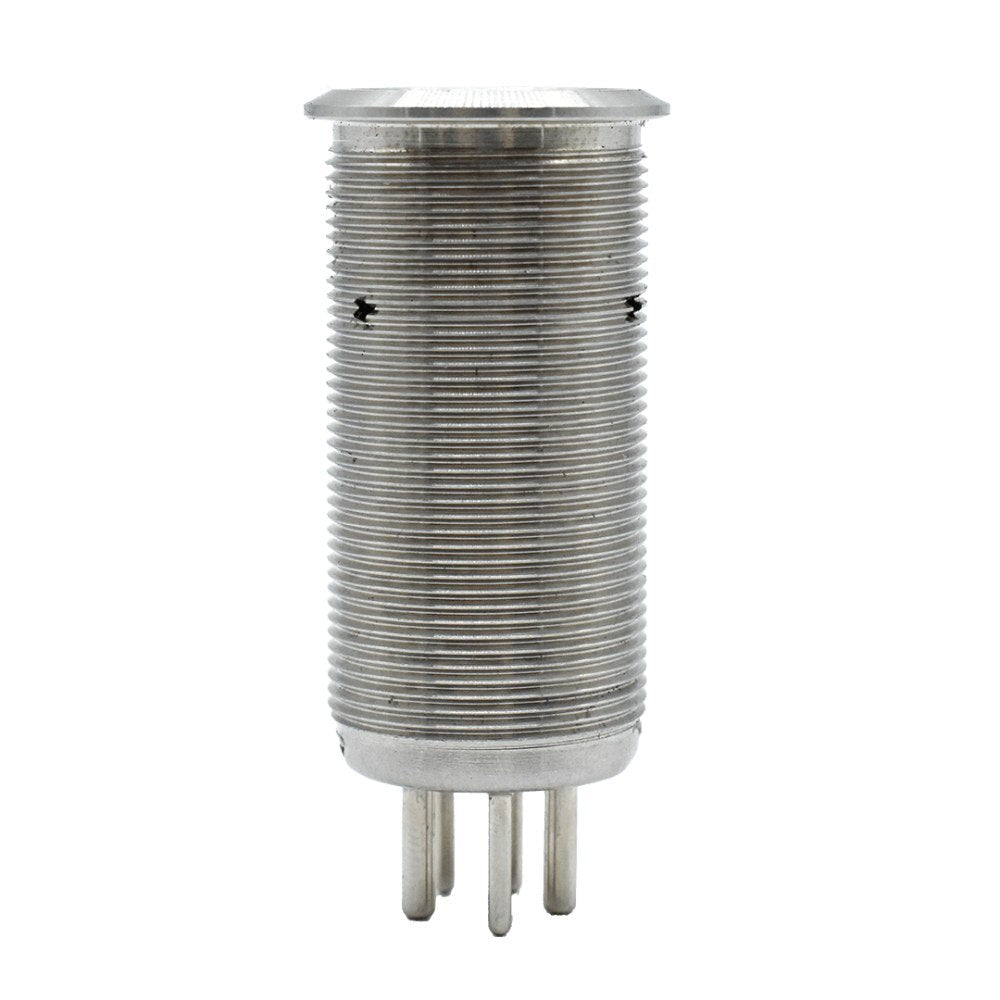

Bluewater Enterprises 9059-1555 22mm Electronic Timer Switch with 1-Minute Cycle Timer

Bluewater 22mm Electronic Timer Switch, On/Off with 1-Minute Cycle Timer

Bluewater Enterprises 9059-1555 22mm Electronic Timer Switch provides dependable on/off control and an automatic repeating cycle timer for marine pumps, motors, livewells, and baitwells. Use it as a standard switch or activate the timer mode to run a connected load for 1 minute, followed by 2 minutes off. Press the switch again to cancel the timer cycle. Integrated LED indicators use blue, red, green, and yellow colors to identify the active operating mode.

Designed for demanding marine environments, this Bluewater 9059-1555 switch features an IP69K-rated sealed SS316 stainless steel body that resists salt spray, washdowns, and submersion. Nickel-plated brass construction and tested resistance to 20g shock provide reliable performance in challenging conditions. Inrush protection supports surges up to 120A for 120 seconds, helping pumps and motors start without nuisance trips. The switch is rated for loads up to 20A at 12 or 24VDC.

Installation is fast and clean with the proprietary Deutsch-style connector. Drill a 22mm mounting hole, install the switch, and connect a compatible Bluewater 22mm harness. The plug-in design simplifies wiring and makes future switch replacement easier. With a rated mechanical life of 50,000 cycles and electrical life of 10,000 cycles, the 9059-1555 is built for consistent, long-term service in marine control applications.

Specifications
Function: On/off control with a repeating 1-minute on and 2-minute off timer
LED Indicators: Blue, red, green, and yellow mode indicators
Voltage and Current: 20A at 12 or 24VDC
Inrush Rating: 120A for 120 seconds
Protection Rating: IP69K
Materials: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style connector for a compatible Bluewater 22mm harness
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features:

• Two operating modes: Use as a standard on/off switch or a repeating cycle timer.
• Automatic cycle timing: Runs the load for 1 minute, turns it off for 2 minutes, and repeats.
• Marine-rated construction: IP69K sealing and SS316 stainless steel resist salt spray, washdowns, and submersion.
• Inrush protection: Handles surges up to 120A for 120 seconds to support reliable motor and pump startup.
• High-current capability: Supports loads up to 20A at 12 or 24VDC.
• LED mode indicators: Blue, red, green, and yellow illumination identifies the active function.
• Plug-in installation: Deutsch-style connector provides fast wiring and simplified switch replacement.
• Durable service life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
