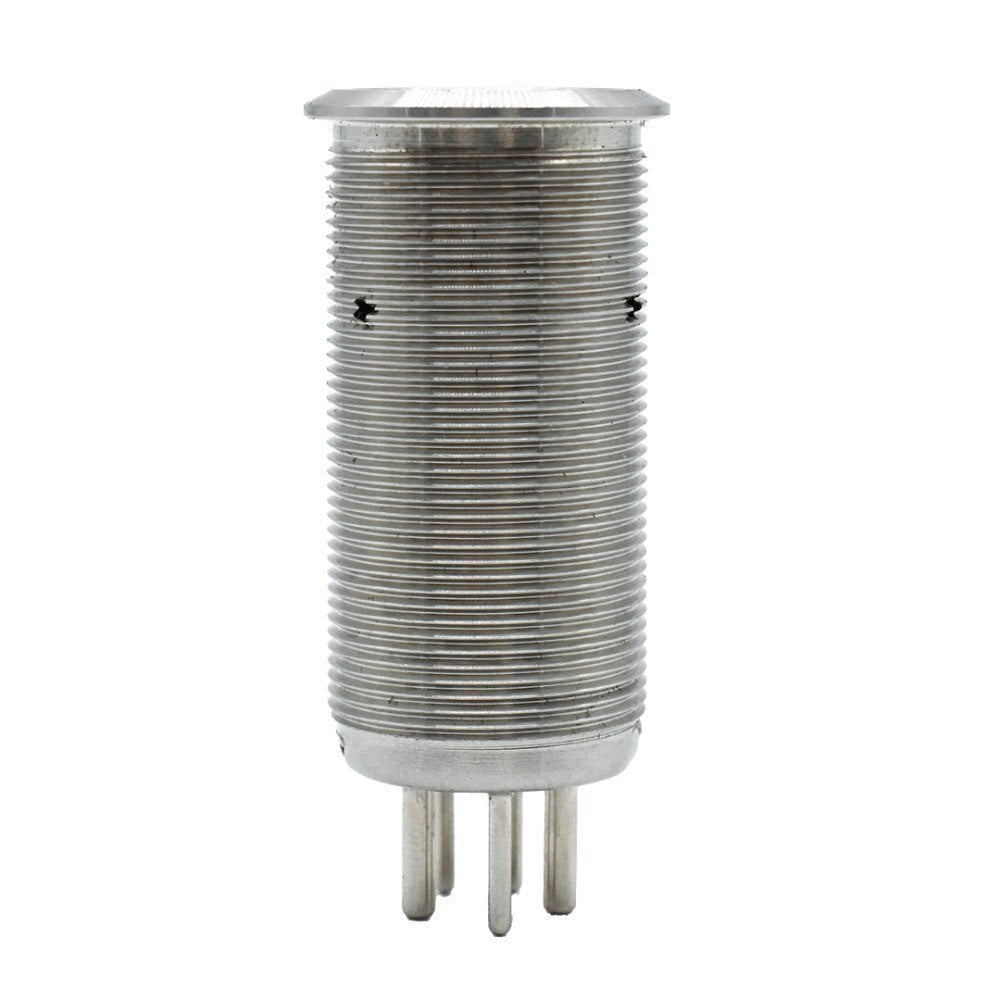

Bluewater Enterprises 9059-1555-2F 22mm Electronic Timer Switch with 2-Minute Auto-Off

Bluewater 22mm Electronic Timer Switch, 2-Minute Auto-Off

Bluewater Enterprises 9059-1555-2F Electronic Timer Switch provides dependable timed control for marine pumps, blowers, courtesy lights, and other 12- or 24-volt DC loads. Press the switch once to activate the connected load, and the built-in timer automatically shuts it off after 2 minutes. Press the switch again during the countdown for immediate shut-off, helping prevent equipment from being left running.

Designed for demanding marine environments, the 9059-1555-2F features an IP69K-rated sealed housing that resists salt spray, high-pressure washdowns, and submersion. Its SS316 stainless steel and nickel-plated brass construction supports long-term durability, while 20g shock resistance helps the switch perform reliably in applications subject to vibration and impact. The switch also provides inrush protection for motor-driven loads, handling surges up to 120A for 120 seconds to help reduce nuisance trips during startup.

A blue LED indicates the load is off, while a red LED shows that the timer is active. Installation is streamlined with a proprietary Deutsch-style connector for fast wiring and convenient switch replacement. Mount the switch through the required panel opening and connect it to a compatible Bluewater 22mm harness. The harness is sold separately.

Specifications
Timed on operation with automatic shut-off after 2 minutes; 20A switching capacity at 12 or 24VDC; 120A inrush rating for 120 seconds; IP69K protection; 50,000-cycle mechanical life; 10,000-cycle electrical life; blue off and red on LED indicators. This product carries a California Proposition 65 warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features:

• 2-Minute Auto-Off Timer: Activates the load with one press and automatically shuts it off after 2 minutes.
• Early Shut-Off: Press the switch again during the countdown to turn the load off immediately.
• Inrush Protection: Handles startup surges up to 120A for 120 seconds to support pumps and motors.
• IP69K Waterproof Construction: Sealed SS316 stainless steel and nickel-plated brass housing withstands salt spray, washdowns, and submersion.
• LED Status Indicators: Blue indicates the load is off, while red indicates that the timer is running.
• Plug-In Installation: Deutsch-style connector supports clean wiring and convenient switch replacement.
• Marine-Ready Performance: Designed for demanding marine loads with shock resistance and durable construction.
