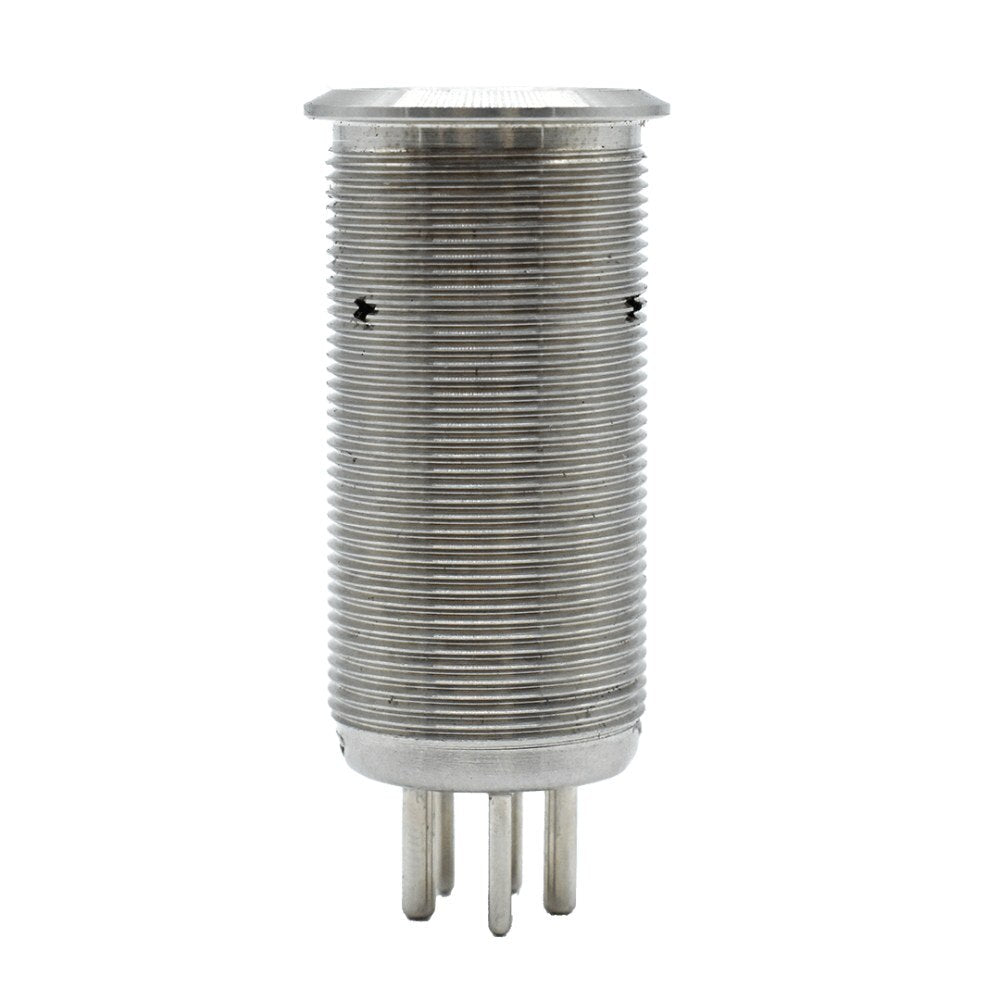

Bluewater Enterprises 9059-2113 22mm Electronic Inrush Switch, Off-(On) Momentary, Blue/Red LED

Bluewater 22mm Electronic Inrush Switch, Off-(On) Momentary, Bright Blue/Red LED

Bluewater Enterprises 9059-2113 Electronic Inrush Switch is a 22mm momentary push-button switch designed for demanding marine and vehicle applications. The Off-(On) configuration keeps the circuit active only while the button is held, making it well suited for horns, spotlights, pumps, motors, and other momentary loads. A blue LED provides clear visibility when the switch is off, while the indicator changes to bright red during operation.

Built for high-demand electrical systems, the Bluewater 9059-2113 supports loads up to 20 amps at 12 or 24 volts DC and handles inrush surges up to 120 amps for 120 seconds. This helps pumps and motors start reliably while reducing nuisance trips. The sealed IP69K construction, nickel-plated brass components, and SS316 stainless steel body provide strong resistance to water, salt spray, washdowns, shock, and harsh marine environments.

Installation is streamlined with a proprietary Deutsch-style plug-in connector, allowing fast, clean wiring and convenient switch replacement when used with the compatible Bluewater 22mm harness. The switch installs in a 22mm mounting opening and is designed for long service life, with a rated mechanical life of 50,000 cycles and electrical life of 10,000 cycles. The Bluewater Enterprises 9059-2113 combines illuminated control, inrush protection, and rugged environmental sealing in a compact momentary switch.

Specifications
Function: Off-(On) momentary
LED Indicators: Blue when off; red while pressed
Voltage and Current: 20 amps at 12 or 24 volts DC
Inrush Rating: 120 amps for 120 seconds
Protection Rating: IP69K
Material: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style; compatible 22mm harness sold separately

Features:

• Momentary Action: Circuit remains on only while the button is held, making it suitable for horns, spotlights, pumps, and other momentary loads.
• Blue/Red LED Indicator: Blue backlighting provides visibility when off and changes to bright red while the switch is pressed.
• Inrush Protection: Handles surges up to 120 amps for 120 seconds to support reliable starting of pumps and motors.
• IP69K Waterproof Construction: Sealed SS316 stainless steel and nickel-plated brass construction withstands salt spray, washdowns, shock, and submersion.
• Plug-In Installation: Deutsch-style connector supports fast, clean wiring and easy switch replacement.
• Long Service Life: Rated for up to 50,000 mechanical cycles and 10,000 electrical cycles.
