SKU:BWE90592118

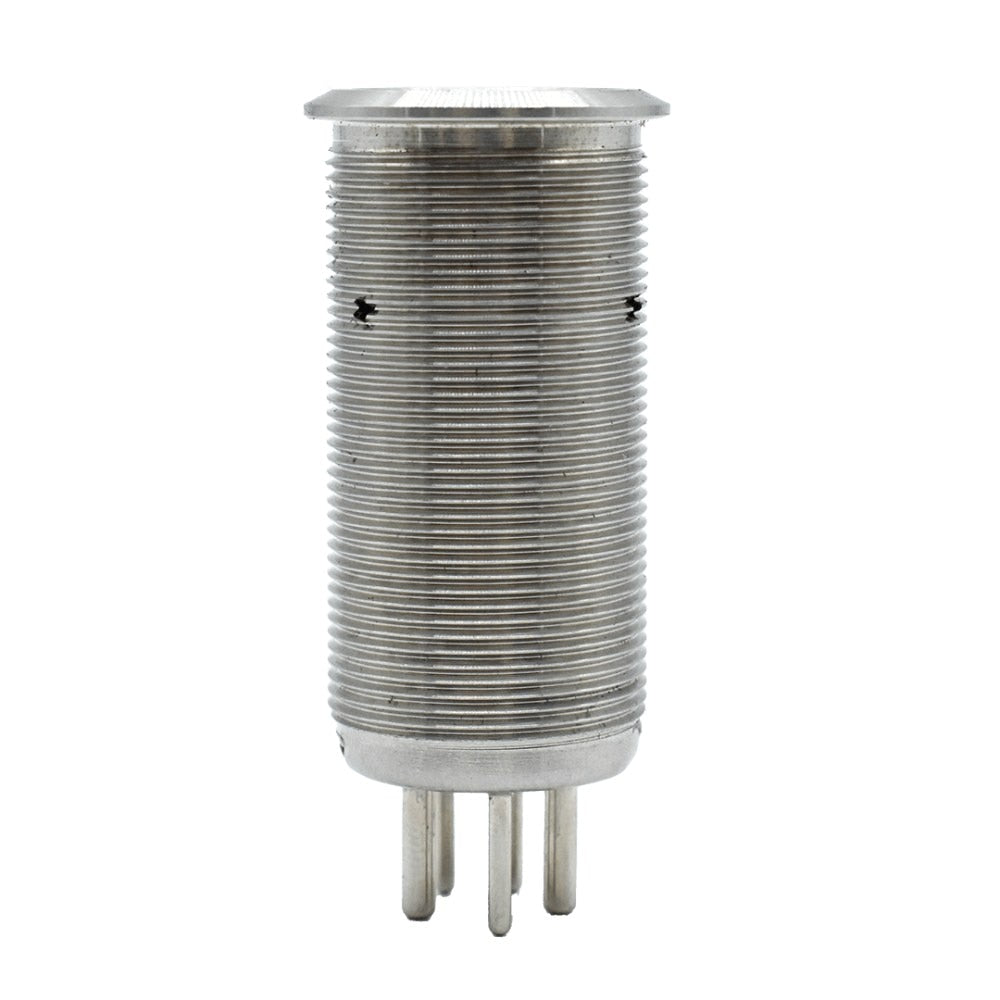

Bluewater Enterprises 9059-2118 22mm Momentary Signal Switch
The Bluewater Enterprises 9059-2118 is a low-current, momentary dry-contact signal switch designed for digital switching systems, including POCO, CZone, and Garmin EmpirBus. It sends a signal-level input to the control system rather than switching a load directly. Press and hold the switch to close the contacts, then release it to open them.
Independent DayBright blue and red LEDs provide clear status and illumination. The blue LED connects to panel backlighting, while the red LED indicates when the virtual switch is active. When both LEDs are illuminated, they create a purple appearance. The sealed SS316 stainless steel body and IP69K protection rating help the switch withstand salt spray, washdowns, and submersion in demanding marine environments.
Installation is streamlined with the proprietary Deutsch-style connector, allowing quick wiring and convenient switch replacement. Mount the switch through a 22mm opening and connect it to a compatible Bluewater 22mm harness. This unit is intended for signal-level applications only, supports systems up to 30VDC and signals under 240mA, and does not include built-in circuit protection. Do not use it to switch electrical loads directly.
Specifications
Function: Off-(On) momentary, dry contact
Signal Current: Low-current signals under 240mA
Voltage: Up to 30VDC
LED Indicators: Independent blue and red DayBright LEDs
Protection Rating: IP69K
Material: Nickel-plated brass and SS316 stainless steel
Connector: Deutsch-style connector
Features:
